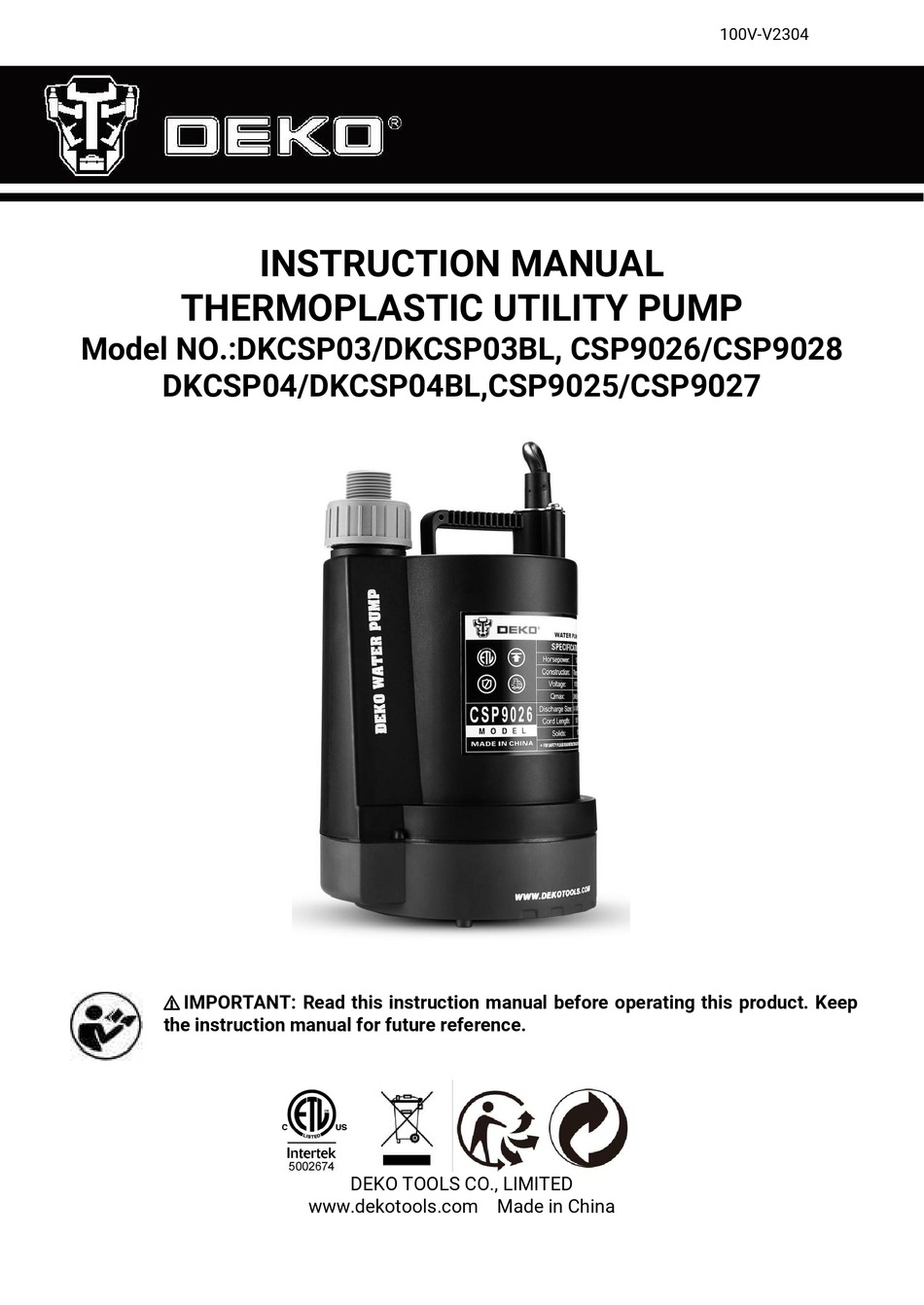

100V-V2304
INSTRUCTION MANUAL
THERMOPLASTIC UTILITY PUMP
Model NO.:DKCSP03/DKCSP03BL, CSP9026/CSP9028
DKCSP04/DKCSP04BL,CSP9025/CSP9027
⚠ IMPORTANT: Read this instruction manual before operating this product. Keep
the instruction manual for future reference.
DEKO TOOLS CO., LIMITED
www.dekotools.com Made in China
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for DeKo DKCSP03
- Page 1 100V-V2304 INSTRUCTION MANUAL THERMOPLASTIC UTILITY PUMP Model NO.:DKCSP03/DKCSP03BL, CSP9026/CSP9028 DKCSP04/DKCSP04BL,CSP9025/CSP9027 ⚠ IMPORTANT: Read this instruction manual before operating this product. Keep the instruction manual for future reference. DEKO TOOLS CO., LIMITED www.dekotools.com Made in China...
-
Page 2: General Tool Safety Warnings
General Tool Safety Warnings Read all safety warnings and all instructions. Failure to follow all warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. For safety reasons, people who are not familiar with these operating instructions should not use this Submersible Pump. -
Page 3: Parts Description
Parts Description 1. Power cable 2. Handle Output hose fitting ( GHT 3/4", NPT 1-1/4" From up to down) Pump base Specifications Model DKCSP03/DKCSP03BL DKCSP04/DKCSP04BL CSP9026/CSP9028 CSP9025/CSP9027 Rated Voltage 100-120V~50/60Hz 100-120V~50/60Hz Power 1/3HP 1/4HP Amps 3.5 Amp 3 Amp Q.max (Max. Flow Rate) -
Page 4: Operation
Assembly Hose Connection The output hose fitting and adapter allows connection of GHT 3/4", NPT 1-1/4" hose (From Up to Down), depending on your individual requirement or applications. Remark: the comming fitting/adapter may vary according to different countries or markets. Please refer to the package, sales details or your dealer. -
Page 5: Maintenance
Air Lock When a pump airlocks, it runs but does not move any water. An airlock will cause the pump to overheat and fail. This pump has an air discharge hole to prevent airlock. If you suspect an airlock, unplug the pump, clean out the anti-air lock hole Air discharge hole with a paper clip or piece of wire, and restart the pump. -
Page 6: Service Information
Frozen discharge Allow hose/pipe to thaw hose/pipe Clean out airlock hole with a Pump is air locked paper clip or pipe cleaner Check wire size Low line voltage increase if necessary Inspect for wear, damage or Worn, damaged or clogged clog and clean or replace if pump parts necessary... - Page 7 DEKO TOOLS CO., LIMITED www.dekotools.com Made in China...
