Summary of Contents for Stream HYDROBOX 900

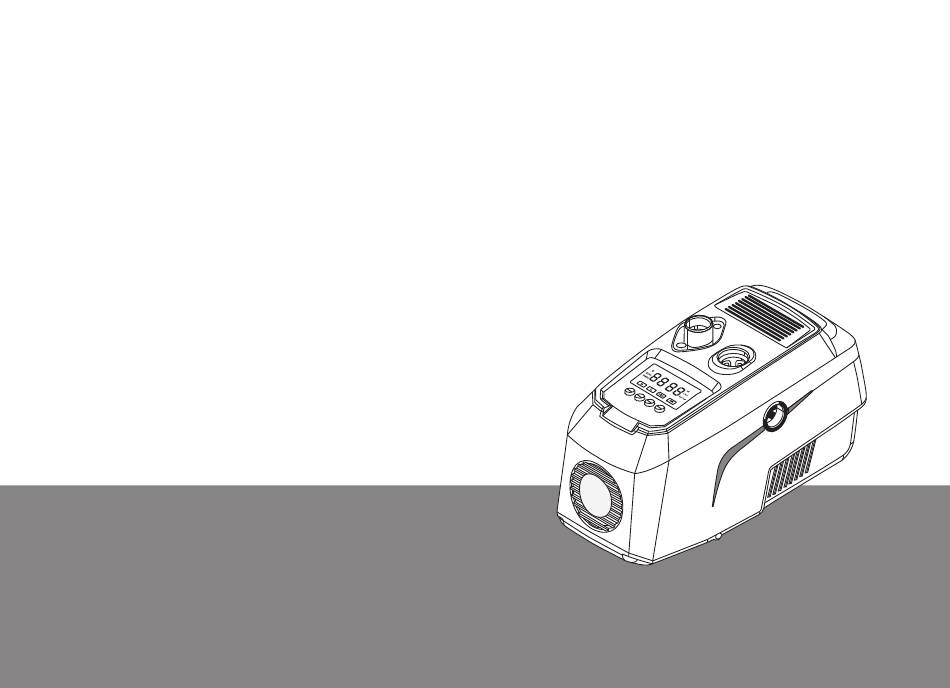

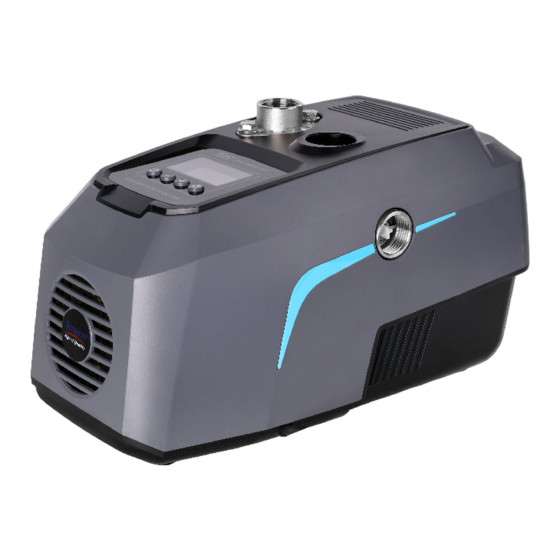

- Page 1 HYDROBOX 900 ALL IN ONE STRUCTURE INTELLIGENT PUMP...
- Page 2 Foreword Thank you for choosing HYDROBOX 900 all in one structure intelligent pump. In order to use the product better and ensure your safety, this manual provides detailed operating instructions and parameters. Please read the manual carefully before installation, operation, maintenance and inspection. Save the manual for future reference.
-
Page 3: Table Of Contents
1 SAFETY CAUTIONS In this manual or on the machine, the following symbols are used： Content DANGER: Denotes risk of personal injury or deaths. CAUTION: Denotes medium risk of personal injury or damage to the tool. SAFETY CAUTIONS PRODUCT DESCRIPTION 1.1 Check before installation Product Overview Please read this manual carefully before installation. -
Page 4: Product Description
2.4 Performance Curve H(m) 2.1 Product Overview Not like traditional water pumps, HYDROBOX 900 is featured with home appliance design, ultra-silence, easy control, simple installation, intelligent constant pressure control, and widely used in home and villa water supply pressurization. - Applying Permanent magnet motor, wide voltage, 85% motor efficiency... -
Page 5: Overall Dimension
2.5 Overall Dimension 3.2.2 Connect the inlet and outlet pipes. Use 1”G male threaded quick connector to connectthe water inlet and outlet respectively. Please ensure the connection is sealed properly and no leakage. 2.6 Working Condition Note: Pumped medium: Clear water and other liquids with physical properties similar to clear 1. -
Page 6: Connect Power Cable
Cyclic Switch-over Data Display Short Press Set Up Cancel And Return 4.1 Control Panel Switch Between Automatic And Manual The control panel of the HYDROBOX 900 is shown below: Automatic Mode Long Press Switch Between Automatic And Manual Manual Mode... -
Page 7: Quick Debugging
again. The detection time is 1 hour, 2 hours, 4 hours and 8 hours. If the water 4.4.2 Manual mode is a working mode designed for failure of sensor. In other words, shortage continues, the detection time is 8 hours. when automatic constant pressure water supply is not available, it can be switched When there is water detected, the pump will start automatically. -
Page 8: Failure And Troubleshooting
5 FAILURE AND TROUBLESHOTTING NO. Code. Failure Troubleshoo�ng Water shortage Related to F002, when the pump reaches the water shortage protec�on protec�on value, it will enter the protec�on state (check whether the water source failure is short of water). Related toF010, the temperature is higher than the over-temperature Over protec�on value, and the protec�on state is effected (check whether the temperature...
