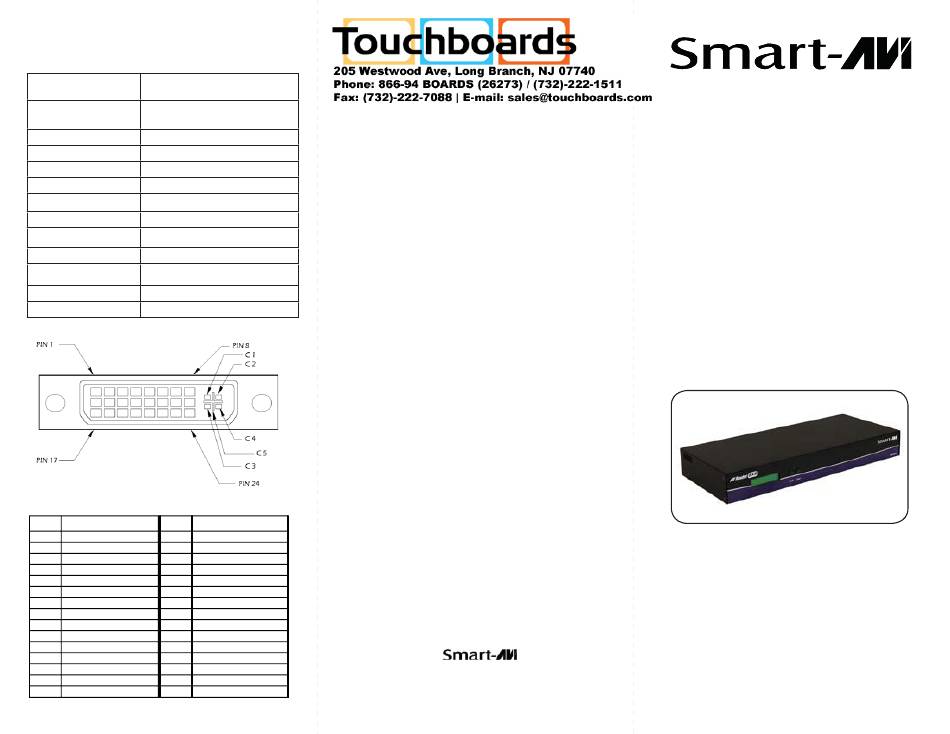

Technical Specifications
Video
Video Amplifier
165 MHz
Bandwidth
Input Video Signal
1.2 volts p-p
Input DDC Signal
5 volts p-p (TTL)
Single Link Range
1080 / 1920 x 1200
DVI Connector
DVI-I 29 pin female
Control
Serial Controls
RS-232, DB9 female connector
Power
Power Supply
5VDC-3A
Physical
Dimensions
17"W x 1.75"H x 7"D
Weight
4.05 lbs.
Pin #
Signal
Pin #
1
T.M.D.S Data 2-
16
Hot Plug Detect
2
T.M.D.S Data 2+
17
T.M.D.S Data 0-
3
T.M.D.S Data 2/4 Shield
18
T.M.D.S Data 0+
4
T.M.D.S Data 4-
19
T.M.D.S Data 0/5 Shield
5
T.M.D.S Data 4+
20
T.M.D.S Data 5-
6
DDC Clock
21
T.M.D.S Data 5+
7
DDC Data
22
T.M.D.S Clock Shield
8
Analog Vert. Sync
23
T.M.D.S Clock+
9
T.M.D.S Data 1-
24
T.M.D.S Clock -
10
T.M.D.S Data 1+
11
T.M.D.S Data 1/3 Shield
C1
Analog Red
12
T.M.D.S Data 3-
C2
Analog Green
13
T.M.D.S Data 3+
C3
Analog Blue
14
+5V Power
C4
Analog Horz Sync
1
5
G
N
D
C
5
A
n
a
o l
Signal
g
G
o r
u
n
d
Smart Audio Video Innovation
DVI Router 8x8
With Optional TCP/IP Control
Display content from any 8 computers
on any 8 screens independently.
