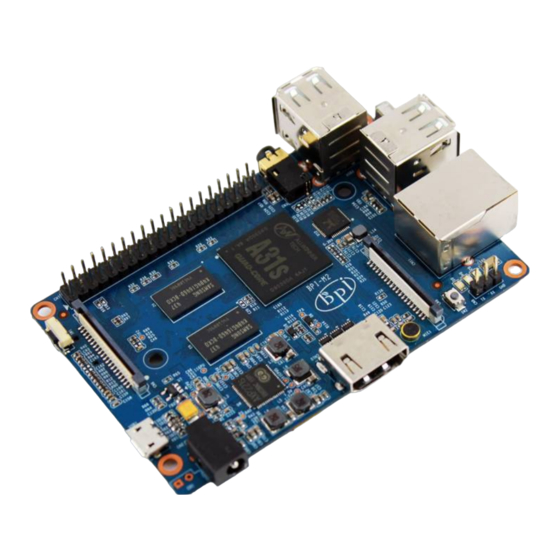

Summary of Contents for SinoVoip Banana PI M2
- Page 1 Banana PI M2 User Manual SinoVoip CO.,LTD Banana PI M2 User Manual <Version: V2.0 > www.sinovoip.com.cn www.banana-pi.com...
- Page 2 Banana PI with Gigabit ethernet port, It can run with Android 4.4 smoothly. The size of Banana PI M2 same as banana pi M1, it can easily run with the game it support 1080P high definition video output, the GPIO compatible with Raspberry Pi B+ and...
- Page 3 Banana PI M2 User Manual Hardware specification A31S ARM Cortex-A7 quad-core,256 KB L1 cache 1 MB L2 cache · PowerVR SGX544MP2 · Comply with OpenGL ES 2.0, OpenCL 1.x, DX 9_3 Memory 1GB DDR3 (shared with GPU) (SDRAM) Onboard Storage TF card (Max.
- Page 4 Banana PI M2 User Manual Interface: www.sinovoip.com.cn www.banana-pi.com...
-
Page 5: Use Method
Banana PI M2 User Manual Use method Step 1: Get what you need First time to enjoy your Banana Pi, you need at least the accessories in the table below. Item Minimum recommended specification & notes Minimum size 4Gb; class 4 (the class indicates how fast ... - Page 6 Step3: Prepare your SD card for the Banana Pi M2 In order to enjoy your Banana Pi M2, you will need to install an Operating System (OS) onto an SD card. Instructions below will teach you how to write an OS image to your SD card under Windows and Linux.
- Page 7 Banana PI M2 User Manual Windows: Download the a SD card format tool such as SD Formatter from https://www.sdcard.org/downloads/formatter_4/eula_windows/ Unzip the download file and run the setup.exe to install the tool on your machine. In the "Options" menu, set "FORMAT TYPE" option to QUICK, "FORMAT SIZE ADJUSTMENT"...
- Page 8 Banana PI M2 User Manual Run fdisk –l command to check the SD card node. Run sudo fdisk command to delete all partition of SD card. /dev/sdx vii. Run mkfs –t vfat /dev/sdx command to format the entire SD card as FAT.
- Page 9 SD card. Wait patiently to successfully complete writing. Step4: Set up your Banana Pi M2 According to the set up diagram below, you can easily set up your Banana Pi. 1. Insert the written-image SD card that to the SD card spot on the left side edge of the underside of the board.
- Page 10 Banana PI M2 User Manual correct one. It is thinner and also looks like a trapezoid except it’s sides are rounded outward. If all goes well, the Banana Pi will boot in a few minutes. The screen will display the OS GUI.
-
Page 11: More Pictures
This will shut down the PI safely, (just use the power key to turn off might damage the SD-cards file system). After that you can press the power key for 5 seconds to turn it off. If all is well ,so you can use banana pi M2 now. More Pictures www.sinovoip.com.cn... - Page 12 Banana PI M2 User Manual www.sinovoip.com.cn www.banana-pi.com...
- Page 13 Banana PI M2 User Manual www.sinovoip.com.cn www.banana-pi.com...
- Page 14 Banana PI M2 User Manual www.sinovoip.com.cn www.banana-pi.com...
- Page 15 Banana PI M2 User Manual www.sinovoip.com.cn www.banana-pi.com...
