IAP3600S-2225-2GT-PDP12_48
Industrial Outdoor Dual-band Wi-Fi6
Wireless AP
Quick Installation Guide
3onedata Co., Ltd.
Address: 3/B, Zone 1, Baiwangxin High Technology
Industrial
Park,
Xili,
Shenzhen
Website: www.3onedata.com
Tel:
+86 0755-26702688
Fax:
+86 0755-26703485
【Package Checklist】
Please check whether the package and accessories are intact
while using the device for the first time.
1.
Wireless AP
2.
Pole/wall mounting attachment
3.
Certification
4.
Warranty card
If any of these items are damaged or lost, please contact our
company or dealers, we will solve it ASAP.
【Product Overview】
The product is a 2-port Gigabit industrial outdoor dual-band
Wi-Fi6
wireless
AP.
IAP3600S-2225-2GT-PDP12_48 (2 2.4G antenna interfaces +
2 5G antenna interfaces + 1 Gigabit RJ45 port (LAN) + 1
Gigabit PoE RJ45 port (LAN/WAN), 1 12~48VDC power
input).
【Panel Design】

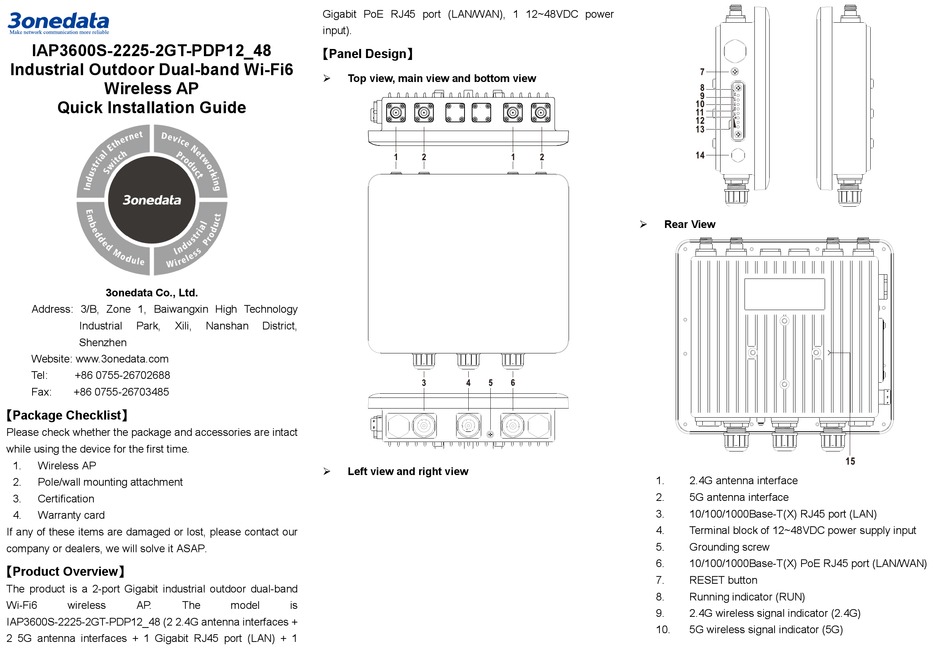

Top view, main view and bottom view
Nanshan
District,
Left view and right view
The
model
is
Rear View
1.
2.4G antenna interface
2.
5G antenna interface
3.
10/100/1000Base-T(X) RJ45 port (LAN)
4.
Terminal block of 12~48VDC power supply input
5.
Grounding screw
6.
10/100/1000Base-T(X) PoE RJ45 port (LAN/WAN)
7.
RESET button
8.
Running indicator (RUN)
9.
2.4G wireless signal indicator (2.4G)
10.
5G wireless signal indicator (5G)
