Summary of Contents for Deako Smart Dimmer

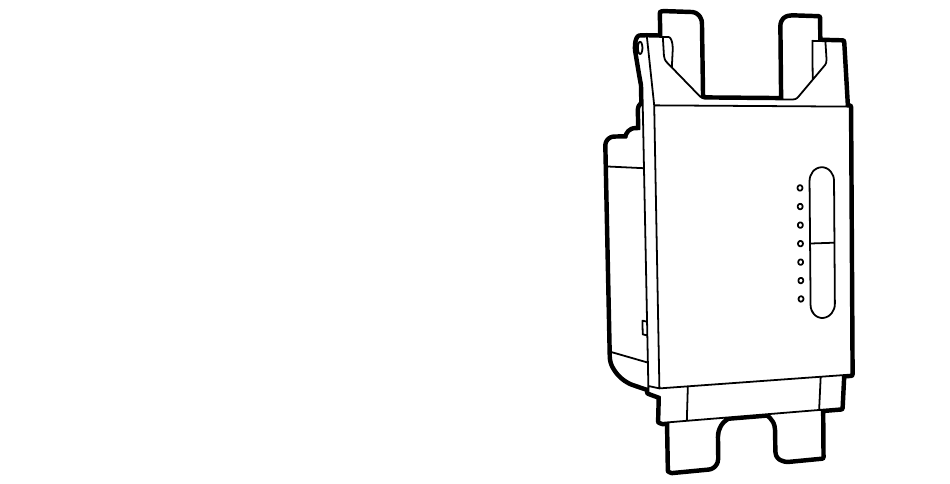

  • Page 1 Deako Smart Dimmer Single Pole Smart Dimmer Master Smart Dimmer Remote Smart Dimmer...
  • Page 2 Get to know your LED indicators Main button Deako Switch Dimmer control Configure button...
  • Page 3 LED key LED key L ED CO LO R W H AT IT M E AN S LE D C O LO R W H AT IT M E A N S Blinking green Powering up Solid white Pairing or Linking successful Blinking purple Linking mode Blinking red...
  • Page 4 How many switches control this light? 1 switch 2+ switches If one switch controls this light, If two or more switches control CONTINUE TO PAGE 8 TURN TO PAGE 12 this light,...
  • Page 5 Insert a switch Align the blue tab on the While pressing the switch inwards, push in the blue backplate with the top of the switch...
  • Page 6: Installation Complete

    Pairing Control your new smart switch by downloading the Deako App. Installation complete! Now let’s get smart.
  • Page 7: What You'll Need

    What you’ll need 1x master dimmer 1+ remote dimmer One master dimmer One remote dimmer for each additional switch location...
  • Page 8: Switch Types

    Identify the switch type by looking at the sticker found on the back of your switch. You will either have a Master Smart Dimmer or Remote Smart Dimmer. If you have a different type of switch, go to support.deako.com for more information 9696669209165087 9696669209165087...
  • Page 9 Remove existing dimmer Remove existing dimmer If there is a switch installed Pull the blue tab outwards to in the backplate you want to release the switch upgrade, start by pulling the corner of the faceplate...
  • Page 10 Insert Remote Dimmer Locate the powered backplate While pressing the switch inwards, push in the blue tab in the circuit by inserting a Remote Smart Dimmer into a If the backplate is powered, backplate in the circuit the switch will flash green...
  • Page 11 Wait until the switch stops Move to the next flashing green, then press & powered backplate, hold the configure button then repeat steps 1-5 until it flashes purple for each switch in the circuit until you get to the last switch...
  • Page 12 Insert Master switch On the last switch in the Wait until the switch stops circuit, insert the Master flashing green, then press & Smart Dimmer hold the configure button until it flashes purple Once all switches in the circuit are flashing...
  • Page 13 Once the switches show solid white and Now you’re ready to pair turn off, linking is complete your switches with the Deako App...
  • Page 14: Troubleshooting

    To exit linking mode at any point, press & hold the configure button for 10 seconds to factory reset each switch before retrying • If you have dead-end or other nontraditional wiring in your home, you can find wiring and setup instructions at deako.com/wiring...
  • Page 15 Pour rester en conformité avec les consignes d’exposition aux RF, Increase the separation between the equipment and receiver. © 2021 Deako This device must accept any interference, including interference placez le produit à au moins 20 cm des personnes proches.
  • Page 17: Need Help

    Need help? Need help? support.deako.com 1-844-673-3256...
