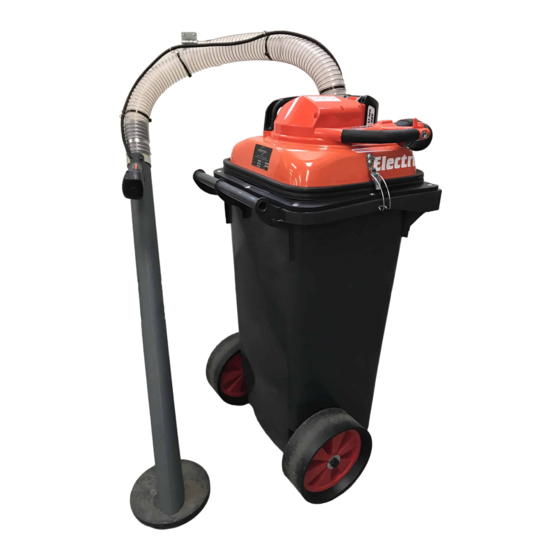

120-75-E
ELECTRIC PEDESTRIAN
VACUUM LITTER COLLECTOR
OPERATOR AND
SPARE PARTS MANUAL
MANUFACTURED BY:
OVERTON (UK) LIMITED
14 Farrier Road, Lincoln, LN6 3RU
TEL: 01522 690011 E-mail: sales@overtonukltd.com
www.overtonukltd.com
This Manual provides the information necessary for the safe operation and maintenance of
this vacuum litter collector. Read it carefully to familiarise yourself with the operation and
service of your new Overton BP-75-E electric vacuum litter collector. Failure to do so could
result in serious injury.
Issue No: 01
01/11/18
Advertisement
Table of Contents
Summary of Contents for Overton 120-75-E
- Page 1 This Manual provides the information necessary for the safe operation and maintenance of this vacuum litter collector. Read it carefully to familiarise yourself with the operation and service of your new Overton BP-75-E electric vacuum litter collector. Failure to do so could result in serious injury.
- Page 2 Enquiries • Please contact Overton (UK) Ltd for requests regarding information about your product, the purchase of consumables, repairs and other such enquiries. o Notices •...
-
Page 3: Table Of Contents
Contents For safe use of your product………………………………………………………………………………………4-11 Warning notices…………………………………………………………………………………………………….4 Other indicators…………………………………………………………………………………………………….4 Symbols…………………………………………………………………………………………………………..4-5 Location in which the safety decal is attached………………………………………………………………….5 Handling the product………………………………………………………………………………………………6 Description…………………………………………………………………………………………………………….12 Before you start…………………………………………………………………………………………………...13-16 Assembly…………………………………………………………………………………………………………..13 Battery Charging……………………………………………………………………………………………...14-15 Fitting & Removing battery…………………………………………………………………………………..15-16 Starting and Stopping………………………………………………………………………………………………..17 Starting the unit…………………………………………………………………………………………………..17 Stopping the unit…………………………………………………………………………………………………17 Operation………………………………………………………………………………………………………….18-19 Operating Vacuum Litter Collector……………………………………………………………………………..18... -
Page 4: For Safe Use Of Your Product
For safe use of your product Be careful to read this section before using this product. The precautions described in this section contain important safety information. Please observe them carefully. You must also read the precautions that appear in the body of the manual itself. Text following a (diamond mark) mark described the potential consequences of failing to observe the precaution. -
Page 5: Location In Which The Safety Decal Is Attached
For safe use of your product Symbol form/shape Symbol Symbol form/shape Symbol description/application description/application Keep bystanders away Environmental protection! Guaranteed sound power Volts levels Class II tool Direct current Location in which the safety decal is attached • The safety decal shown below has been attached to the product described in this manual. Ensure that you understand what the decal means before using your product. -
Page 6: Handling The Product
For safe use of your product Handling the product General Power Tool Safety Warnings WARNING Read all safety warnings and all instructions. Personal safety Failure to follow the warnings and instructions may result Stay alert, watch what you are doing and use in electric shock, fire and/or serious injury. - Page 7 For safe use of your product WARNING Power tool use and care Battery tool use and care Do not force the power tool. Use the correct Recharge only with the charger specified by the power tool for your application. manufacturer. ...
- Page 8 For safe use of your product WARNING Operator’s manual Loaning or assigning your product Be careful to read the operator’s When loaning your product to another party, manual properly before using ensure that the person borrowing the product receives the operator’s manual along with it. your product in order to ensure correct operation.
- Page 9 For safe use of your product Precautions for use WARNING Users of the product Using the product When using the product, pay special attention to The product should not be observe the following precautions. used by: Do not point the blower pipe at people or pets. People who are tired Do not use the product in places where there is People who have taken alcohol...
- Page 10 For safe use of your product WARNING Repetitive stress injuries Turn off the unit immediately if anything goes wrong It is believed that over-using the muscles and Turn off the unit immediately if the product tendons of the fingers, hands, arms and shoulders suddenly starts to emit abnormal sounds or may cause soreness, swelling, numbness, weakness vibrate abnormally.
- Page 11 For safe use of your product WARNING Wear Protective gear Wear appropriate work clothes and protective gear when working with the power blower. Above all, make sure to wear safety goggles and dust mask at all times while working. Without the protective gear, you could inhale the debris or dust blown away or get them in your eyes, which could lead to an accident or injury.
-
Page 12: Description
Description Power button Press once to turn on power to the unit Power indictor LED illuminates. Press once more to Turn power off to unit, power indicator LED turns off. Power indicator LED Remains illuminated when power To unit is turned on. Turns off when power to unit is off Trigger Pull back to increase vacuum Motor Unit... -
Page 13: Before You Start
Before you start Assembly WARNING Read the operator’s manual carefully to ensure that you assemble the product correctly. Never perform maintenance or assembly procedures with unit running. Using a product that has been incorrectly assembled could lead to an accident or serious injury. -
Page 14: Battery Charging
Before you start Battery Charging WARNING Always use battery pack LBP-560-200 and charge only with LCJQ-560 charger. Keep charger and battery away from damp conditions and all liquids. Do not operate the charger on an easily combustible surface (e.g. paper, textiles) or in an environment with a high risk of fire. -
Page 15: Fitting & Removing Battery
Before you start 4. When charging is complete, LED will remain GREEN. A fully discharged battery pack will charge in about 88 minutes. (LBP-560-200) 5. Verify battery is fully charged by removing battery from charger, then pressing battery charge status button, and checking LED display. - Page 16 Before you start...
-
Page 17: Starting And Stopping
If the power button does not stop the blower, remove the battery to top the power supply to blower. Contact Overton (UK) Ltd before using the blower again. If the blower does not stop when the trigger is released completely, remove the battery to stop the power 1. -
Page 18: Operation
Operation Operating the Vacuum Litter Collector WARNING Always wear safety glasses and take all safety precautions or serious personal injury may result. Do not point the pipe in the direction of people or pets. IMPORTANT To avoid motor damage, do not block pipe opening. Never run the blower without the blower pipes fitted. NOTE Never use a higher speed setting than necessary to perform a task. -
Page 19: Cruise Control
Operation Cruise Control NB: Has been disconnected... -
Page 20: Maintenance And Care
IMPORTANT Time intervals are maximum. Actual use and your experience will determine the frequency of required maintenance. Maintenance and care If you have any questions or problems, please contact Overton (UK) Ltd. Cleaning battery and battery compartment WARNING Risk of electric shock or fire. Do not use conducting materials to clean battery or battery compartment. -
Page 21: Troubleshooting Table
Overton (UK) Ltd. Do not attempt to dismantle the product. Consult Overton (UK) Ltd in the event of a problem that is not covered in the table above, or other such concerns. ... -
Page 22: Storage
Maintenance and Care Storage WARNING Do not store in an enclosure where combustible fumes may accumulate. You could cause a fire. When storing the product for long periods, ensure that the following preparations for storage are carried out. Rechargeable Power Blower Do not store your unit without performing protective storage maintenance which includes the following:... -
Page 23: Disposal
Battery contains lithium. Dispose only at a designated collection point. Lithium-ion batteries must be disposed of properly. Please contact Overton (UK) Ltd in case you do not know how to dispose of or recycle waste plastic parts. -
Page 24: Specifications, Optional Extras And Warranty Information
The Overton 120-75-E is covered by a warranty against material and workmanship defects for one year after purchase. The warranty is void if the 120-75-E has not been serviced or maintained according the schedule set out in this manual or modified in any way without the permission of Overton (UK) Limited. -
Page 29: Spare Parts
120-75-E ELECTRIC OVERTON PEDESTRIAN LITTER COLLECTOR SPARE PARTS LIST...
