OTER CurBot 1S User Manual

Smart curtain robot
Hide thumbs

Advertisement

Quick Links

Download this manual
Enjoy Your Spiritual Home
www.oter-group.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the CurBot 1S and is the answer not in the manual?

Questions and answers

Summary of Contents for OTER CurBot 1S

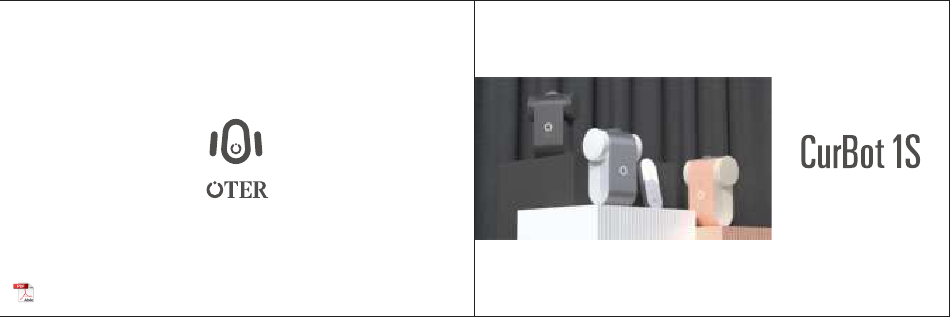

  • Page 1 Enjoy Your Spiritual Home www.oter-group.com...
  • Page 2 In The Box CurBot Instruction Smart Curtain Robot Track preparation 03-04 CurBot preparation 05-06 Installation 07-16 CurBot 1S Rod hooks I-rail hooks U-rail hooks Charge Remote Hub 1S Type-C Micro-USB Control 18-31 Specifications Return and Refund Contact and Support...
  • Page 3 CurBot Instructions Track Preparation 1.Watch the track to find the matching hook * LED description LED status Function Drive Wheel Breathing White Pairing Complete pair White Breathing White Charging Circular Connector White Full Charge Lock Buttons Light Sensor * Power button description Power U rail I rail...
  • Page 4 CurBot Preparation 2.Wipe off the dust in advance to keep the track clean and smooth. 1.Press the 2 locking buttons of the circular connector to remove it. （Remove the circular connector on the other side in the same way） Push the lock buttons 3.Close the curtains completely * The bottom of the track should be smooth, * The thickness of the rod uniform...
  • Page 5 1. Attach U-rail hooks to the circular connector until 2 locking buttons out. 2.Attach the track hook to the circular connector until 2 the locking buttons out. （Attach the hook to other circular connector in the same way） U Rail Note: The left and right ends of the rod and U rail are different...
  • Page 6 2. Hang the hooks on the curtain rail, between the first and the second curtain clips. 4. Assemble the 2 circular connectors with the main body in sequence. 3. Rotate and align the 2 circular connectors until they face each other. 5.
  • Page 7 1. Attach I-rail hooks to the circular connector until the 2 locking buttons are out. 2. Hang the hooks on the curtain rail, between the first and the second curtain clips. 3. Rotate and align the 2 circular connectors until they face each other.. I Rail Note：...
  • Page 8 4. Assemble the 2 circular connectors with the main body in sequence. 1. Attach the I-rail hooks the o circular connector until the 2 locking buttons are out. 5. ① The drive wheel should stick to rail, If not, the hooks may be too tight. Remove and reassemble.
  • Page 9 3. Hang on the hooks on the curtain rail, between the first and the second curtain clips. 2. Open the hooks （The hook of rod has a snap lock and needs to be pressed tightly) 4. Rotate and alignthe 2 circular connectors until they face each other, Lock clasp. 5.
  • Page 10 Charge 6. ① The drive wheel should stick to the rail, If not, the hooks may be pulled too tight. Remove and reassemble. ② The CurBot must be perpendicular to the rail. When the CurBot battery is lower than 10%, the APP pls prepare to charge：: Remove device: Hold the CurBot by hand, press 2 locking buttons of the circular con-...
  • Page 11 CurBot Scene Hub 1S Open, Close and Pause controls available In addition to scene 1, add light sensing In addition to scene 2, add voice control, scene control (linked to 30k+ Tuya equipment), etc. and percentage control、touch&go.)

  • Page 12: Remote Control

    Remote Control Add Remote Method 1: Enter Setting->Remote->Add Remote enter to be paired, Follow the prompts Open to the next step. Battery replacement Close Method 2: 1.Press CurBot power button " " CR2032/3V twice continuously enter to be paired. Pause 2..Press any button on remote until the status light to white.

  • Page 13: App Control

    APP Control 1.Download the OTER app. （The App is regularly updated, and ope- ration is subject to app) Avaltable on the ANDROID APP ON A p p S t o r e Google play 2. Click “LOG IN" and complete registration.
  • Page 14 Double Curtains (Open to both sides) 1. Ready 2 CurBot and Hud 1S first. 2. Select "Open to both sides" to start calibration. 3. Add another CurBot to complete binding. 4. Complete calibration.

  • Page 15: Light Sensing

    （Set curtains to open/close automatically under different light levels） （Pull curtain by hand, and CurBot will automatically move the curtain to open/close) 1. Open the OTER app, enter the CurBot settings, and turn on Open the OTER app, enter the CurBot settings, and the switch for light sensing.
  • Page 16 Hub Control (Connect your CurBot and add functions such as timing, temperature sense, and scene settings) 1. Hub uses Micro-USB cable to power on. 2.Add "Gateway" in OTER app. Hub 1S 3.Add sub-devices, select CurBot.

  • Page 17: Voice Control

    1.Make sure Alexa or Google Assistant are connected to About Update the Internet. 2.Use the OTER app to complete connection between the CurBot and Alexa or Google Assistant. The version of the device is continuou- sly updated, which can be viewed and updated from Setting.
  • Page 18 OTER Brand 2. The button fails (including remote and CurBot) Model CurBot 1S 3. The motor control fails（Except for misuse） 》enjoy free maintenance services within 1 year from the purchase date. Color Space Grey / Moon Sliver / Sakura Pink...
  • Page 19 4.If the CurBot fails, contact us at Support@oter-group.com Do not disassemble and maintain However, there is no guarantee that interference will not occur in a particular installation. If this equipment does it by yourself.
