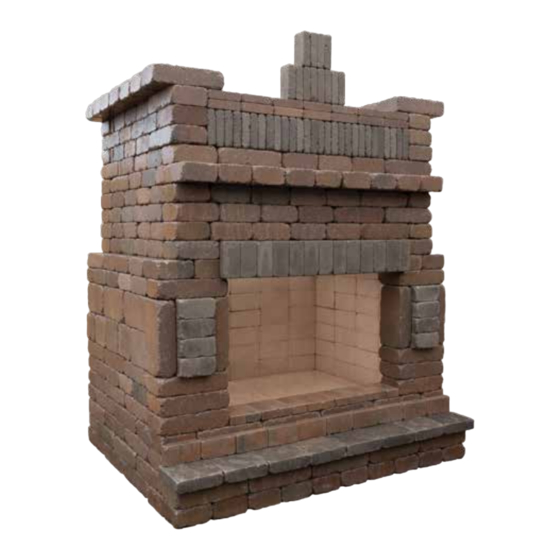

- Page 1 EMPIRE FIREPLACE Autumn Blend: 198-6293 Quarry Gray: 198-6290 Sienna: 198-6291 Tan: 198-6292 Approximate Weight: 12,760 lbs Approximate Size: 7'7"H × 5'10"W × 4'8"D www.mmconcrete.com...
-
Page 2: Additional Materials
CONCRETE BLOCK MATERIALS BELGIAN WALL BLOCKS PRODUCT DESCRIPTION QUANTITY COLOR LARGE MEDIUM SMALL L Tumbled Belgian Wall Color of Choice Autumn Blend 179-3640 179-3724 179-3734 M Tumbled Belgian Wall Color of Choice Quarry Gray 179-3650 179-3721 179-3731 M Tumbled Belgian Wall - Color 2 2nd Color of Choice Sienna 179-3648... - Page 3 RESPONSIBILITIES: TOOL CHECK LIST: It is the responsibility of the owner to ensure compliance with all applicable laws, codes and regulations for any project. Proper safety precautions must be taken prior to and during the construction of each project. Level Please follow standard safety guidelines and wear necessary protective equipment when building and using Protective Equipment your new backyard addition.
-
Page 4: Fireplace Dimensions
TABLE OF CONTENTS FIREPLACE DIMENSIONS Materials List Tool Check List Foundation Guidelines Level 1 - Level 2 Level 3 - Level 4 Level 5 - Level 6 Level 7 - Level 8 Level 9 - Level 10 Level 11 - Level 12 Level 13 - Level 14 Level 15 - Level 16 Level 17 - Level 18... - Page 5 LEVEL 1 LEVEL 2 (40) L Belgian Wall Block (40) L Belgian Wall Block Fasten each layer of block together with ¼” - ⅜” bead of adhesive on all adjacent block faces unless otherwise noted. Refer to the adhesive’s application instructions for proper use.
- Page 6 LEVEL 3 LEVEL 4 (35) L Belgian Wall Block (10) S Belgian Wall Block (8) 9×9 Belgian Paver Stones...
- Page 7 LEVEL 5 LEVEL 6 (17) L Belgian Wall Block (12) L Belgian Wall Block (4) M Belgian Wall Block (12) S Belgian Wall Block (4) S Belgian Wall Block...
- Page 8 LEVEL 7 LEVEL 8 (11) L Belgian Wall Block (12) Belgian Large Wall Block (12) M Belgian Wall Block (4) S Belgian Wall Block...
- Page 9 LEVEL 9 LEVEL 10 (2) M Belgian Wall Block - Color 2 (16) L Belgian Wall Block (20) M Belgian Wall Block (2) M Belgian Wall Block - Color 2 (4) S Belgian Wall Block...
- Page 10 LEVEL 11 LEVEL 12 (20) L Belgian Wall Block (2) M Belgian Wall Block - Color 2 (2) M Belgian Wall Block - Color 2 (4) S Belgian Wall Block...
- Page 11 LEVEL 13 LEVEL 14 (9) L Belgian Wall Block (3) L Belgian Wall Block (8) M Belgian Wall Block (11) M Belgian Wall Block (16) S Belgian Wall Block (35) S Belgian Wall Block...
- Page 12 LEVEL 15 LEVEL 16 (4) L Belgian Wall Block (2) 1¾” × 4’ Square Tube Steel (16) M Belgian Wall Block...
- Page 13 LEVEL 18 LEVEL 17 (4) L Belgian Wall Block (4) L Belgian Wall Block (16) M Belgian Wall Block (16) M Belgian Wall Block...
- Page 14 LEVEL 20 LEVEL 19 (4) L Belgian Wall Block (13) L Belgian Wall Block (16) M Belgian Wall Block (8) M Belgian Wall Block...
- Page 15 LEVEL 21 LEVEL 22 (5) L Belgian Wall Block (4) L Belgian Wall Block (14) M Belgian Wall Block (10) M Belgian Wall Block (2) S Belgian Wall Block (2) S Belgian Wall Block (28) S Belgian Wall Block - Color 2...
- Page 16 LEVEL 23 LEVEL 24 (3) L Belgian Wall Block (4) L Belgian Wall Block (12) M Belgian Wall Block (10) M Belgian Wall Block (9) S Belgian Wall Block...
- Page 17 LEVEL 25 LEVEL 26 (7) S Belgian Wall Block (14) L Belgian Wall Block (8) S Belgian Wall Block - Color 2...
- Page 18 LEVEL 27 KEYSTONE (4) S Belgian Wall Block - Color 2 (15) S Belgian Wall Block - Color 2 Begin by gluing keystone blocks together, wait until glue has completely dried before attaching the keystone. Refer to manufactures specification on dry times. Then, using 2×4’s and straps to hold the keystone tight against the fireplace, attach the keystone to the fireplace.
- Page 19 FIREPLACE ELEVATIONS Back View Front View Top View Left View Right View...
-
Page 20: Use And Maintenance
USE & MAINTENANCE With proper use and maintenance you can enjoy this new addition to your landscape for years to come. FIREPLACE USE: • When using your fireplace, always follow burning regulations in your area, keep the area free from combustible material and never leave a fire unattended. - Page 21 MEDIUM-DUTY REFRACTORY MORTAR Dry, Medium-Duty Refractory Mortar for Setting Masonry in Fireplaces and Chimneys ©AKONA MANUFACTURING LLC • August 2011 Version 4.1 Coverage/Size of Package Application Warranty Product Description ® Available in 50 lb bag. Each 50 lb. bag will For best results, do not apply when Akona Medium-Duty Refractory Mortar is...
