Summary of Contents for Warmup S Series

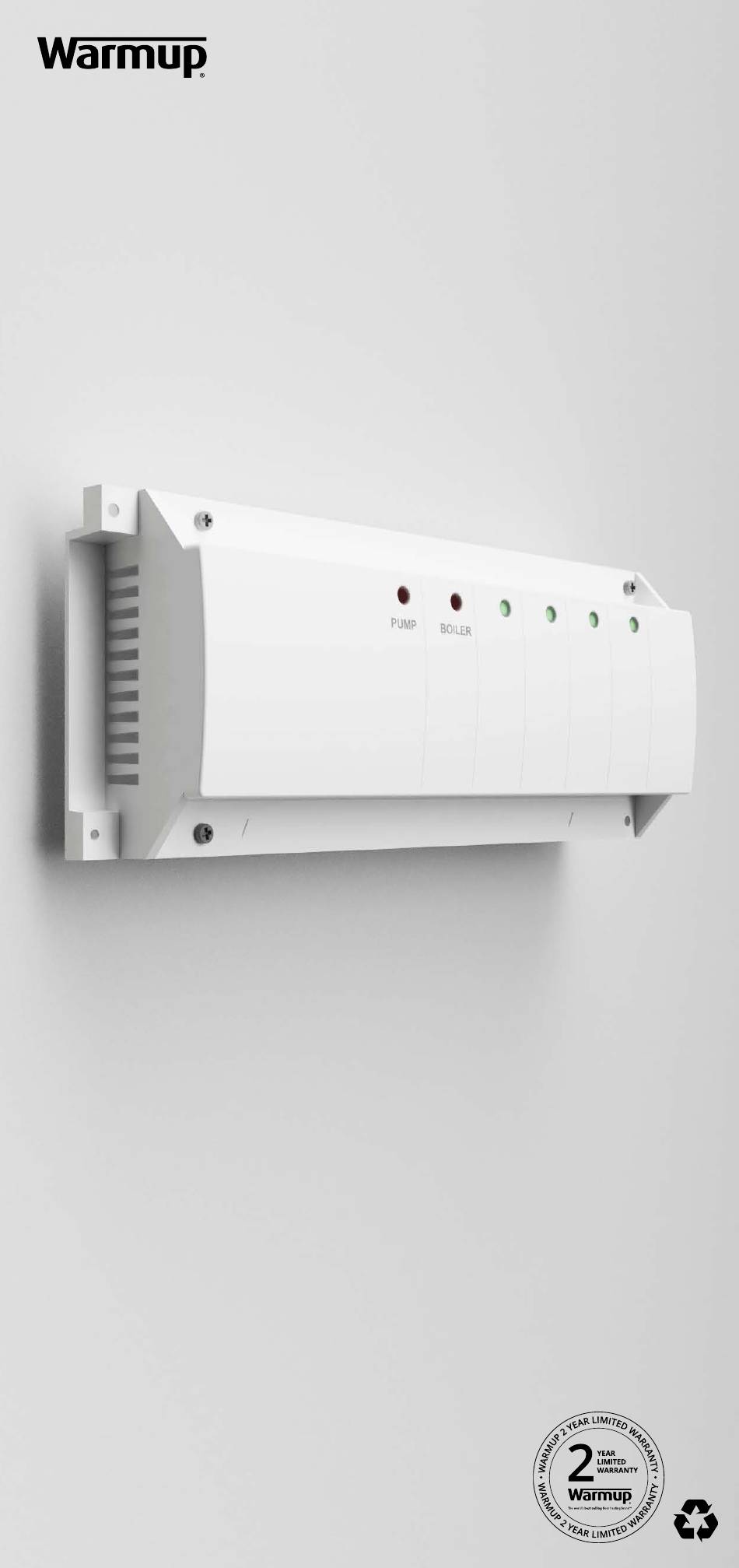

- Page 1 S-Series - 4 Zone Control Centre WHS-C-B-MASTER01 Installation manual...
-
Page 3: Table Of Contents
Table of contents Installation summary ������������������������������������������������������������������������������������������� 4 Important information ���������������������������������������������������������������������������������������� 6 Components available from Warmup ��������������������������������������������������������������� 7 Overview ��������������������������������������������������������������������������������������������������������������� 8 Dimensions �������������������������������������������������������������������������������������������������������� 10 Link wires ������������������������������������������������������������������������������������������������������������ 11 Step 1 - Location considerations ��������������������������������������������������������������������� 12 Step 2 - Assembly & mounting ������������������������������������������������������������������������� 13 Step 3 - Wiring Wiring - Power supply ��������������������������������������������������������������������... -
Page 4: Installation Summary
Installation summary Please read the full installation instructions before proceeding� BOILER PUMP °F °C • Identify a suitable mounting location� Normally above the manifold� LINK IF NO TWO PORT VALVE UFH PUMP VALVE CONTACT FUSE FREE CONTACT LINK IF TIMER BOILER MAIN SUPPLY UFH NOT USED... - Page 5 Installation summary UFH PUMP LINK IF NO LINK IF NO TWO PORT VALVE VALVE CONTACT TWO PORT VALVE UFH PUMP VALVE CONTACT Do not switch on the power supply until all wiring connections have been terminated and front cover re-fitted. FUSE FUSE FREE...
-
Page 6: Important Information
Important information Ensure the S-Series control centre (WHS-C-B-MASTER01) is mounted to a structurally sound wall� Precautions should be taken to reduce the risk of damaging any services within the walls when drilling� Ensure no loose strands wire are left outside of the terminal blocks during wiring�... -
Page 7: Components Available From Warmup
Components available from Warmup Product Code Description Wired controls WHS-C-B-MASTER01 S-Series - 4 Zone control centre S-Series - 4 Zone control centre WHS-S-SLV4Z extension 6IE-01-OB-DC Warmup 6iE 6IE-01-BP-LC RSW-01-WH-RG (ELM-01-WH-RG) Warmup Element RSW-01-OB-DC (ELM-01-OB-DC) ELT PW (ELT-01-PW-01) Warmup tempo ELT PB (ELT-01-PB-01) -
Page 8: Overview
Overview LINK IF NO TWO PORT VALVE UFH PUMP VALVE CONTACT FUSE FREE CONTACT LINK IF TIMER BOILER MAIN SUPPLY UFH NOT USED NC COM NO BOILER PUMP S-Series control centre - WHS-C-B-MASTER01 Wall mounting screw holes Connections for circulator 2 Port motorised zone valve terminals (remove link if used) Power supply terminals Fuse 5AT 250VAC... - Page 9 Overview Thermostat terminals 10 Actuator terminals 11 Cover screws 12 Red LED indicators for heat source and circulator 13 Green LED indicators for zone actuator state 14 DIN rail mounting bracket 15 DIN rail release clips...
-
Page 10: Dimensions
Dimensions BOILER PUMP LINK IF NO TWO PORT VALVE UFH PUMP VALVE CONTACT FUSE FREE CONTACT LINK IF TIMER BOILER MAIN SUPPLY UFH NOT USED NC COM NO S-Series Controls - Dimensions Height Depth Width Mounting Mounting Product 4-Zone Master 4-Zone Slave All measurements are in millimetres (mm) unless otherwise stated�... -
Page 11: Link Wires
Link wires LINK IF NO TWO PORT VALVE UFH PUMP VALVE CONTACT FUSE FREE CONTACT LINK IF TIMER BOILER MAIN SUPPLY UFH NOT USED NC COM NO S-Series 4 Zone Control Centre - Link Wires 2-port motorised zone valve link wire External time switch link wire •... -
Page 12: Step 1 - Location Considerations
Step 1 - Location considerations PUMP BOILER °F °C Identify a suitable mounting location for control centre� The location should meet the following requirements; The surface on to which it is to be mounted should be: Mounted where it will not be exposed to temperatures less than 0°C or greater than 50°C�... -
Page 13: Step 2 - Assembly & Mounting
Step 2 - Assembly & mounting The control centre can be either mounted directly on to a wall or mounted on a DIN rail� It is recommended that walls are assessed prior to drilling to reduce the risk of damaging existing services in the wall� If slave units are to be used, these should be connected prior to mounting�... -
Page 14: Wiring - Power Supply
Step 3 - Wiring - Power supply The control centre requires a 230 V AC 50Hz power supply� The power supply should not be livened until all wiring within the control centre and front cover re-fitted and any interconnected devices has been completed� The power supply for all interconnected devices, including the heat source and any 3rd party controls, should only be able to be isolated from a single point to ensure the system is only connected... -
Page 15: Wiring - Heat Source
Step 3 - Wiring - Heat source The boiler terminals provide a switched power supply� The heating interlock is enabled whenever a demand signal is received� For systems which require a delayed start, a third party time delay relay should be fitted as required�... -
Page 16: Wiring - Thermostat & Actuators
Step 3 - Wiring - Thermostat & actuators Thermostat connection on control centre Switched Live IN Live Neutral Actuators Up to 4 actuators can be connected to a single zone by connecting two into each pair of terminals. FREE CONTACT NC COM NO... -
Page 17: Step 3 - Wiring
Step 3 - Wiring - Thermostat & actuators If a zone requires more than 4 actuators, two or more zones can be bridged together� FREE CONTACT NC COM NO... -
Page 18: Wiring - Circulator
Step 3 - Wiring - Circulator The S-Series 4-Zone master control centre provides a switched power supply out to a circulator that activates when any underfloor heating channel has demand� If a mixing unit is fitted to the controlled manifold, it should be this secondary circulator that is connected�... -
Page 19: Wiring - Zone Valve
Step 3 - Wiring - Zone valve TWO PORT VALVE LINK IF NO TWO PORT VALVE UFH PUMP CONTACT FUSE FREE Zone valve CONTACT S2 = Switched Live IN S1 = Live LINK IF TIMER NOT USED SL = Switched Live OUT = Neutral NC COM N PE = Earth... -
Page 20: Typical Installation
Schematic - Typical installation... - Page 21 Schematic - Typical installation...
-
Page 22: Typical S-Plan Integration
Schematic - Typical S-Plan integration... - Page 23 Schematic - Typical S-Plan integration...
-
Page 24: Typical S-Plan+ Integration
Schematic - Typical S-Plan+ integration... - Page 25 Schematic - Typical S-Plan+ integration...
-
Page 26: Typical Typical Y-Plan Integration
Schematic - Typical Y-Plan integration... - Page 27 Schematic - Typical Y-Plan integration...
-
Page 28: Troubleshooting
Troubleshooting ISSUE 1 - No operation of heat source Instructions which are shaded grey must completed by a qualified electrician Has the power supply This must be tested and to the heat source supplying the correct and control centre voltage before continuing� been tested? Wiring issue from power Is 230 V present... - Page 29 1 & 4 for relevant zone? Is there voltage across terminals 1 for actuator one? Is there voltage across Please contact Warmup terminals 2 for actuator on 0345 345 2288 for two? more information The control centre is working as expected�...
-
Page 30: Performance Troubleshooting
Performance troubleshooting ISSUE 1 - The control centre fuse blows as soon as any zone activates SOLUTION 1 Check all wiring is connected correctly Check the ‘Mains Supply UFH’, to ensure there are no short circuits across any of the terminals 3 Ensure a 5AT 250VAC fuse is fitted 4 Check all thermostat connections for short circuits ISSUE 2 - The control centre fuse blows as soon as any zone activates... -
Page 31: Technical Specifications
Technical specifications S-Series 4-Zone master control centre (WHS-C-B-MASTER01) Operating voltage 230 VAC +/- 10% Fuse 5AT 5x20mm Protection Class I IP Rating IP20 Operating temperature 0 - 50°C Relay: 2 free contact Max�3A 250VAC Relay 1 - 230V Switched Live to zone valve and pump Outputs Relay 2 - 230V Switched Live or... -
Page 32: Warranty
Warmup plc. Warranty duration • S Series Controls are warranted for a period of 2 years from date of purchase, except as provided below; your attention is drawn to the exclusions listed at the end of this warranty�... - Page 36 F: 0345 345 2299 Please scan the QR code to provide feedback on your installation The WARMUP word and associated logos are trade marks� © Warmup Plc� 2023 – Regd�™ Nos� 1257724, 4409934, 4409926, 5265707� E & OE� Warmup plc 704 Tudor Estate...
