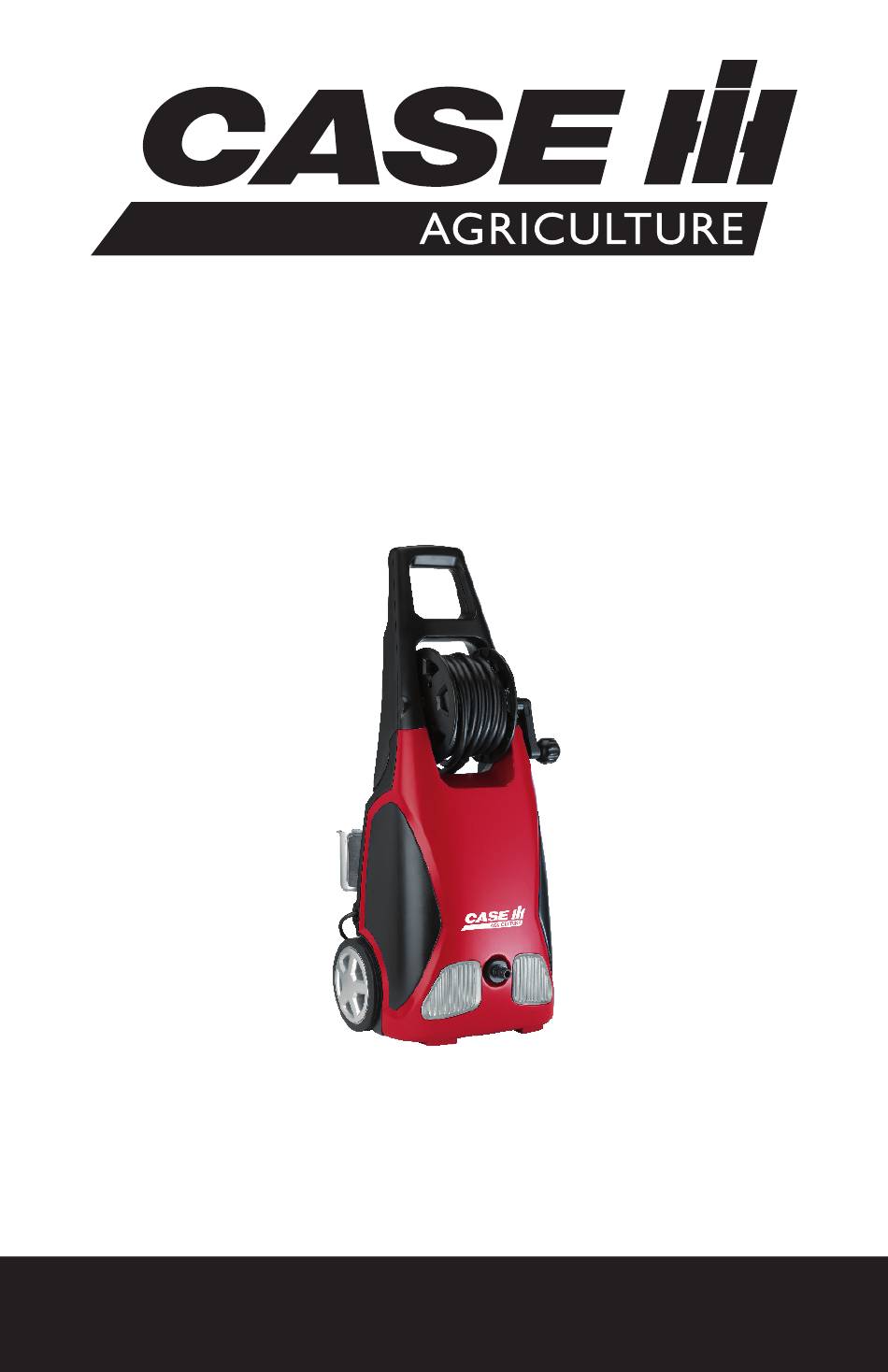

- Page 1 BC1813E operation manual 93780-LL...
- Page 2 table of contents Introduction Product Information Safety Rules Safety Information Contents Unpacking & Assembly Operation Storage Troubleshooting Chart Parts list & Specs Warranty...
- Page 3 introduction Attention: Read through the complete manual prior to the initial use of your Pressure washer Using the Operator’s manual The operating manual is an important part of your Pressure Washer. It should be read thoroughly before initial use and referred to often to make sure adequate safety and service concerns are being addressed.
- Page 4 product identification Record Identification Numbers Pressure washer If you need to contact an Authorized Dealer or Customer Service line (1-855-850-6668) for information on servicing, always provide the product model and identification numbers. You will need to locate the model and serial number for the pump and record the information in the places provided below.
- Page 5 safety Save these Instructions SAFETY RULES This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death. The safety alert symbol ( ) is used with a signal word (DANGER, CAUTION, WARNING), a pictorial and/or a safety message to alert you to hazards.
- Page 6 safety WARNING—When using this product basic precautions should always be followed, including the following: Read all the instructions before using the product. Know how to stop the product and bleed pressures quickly. Be thoroughly familiar with the controls. Keep operating area clear of all persons. Do not overreach or stand on unstable support.
- Page 7 safety 24. Only use detergent specifically formulated for power washers and follow instructions on the detergent’s label. We have a selection of power washer detergents to choose from. Go to our website for more information and to order the detergents. Power washer detergents are also available at your local hardware store.
- Page 8 contents Contents for storage use only 1. Pressure Washer Unit 6. Detergent Bottle 2. Manual 7. Nozzle Cleaning Tool 3. Adjustable Spray Nozzle 8. Soft PVC High-Pressure Hose 4. Turbo Lance 9. Garden Hose Adapter 5. Spray Gun (5A = Trigger Lock) 10.
- Page 9 unpacking and assembly • After unpacking the pressure washer, lay out the parts and accessories. Familiarize yourself with the parts in the package by comparing them to those listed on the “PACKAGE CONTENTS” page. • The washer requires some minor assembly. You’ll need a Phillips screwdriver to install the accessory holders .
- Page 10 unpacking and assembly • To release the hose from the spray gun, press the blue button on the underside of the gun toward the trigger guard. The hose will slide out from the connection. Spray Gun • To lock the trigger of the spray gun aim the gun away from you and push the lock button from right to left, (Fig.
- Page 11 operation • Attach collar of garden hose adapter directly to power washer water inlet. Hand tighten (Fig. 11). • Attach garden hose to the garden hose adapter (Fig. 12). Note: Flush out garden hose before connecting to garden hose adapter. •...
- Page 12 operation Cleaning Nozzles • A clogged or partially clogged nozzle can cause significant reduction of water pressure and can cause the unit to pulse/rattle while spraying. • Turn off the unit • Turn off the water supply to the unit •...
- Page 13 storage • When using the detergent bottle, our power washer’s application ratio of water to detergent is 10:1 or 10 parts water to 1 part detergent. You will need to adjust the concentration ratio of the detergent, according to the manufacturer’s instructions.
- Page 14 storage • The pressure hose is stored on the hose reel located above the accessory holder. With the front of the power washer facing towards you, insert the un-threaded end of the power hose into the square hole on the inner reel and begin turning the handle away from you (Fig.
- Page 15 troubleshooting Unit will not turn on. Make sure the power washer is in the “OFF” position. Plug in the electrical cord to a grounded 120 volt outlet (no electrical extension cord should be used). If the electrical cord will not plug into your outlet, your electrical outlet is not properly grounded and should not be used.
- Page 16 Pos. Description Qty. Detergent Bottle Soft PVC Hose (QC) Spray Gun Adjustable Lance/Nozzle Turbo Lance/Nozzle Garden Hose Adapter GFCI Assembly Specifications Model Max PSI Max GPM Max Temp. Voltage AMPS Unit Weight BC1813e 1900 120V 19.5 Cold water only...
- Page 17 “RETURNED MERCHANDISE AUTHORIZATION (RMA) NUMBER. ” You must obtain an RMA NUMBER by calling CASE IH at 1-855- 850-6668 Monday through Friday, 8 a.m. to 5 p.m. (CST), or e-mail nacustomerserviceaccount@cnhind.com.
- Page 18 If you need assistance with the assembly or operation of this Pressure Washer please call 1-855-850-6668...
