Summary of Contents for Peavey Electronics Corporation MediaMatrix nion N Series

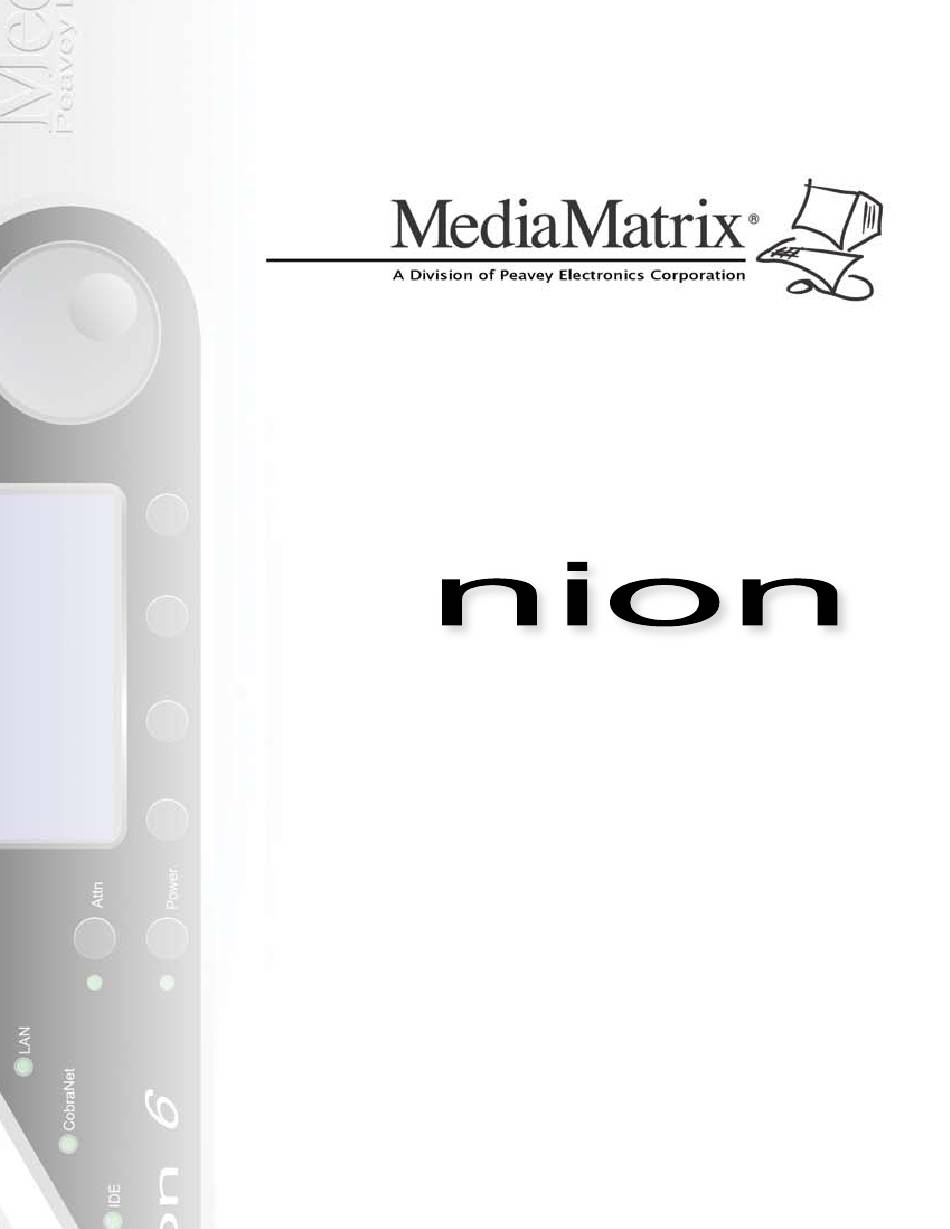

Page 1 ™ Network Input Output Node Hardware Manual v.05...
Page 2 NION™ Hardware Manual Intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. Intended to alert the user of the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.
Page 3 Safety Instructions IMPORTANT SAFETY INSTRUCTIONS WARNING: When using electrical products, basic cautions should always be followed, including the following: Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with a dry cloth. Do not block any of the ventilation openings.
Page 4 All creative content in this manual, including the layout, art design, content, photography, drawings, specifications and all other intellectual property is Copyright ® 2005 Peavey Electronics Corporation. All Rights Reserved. Features & specifications subject to change without notice.
Page 5: Table Of Contents
Table of Contents Table of Contents Table of Contents Manual Version History Thank You! Objective What’s In The Box? Description Features Applications Front Panel Features Rear Panel Features Basic Setup Configuration Setting the IP Mode (DHCP) Setting the IP Mode (Static IP) Configuring for CobraNet Setting the Time &...
Page 6: Manual Version History
NION™ Hardware Manual Manual Version History Because of the dynamic nature of NION technology and the associated products, NION manuals are subject to frequent updates. Please make sure you have the latest version of this manual by checking our website: http://mm.peavey.com.
Page 7 Welcome MediaMatrix ® - A Division Of Peavey Electronics Corp. Page ...
Page 8: Thank You
NION™ Hardware Manual Thank you for purchasing the MediaMatrix ® NION Network Thank You! Input/Output Node. This product is designed to provide years of trouble-free operation and high quality performance. We are confident that you will find this product and other MediaMatrix products to be of the highest quality.
Page 9: Description
Welcome Description The NION (n. nee-on) n6 and n3 are programmable digital audio processing nodes designed for professional and com- mercial audio and communications applications. Coupled with floating-point DSPs and the industry’s most efficient audio algorithms, the NION extends the world-class power of MediaMatrix to levels never seen before.
Page 10: Features
NION™ Hardware Manual Features • Floating point DSP Engine with 6 (n6) or 3 (n3) DSP chips • World-famous MediaMatrix audio algorithms • 320 channels total audio I/O (not including XDAB) • 32-bit processing engine • 24-bit conversion • Scalable I/O Architecture with four 32x32-channel bays •...
Page 11: Applications
Welcome Applications • Stadiums • Auditoriums • Arenas • Civic centers • Performing arts centers • Theaters • Courts of law • Houses of worship • Campus buildings • Theme parks • Hotel meeting rooms • Conference centers • Schools •...
Page 12: Front Panel Features
NION™ Hardware Manual Front Panel Features IDE Single-color LED indicates activity to/from the internal IDE storage media. CobraNet Single-color LED indicates activity to/from the internal CobraNet audio transport. LAN Single-color LED indicates activity to/from the Ethernet network interface. XDAB Single-color LED indicates activity to/from the XDAB audio expansion bus. Fault Single-color LED indicates muted audio condition.
Page 13: Rear Panel Features
Panel Features Rear Panel Features Power Receptacle Flush-mount IEC power receptacle for connecting a compatible IEC power cable (included). Use only the supplied cable or an equivalent international version. Power Supply Industrial ATX format power supply with exhaust fan.* Module Bays Housing bays for NION Series expansion cards. Up to 4 Nio Series I/O cards can be installed.
Page 14: Basic Setup
NION™ Hardware Manual Basic Setup Although there are many variables that exist for properly configuring the NION to pass audio, the most basic requirements are shown below. These basic parameters will ensure that you can connect, pass audio and control the NION processor. Before you can get audio to pass through the NION, you will need to design your project file in the NWare software.
Page 15: Configuration
Start Up Configuration When you have established typical connections and are ready to load your NWare Project File, you should first configure the NION’s basic operational parameters. Certain functions, such as communications, may not function correctly until properly configured. The configuration process is accomplished with the NION’s front panel interface.
Page 16: Setting The Ip Mode (Static Ip)
NION™ Hardware Manual Setting the IP Mode - Continued From the NION Home page, use the wheel to move the cursor to the “Config” icon. Then, press the wheel button to make the selection and bring up the first Configuration page, “LAN CONFIG”.
Page 17: Configuring For Cobranet
Configuration Configuring for CobraNet CobraNet is an important component of system design with NION products. In order to ensure proper operation of the CobraNet audio transport, several variables must considered. The NION is shipped with a default CM-1 setting of 0.0.0.0, which means that the IP will be set only when the CobraNet Discovery application needs and assigns it.
Page 18: Adjusting The Lcd View Angle
NION™ Hardware Manual Adjusting the LCD View Angle The LCD CONFIG page provides adjustment of the LCD backlight intensity and the view angle. Use the wheel and push button to select the LCD Backlight control. Use the wheel’s rotary control to select the desired value.
Page 19: Configuring Security
Configuration Configuring Security An integral password-based security function is included in the NION hardware. This feature allows the system designer to secure the NION by locking all front panel functionality. To enable security, a front-panel password, or “combination” must be configured. Once the combination is correctly configured, the system can be locked from the system LOCK screen.
Page 20: Gpio Overview
NION™ Hardware Manual GPIO Overview NION Series products include a versatile GPIO (General Purpose Input Output) system for terminating external logic, controls, relays and other external systems. Each control pin is supported by NWare for configuration, control and monitoring. Any combination of control pins may be used simultaneously, regardless of the configuration.
Page 21: Gpio Pin Assignment
GPIO GPIO Pin Assignment GPIO Pins 2-9 GPIO Pins 14-21 PIN FuNCTION Ground Configurable GPIO Configurable GPIO Configurable GPIO Configurable GPIO Configurable GPIO Configurable GPIO Configurable GPIO Configurable GPIO High Current Output 1 High Current Output 2 Fault Relay N.C. Fault Relay N.O.
Page 22: Serial Communications
NION™ Hardware Manual Serial Communications NION supports both RS-422 full duplex and RS-485 half-duplex serial communications. A single rear panel female DB-9 connector provides access to both protocols. Follow the pinout drawings and charts below for terminating either protocol. Note that both protocols cannot be used simultaneously. RS-422 Serial Port For RS-422 separate data pairs are provided for 120 Ohm...
Page 23 Topic Section Serial Communications NION™ Integrator’s Manual RS-232 Port FuNCTION N.C. In addition to the rear panel serial ports, the RX Data NION also includes a front-panel RS-232 port. TX Data This port can be used for external control of N.C.
Page 24: Specifications
NION™ Hardware Manual NION™ Hardware Manual Specifications Rear Panel Connections XDAB Performance Mains Power: 100v > 240v 50/60 Hz 300W A/ Data Format: 32-bit floating point audio. C. Terminated to rear panel IEC connector. Protocol: Proprietary. LAN: Female RJ-45 - transports control and Channels: 512 channels at 48kHz, 256 channels communications via Ethernet on Category 5e at 96kHz.
Page 25: Architect's & Engineer's Specifications
Topic Section Specifications Architect’s & Engineer’s Specifications Audio Processing Node The audio processing node shall be a 2RU industrial package designed for fixed installation in engineered audio and communications systems. The unit shall include an architecture based on an integrated floating-point Digital Signal Processor (DSP) engine with at least 3 DSP chips. The DSP shall operate with a common internal digital audio bus and support at least 512 simultaneous high-speed digital audio channels.
Page 27: Warranty Statement
Topic Section Warranty Warranty Statement MediaMatrix ® warranty, Peavey will pay the return shipping costs. PEAVEY ELECTRONICS CORPORATION How To Get Warranty Service: End Users: Take the defective product DOMESTIC (USA) LIMITED WARRANTY and your dated sales receipt or other proof of purchase to your Authorized MediaMatrix Systems Integrator or Authorized Peavey Service Center.
Page 28 MediaMatrix ® A Division of Peavey Electronics Corp. 5022 Hartley Peavey Drive, Meridian Mississippi, 39305 601-483-9548 http://mediamatrix.peavey.com Features & Specifications subject to change without notice Copyright © 2005, All Rights Reserved Printed in the USA 09/2005 80303151...
