Summary of Contents for Linearsound LTS.WMSAD4P

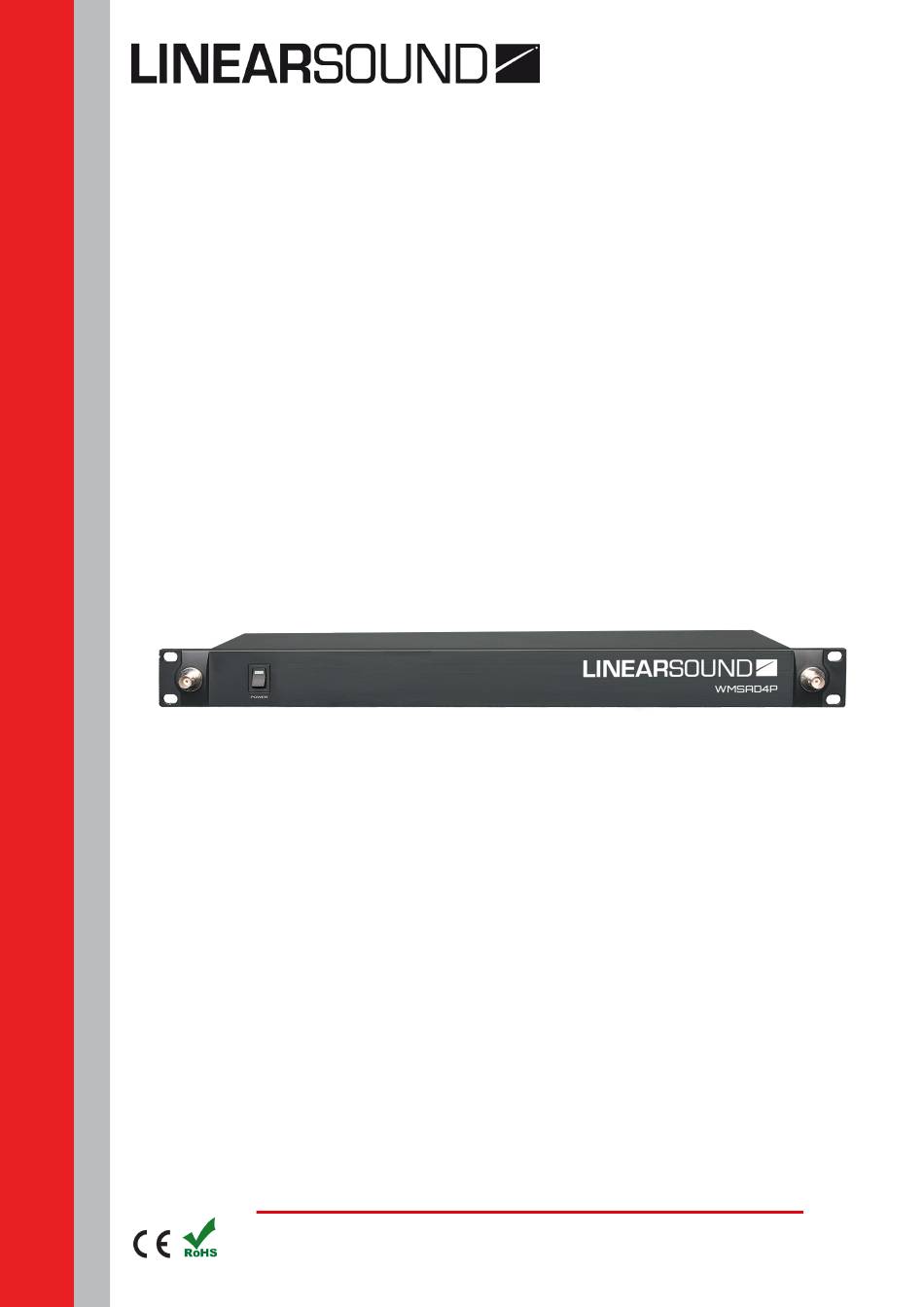

- Page 1 ANTENNA DISTRIBUTOR LTS.WMSAD4P Operation manual Linear Technologie • 11 rue du Puits Rochefort • 42 100 Saint-Etienne V.2017 Tél: +33 (0)4 77 81 49 49 • Fax: +33 (0)4 77 81 49 40 • www.lineartech.fr...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Safety precautions Page 3 2. Warranty Page 3 3. System description Page 3 4. Antenna distributor Page 4 5. Signal system installation instructions Page 5 6. Multi system installation instructions Page 6 7. Antenna amplifier Page 7 8. -
Page 3: Safety Precautions
1. SAFETY PRECAUTIONS • Please read the instructions below carefully before operating the equipment and keep the manual for future reference. • Clean only with dry cloth and make sure the power is off. • Only use with accessories that specified by LINEAR TECHNOLOGIE. •... -
Page 4: Antenna Distributor
System components WMSAD4P WMSA10 WMSAD9 Audio cables Power adapter Operation manual BNC cables 4. ANTENNA DISTRIBUTOR a. Front panel 1. On / off switch a. Rear panel 1. Antenna socket 2. Antenna distributor connection socket : Carries signals to receiver to increase receiving distance. -
Page 5: Signal System Installation Instructions
5. SIGNAL SYSTEM INSTALLATION INSTRUCTIONS 1. BNC connection cable 2. Power supply cable 3. AC adapter 4. BNC antenna 5. BNC connector... -
Page 6: Multi System Installation Instructions
6. MULTI SYSTEM INSTALLATION INSTRUCTIONS 1. BNC connection cable 2. Power supply cable 3. AC adapter... -
Page 7: Antenna Amplifier
7. ANTENNA AMPLIFIER Antenna amplifier descriptions WMSA10 antenna amplifier utilizes a phantom powering and low noise circuit design, it covers all the UHF wireless frequency point from 500 MHz to 900 MHz. Metal chassis ensure good appearance and durability. 1. Input : Antenna connection socket 2. -
Page 8: Specifications
9. SPECIFICATIONS WMSAD4P antenna distributor Input impedance 50Ω Output impedance 50Ω Antenna input socket Antenna output socket Gain 3 dB Frequency bandwidth 200 MHz Power supply DC 12 ~ 18V 3000 MA Weight 20 kg Dimensions 45 x 410 x 160 mm WMSA10 antenna amplifier Input impedance 50Ω... - Page 9 Linear Technologie • 11 rue du Puits Rochefort • 42 100 Saint-Etienne Tél: +33 (0)4 77 81 49 49 • Fax: +33 (0)4 77 81 49 40 • www.lineartech.fr...
