Summary of Contents for Gelikom CT1

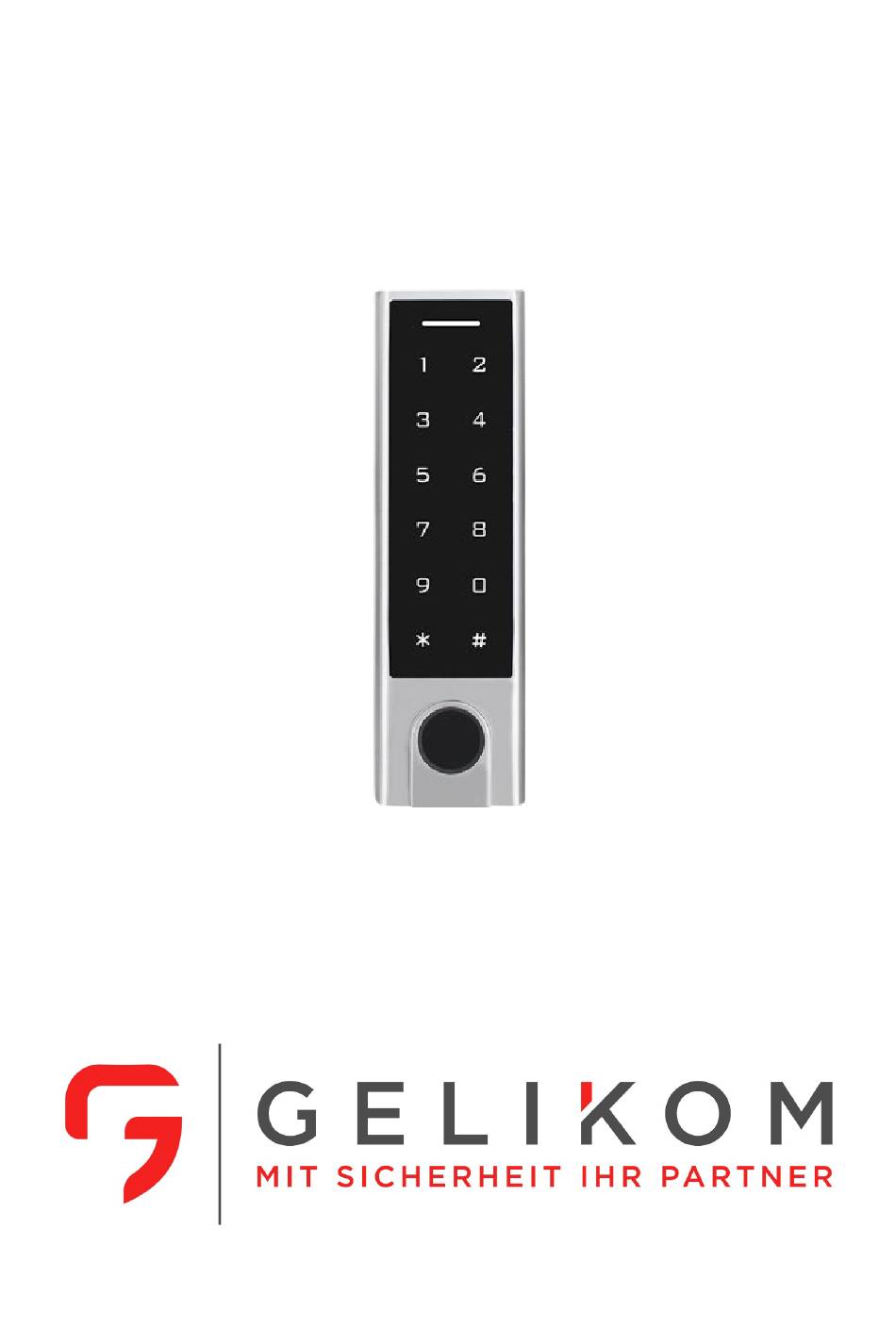

- Page 1 Manual Gelikom CT1...
- Page 2 Note: These operating instructions contain the installation instructions and programming instructions for the Gelikom CT1. It also contains important information on commissioning and handling. Please keep these operating instructions in a safe place, even if you sell them to third parties! A list of the contents can be found in the table of contents with indication of the corresponding page numbers on page 3.
-
Page 3: Table Of Contents
Content: 1) Introduction a. Properties page 4 b. Intended Use page 4 c. Safety Instructions page 4 d. Scope of delivery page 6 2) Wiring page 6 3) Installation page 7 4) Restore factory settings page 8 5) Registration & Login page 8 6) User Management a. -
Page 4: Introduction A. Properties
Introduction a) Properties • Waterproof according to IP 66 • Four different ways of entering (RFID, PIN, Fingerprint, APP) • Toggle Mode • Low power consumption: 90mA during usage, 25mA in idle mode • Management via TT Lock App • Android 4.3 / IOS 7.0 or higher •... - Page 5 • The access system must not be changed or converted, otherwise the guarantee / warranty will expire. • The access system must not be exposed to extreme temperatures, intense vibration or heavy mechanical loads. • Falling from a small height can lead to defects. •...
-
Page 6: Scope Of Delivery
• If you have any questions that are not answered in these operating instructions, please contact our technical customer service or other specialists. d) Scope of delivery Gelikom CT1 2x Screws 2x Wall Anchor 1x Screw driver 1x Diode Wiring... -
Page 7: Installation
Installation Kinked or squeezed cables may result in malfunctions, short circuits and a device defect. When drilling holes in the wall or tightening screws, make sure that no cables or lines are damaged. When selecting the mounting position, note that this must not be exposed to direct sunlight and the product must be protected from vibrations. -
Page 8: Restore Factory Settings
Restore factory settings To restore the factory settings, bridge the two contacts as shown in the picture until you hear two beeps. This signal confirms the successful reset of the device. Note: The reset deletes all users incl. Super Admin. The reset function can be disabled in the app. -
Page 9: User Management A. Managing Via App (Bluetooth)
(7) Give the lock the desired name and click "OK". (8) The lock should now have been successfully added. User Management Managing via App (Bluetooth) With this function, you can easily open your smart lock by app How to open by app: (1) Make sure your Bluetooth connection has been established. -
Page 10: Managing Ekeys
c) Managing eKeys eKeys can be created and sent to other people to allow them access via the app. This process must be carried out in the app. The recipient must also install the TT Lock app and create an account with their phone number. Normal eKey: The recipient has the options to lock/unlock the smart lock via Bluetooth, can see access records as well as query the current status. -
Page 11: Managing Fingerprints
• If you operate the lock with the gateway, the function "Add card remotely" is visible, with this RFID transponders can also be added remotely. (Requirement Android smartphone with NFC function) • RFID cards can be changed after creation. How to add RFID cards: (1) Click on "Media"... -
Page 12: Gateway (Optional) A. Gateway Usage
Gateway (optional) a) Gateway usage The app and the lock are directly connected via Bluetooth, which is why you cannot be attacked by the network. The gateway is a bridge between the Smart Lock and home WIFI networks. Each gateway can manage up to 5 locks. Through the gateway, the user can remotely/on the go open/close the lock (must be enabled in settings), read access records, manage users. -
Page 13: Disposal
After a short time, you can see in the app which locks are in their vicinity. Once the lock is bound to the gateway, it can be managed via the gateway Disposal Electronic and electrical products do not belong in household waste. Dispose of the products at the end of their service life in accordance with the applicable legal regulations.
