Page 1: Table Of Contents
Subordinate New Brand Smart Switch (WiFi + 2.4G) Model: WL-SW1 Contents Feature ................... 2 Parameters ..................3 Connec�on Diagram ..............4 Installa�on Diagram ..............5 Remote control instruc�on ............6-8 App control instruc�on ............9-14 ..........9 Download “Tuya Smart” App ..............
Page 2: Feature
1. Feature This product is made by WIFI+BLE+2.4G wireless technology with low consump�on and strong ability for an�-interference. It works with WIFI+BLE+2.4G remote control, user can control devices in short distance even router is oﬄine. Mini appearance can be inserted into EU and USA standard junc�on box, it’s easy for wiring and installa�on.
Page 3: Parameters

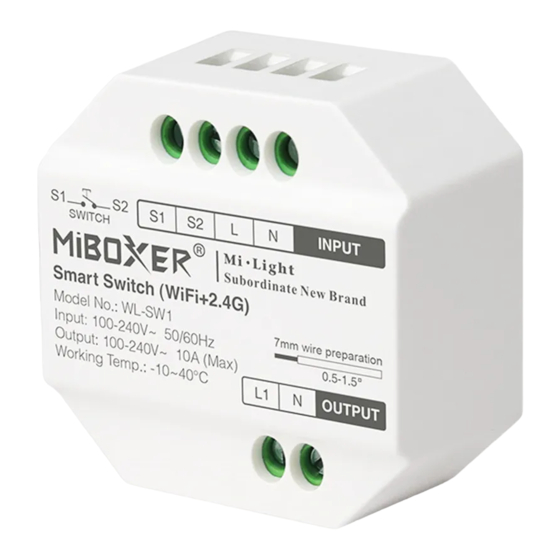

2. Parameter Model No.: WL-SW1 Input Voltage: 100-240V ~ 50/60Hz Output Voltage: 100-240V ~ 50/60Hz Output Current: Max 10A Switch Method: WiFi + 2.4G + (Push / Rocker switch) Wireless Technology: Wi-Fi IEEE 802.11b/g/n 2.4GHz RF: 2.4GHz Working Temperature: -10 ~ 40°C 2.4G RF Control Distance: 30m...
Page 4: Connec�On Diagram
3. Connec�on Diagram Input: AC100~240V PUSH Switch / Rocker Switch INPUT SWITCH OUTPUT Output: AC100~240V Various Electrical equipment (Eg: Ligh�ng, socket, fans, humidiﬁer, ﬁreplace Warning Ensure correct wiring for all cables before power on, otherwise it will damage devices. ——4——...
Page 5: Installa�On Diagram
4. Installa�on Diagram PUSH switch / Rocker switch Support following standing junc�on box, The depth of junc�on box is over 50mm ——5——...
Page 6: Remote Control Instruc�On
5. Remote Control Instruc�on 5.1. Linking 1). Ac�va�ng unlinking mode 1: short press “SET” 1 �me, indicator breathing. 2: power oﬀ dimmer 10 seconds, power on again. Indicator 3: (PUSH switch / Rocker switch) change “OFF” into “ON”. 2). Press ON in any group zones 3 �mes within 3 seconds(Eg: “...
Page 7 5.2. Unlinking 1). Ac�va�ng unlinking mode 1: short press“SET” 1 �me, indicator breathing. 2: power oﬀ dimmer 10 seconds, power on again. indicator 3: (PUSH switch/ Rocker switch) change “OFF” into “ON”. 2). Press ON in any group zones 5 �mes within 3 seconds(Eg: “...
Page 8 5.3. Compa�ble with remote controls (Purchased separately) B1 / B1-B / T1 K1 / K1-B FUT087 / FUT087-B S1-B / S1-W / S1-G 5.3. Transmi�ng func�on instruc�on Devices can transimit signal to another one if there is new device within 30m, countless control distance by auto transmi�ng. Auto transmi�ng Smart Switch Smart Switch...
Page 9: App Control Instruc�On
6. Smartphone APP control instruc�on 6.1. Download and install [Tuya Smart] app Search for [Tuya Smart] in applica�on store or scan following QR code to download and install the app. Please open the app click " Register " bu�on to create account while using it in the ﬁrst �me, Log in directly if you already had account.
Page 10: Pairing Network
6.2. Pairing Network (5G router is useless) 1). Connect with power source. 2). Indicator ﬂashes quickly (2 �mes per seconds) Please review following steps if indicator not ﬂashes quickly： ● Long press “SET”. ● Power on and power oﬀ device three �mes. (PUSH switch / rocker switch) connect with switch 5 �mes.
Page 11: Power On Status
6.3. Power On Status Click single device or group——Click “se�ng”——Click “Relay Status” ——select status. OFF: Device shutdown in any status if power source is oﬀ. On: Device turn on in any status if power source is on. Remember last status: Memorize the status before power oﬀ. Eg: Device is working and power failure happened, device is on while power source recovered.
Page 12: Switch Type
6.4. Switch Type Se�ng Click single device or group——Click “conﬁgura�on”——click “switch type”——select type (switch connec�on diagram in page 3). Rocker switch - ﬂip to change state: Eg: Device (use App or remote control) is on, push one �me “Rocker switch (in any status)”, device is oﬀ. Rocker switch - state synchronous: Eg: Device (use App or remote control) is on, “Rocker switch”...
Page 13: Timer Func�On
6.5. Timer Se�ng Click single device or group——Click “Timer”——select �mer types. A�en�on： 1. The �mer add max quan��es is 30 pcs. 2. “Countdown”“Circulate”“Random” will be stopped if there is power failure (use APP or remote or rocker switch to turn on or oﬀ) in current period, �mer func�on recovered in next period.
Page 14: Mul� Control Rela�On
6.6. Mul� Control Rela�on 1. Set up devices, turn on or oﬀ at the same �me. 2. Click device——click “ ”——click “mul�-control”——click “related on/oﬀ”——choose related device, rela�on is done. ——14——...
Page 15: Alexa Voice Control Instruction
7. Alexa voice control instruc�on Please add device into “Tuya Smart” app (check details in page 10) and start following steps: 1). Open Alexa App 2). Click “More” on the bo�om of right corner 3). Click “Skills & Games” 4). Click “ ”...
Page 16: Google Home Voice Control Instruction
8. Google Home voice control instruc�on Please add device into “Tuya Smart” app (check details in page 10) and start following steps: 1). Open Google Home App 2). Click “+” on the top of le� corner 3). Click “Set up device” 4).
Page 17: A�En�On
9. A�en�on 1. Please turn oﬀ power supply before installa�on. 2. Please ensure input voltage to be same as requirements from device. 3. Don’t disassemble device if you are not expert, otherwise it will damage it. 4. Please do not use the light in the place with widely range metal area or strong electromagne�c wave nearby, otherwise, the remote distance will be seriously aﬀected.
