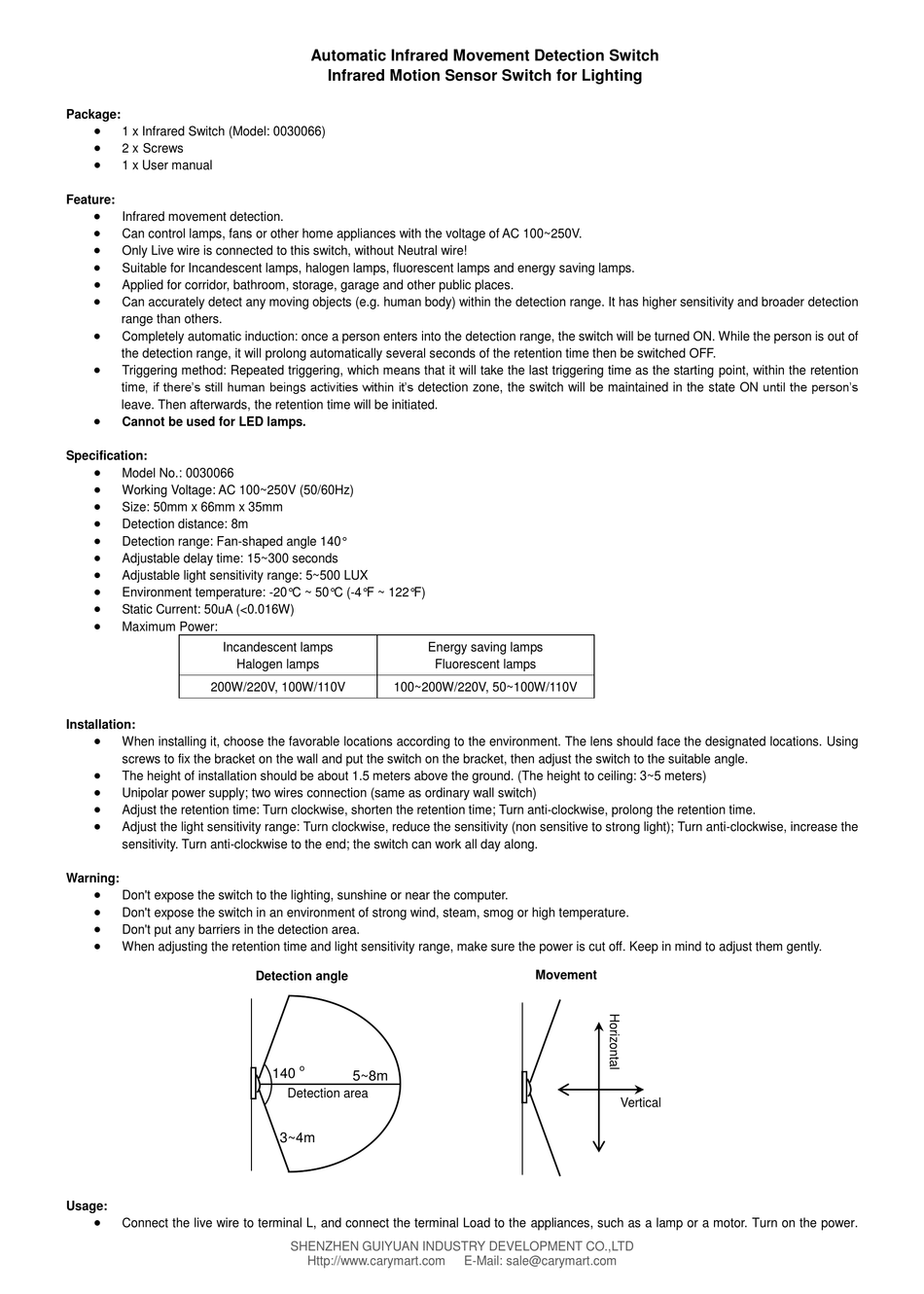

GUIYUAN INDUSTRY DEVELOPMENT 0030066 User Manual

Package:


1 x Infrared Switch (Model: 0030066)

2 x Screws

1 x User manual

Feature:


Infrared movement detection.

Can control lamps, fans or other home appliances with the voltage of AC 100~250V.

Only Live wire is connected to this switch, without Neutral wire!

Suitable for Incandescent lamps, halogen lamps, fluorescent lamps and energy saving lamps.

Applied for corridor, bathroom, storage, garage and other public places.

Can accurately detect any moving objects (e.g. human body) within the detection range. It has higher sensitivity and broader detection
range than others.

Completely automatic induction: once a person enters into the detection range, the switch will be turned ON. While the person is out of
the detection range, it will prolong automatically several seconds of the retention time then be switched OFF.

Triggering method: Repeated triggering, which means that it will take the last triggering time as the starting point, within the retention
time, if there's still human beings activities within it's detection zone, the switch will be maintained in the state ON until the person's
leave. Then afterwards, the retention time will be initiated.

Cannot be used for LED lamps.

Specification:


Model No.: 0030066

Working Voltage: AC 100~250V (50/60Hz)

Size: 50mm x 66mm x 35mm

Detection distance: 8m

Detection range: Fan-shaped angle 140°

Adjustable delay time: 15~300 seconds

Adjustable light sensitivity range: 5~500 LUX

Environment temperature: -20° C ~ 50° C (-4° F ~ 122° F)

Static Current: 50uA (<0.016W)

Maximum Power:
Incandescent lamps
200W/220V, 100W/110V

Installation:


When installing it, choose the favorable locations according to the environment. The lens should face the designated locations. Using
screws to fix the bracket on the wall and put the switch on the bracket, then adjust the switch to the suitable angle.

The height of installation should be about 1.5 meters above the ground. (The height to ceiling: 3~5 meters)

Unipolar power supply; two wires connection (same as ordinary wall switch)

Adjust the retention time: Turn clockwise, shorten the retention time; Turn anti-clockwise, prolong the retention time.

Adjust the light sensitivity range: Turn clockwise, reduce the sensitivity (non sensitive to strong light); Turn anti-clockwise, increase the
sensitivity. Turn anti-clockwise to the end; the switch can work all day along.

Warning:


Don't expose the switch to the lighting, sunshine or near the computer.

Don't expose the switch in an environment of strong wind, steam, smog or high temperature.

Don't put any barriers in the detection area.

When adjusting the retention time and light sensitivity range, make sure the power is cut off. Keep in mind to adjust them gently.

Usage:


Connect the live wire to terminal L, and connect the terminal Load to the appliances, such as a lamp or a motor. Turn on the power.
Automatic Infrared Movement Detection Switch
Infrared Motion Sensor Switch for Lighting
Halogen lamps
100~200W/220V, 50~100W/110V

Detection angle

o
140
5~8m
Detection area
3~4m
SHENZHEN GUIYUAN INDUSTRY DEVELOPMENT CO.,LTD
Http://www.carymart.com
Energy saving lamps
Fluorescent lamps
Movement
E-Mail: sale@carymart.com
Vertical
