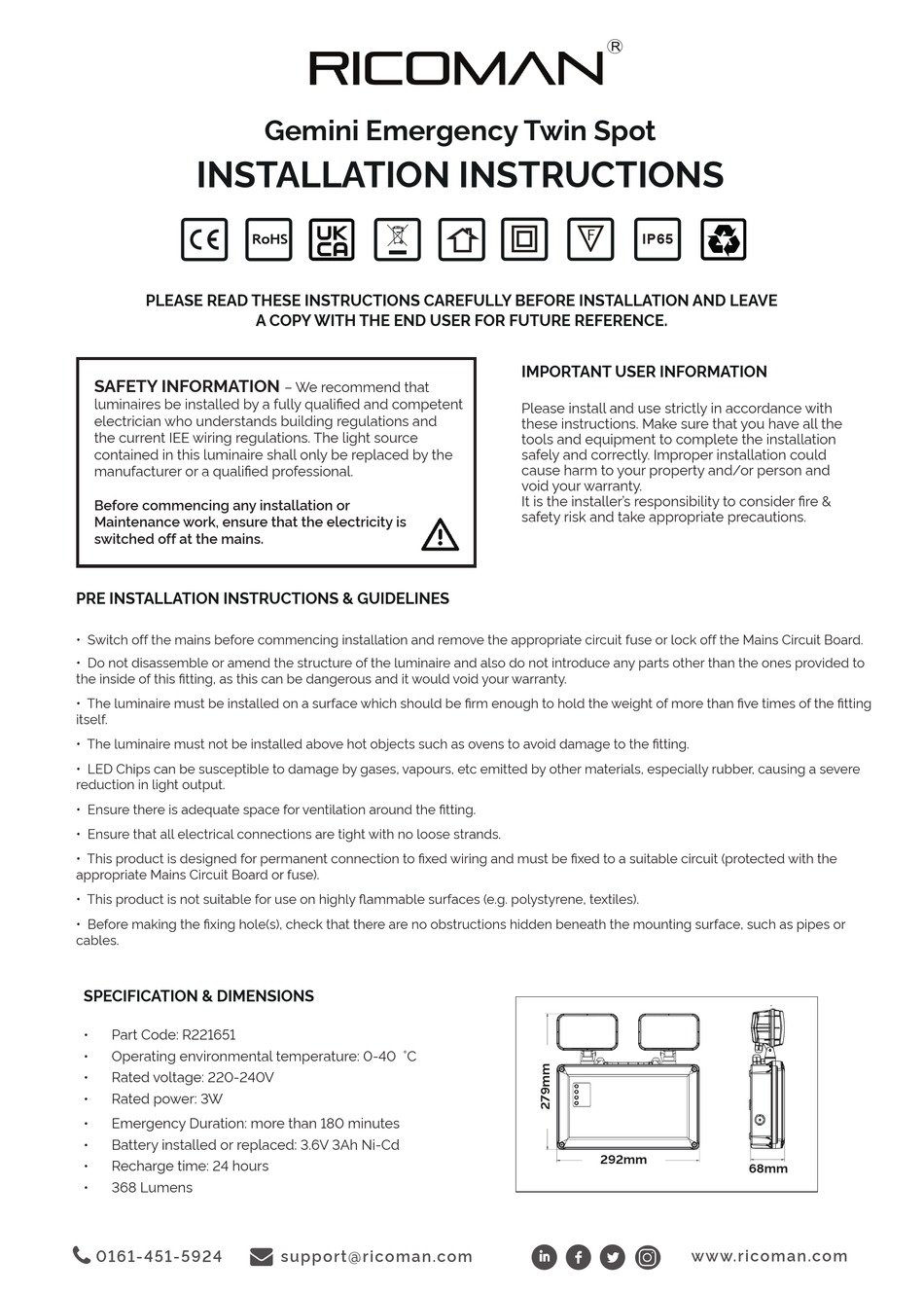

RICOMAN Gemini Installation Instructions

INSTALLATION INSTRUCTIONS
PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE INSTALLATION AND LEAVE
SAFETY INFORMATION
luminaires be installed by a fully qualified and competent
electrician who understands building regulations and
the current IEE wiring regulations. The light source
contained in this luminaire shall only be replaced by the
manufacturer or a qualified professional.
Before commencing any installation or
Maintenance work, ensure that the electricity is
switched off at the mains.
PRE INSTALLATION INSTRUCTIONS & GUIDELINES
• Switch off the mains before commencing installation and remove the appropriate circuit fuse or lock off the Mains Circuit Board.
• Do not disassemble or amend the structure of the luminaire and also do not introduce any parts other than the ones provided to
the inside of this fitting, as this can be dangerous and it would void your warranty.
• The luminaire must be installed on a surface which should be firm enough to hold the weight of more than five times of the fitting
itself.
• The luminaire must not be installed above hot objects such as ovens to avoid damage to the fitting.
• LED Chips can be susceptible to damage by gases, vapours, etc emitted by other materials, especially rubber, causing a severe
reduction in light output.
• Ensure there is adequate space for ventilation around the fitting.
• Ensure that all electrical connections are tight with no loose strands.
• This product is designed for permanent connection to fixed wiring and must be fixed to a suitable circuit (protected with the
appropriate Mains Circuit Board or fuse).
• This product is not suitable for use on highly flammable surfaces (e.g. polystyrene, textiles).
• Before making the fixing hole(s), check that there are no obstructions hidden beneath the mounting surface, such as pipes or
cables.
SPECIFICATION & DIMENSIONS
• Part Code: R221651
• Operating environmental temperature: 0-40 °C
• Rated voltage: 220-240V
• Rated power: 3W
• Emergency Duration: more than 180 minutes
• Battery installed or replaced: 3.6V 3Ah Ni-Cd
• Recharge time: 24 hours
• 368 Lumens
0161-451-5924

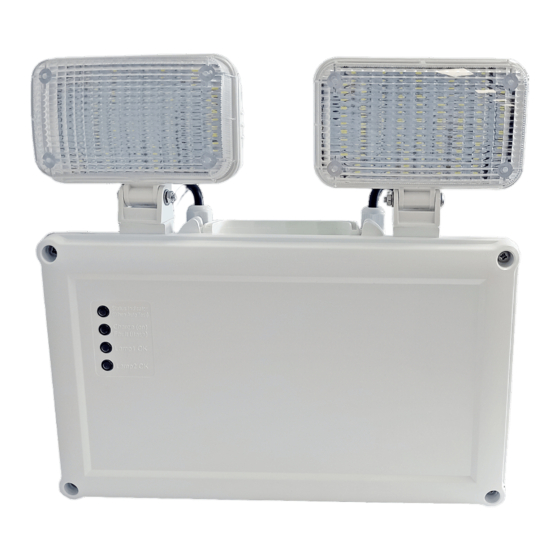

Gemini Emergency Twin Spot
RoHS RoHS
A COPY WITH THE END USER FOR FUTURE REFERENCE.
– We recommend that
support@ricoman.com
IP65
IMPORTANT USER INFORMATION
Please install and use strictly in accordance with
these instructions. Make sure that you have all the
tools and equipment to complete the installation
safely and correctly. Improper installation could
cause harm to your property and/or person and
void your warranty.
It is the installer's responsibility to consider fire &
safety risk and take appropriate precautions.
292mm
i f l
68mm
