Summary of Contents for DUUN ST2440

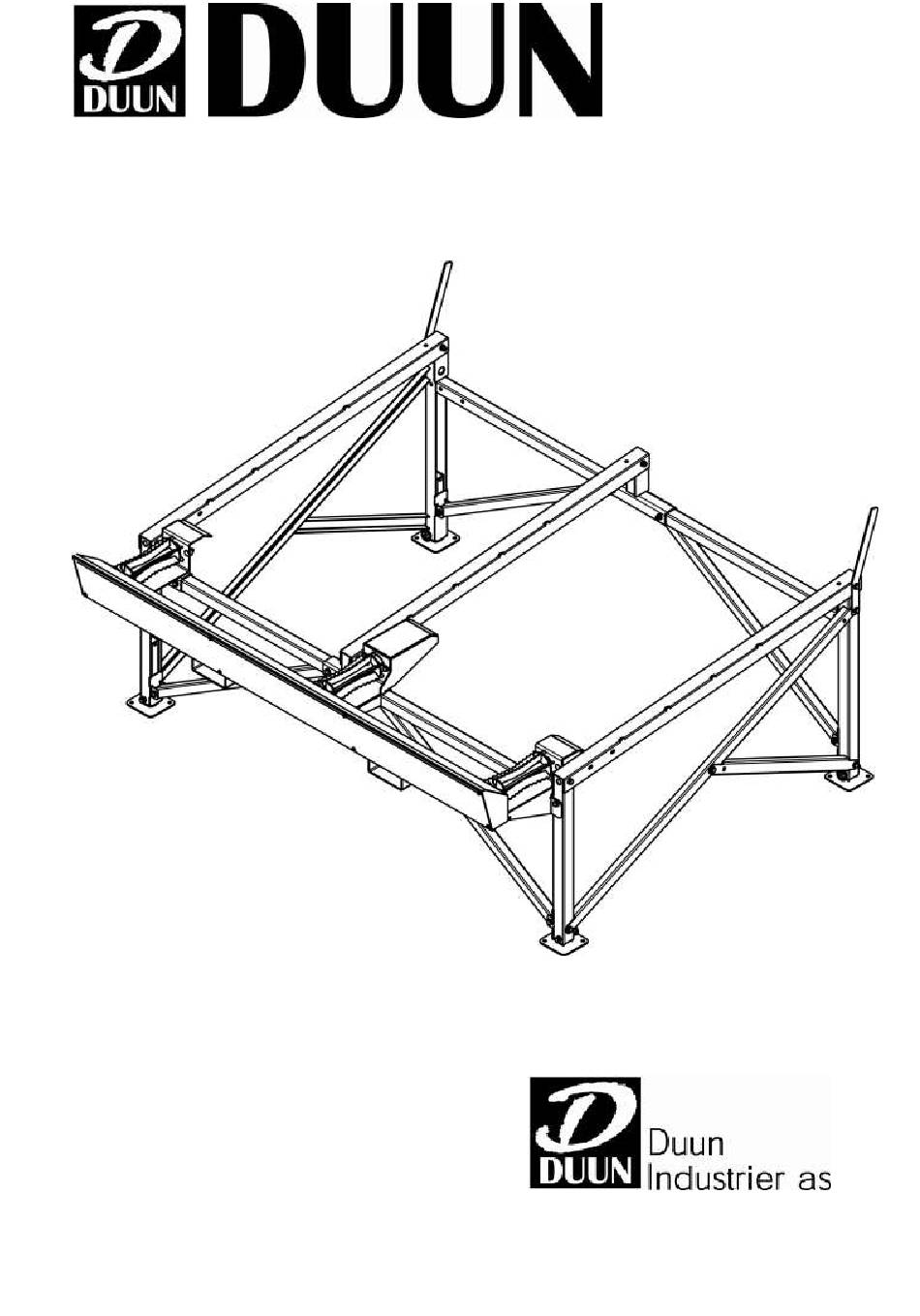

- Page 1 Log rack ST2440 Edition 1-2010 Instruction manual 7630 Åsen, Norway Tlf: +47 74 01 59 00 Fax: +47 74 01 59 10 Foretaksnr: NO 980.400.212.mva www.duun.no...
- Page 2 Guarantee Duun Log Rack ST2440 has a 12 month guarantee against defects in materials and workmanship. Parts that are not originally manufactured by Duun Industrier AS, for example shafts, bearings etc. are subject to these suppliers’ guarantees and terms. Parts that are considered to be wearing parts are not part of the basis of the guarantee - these have been specified in a separate survey on the bottom part of this page.
- Page 3 Contents 1. Terms og guarantee P. 2 2. Contents P. 3 3. Technical data sketch P. 4 4. Technical data text P. 5 5. Introduction P. 7 6. Safety illustrations P. 8 and 10 7. Safety text P. 9 and 11 8.
- Page 4 Technical data Sketch...
- Page 5 Properties Weight: Rack 103kg Hydraulic parts 95kg Manual parts 14kg Width 2,460mm Loading depth 1,735 mm Height of the gable 300mm Height above the ground on the back 1015-1,135mm Height above the ground at the rollers 885-1,005mm Width in-feed rollers with hydraulic feeding 300mm Width in-feed rollers with manual feeding 200mm...
- Page 6 Introduction...
- Page 7 All Duun tractor driven machines are constructed and tested in close cooperation with the users in order to produce well functioning and user friendly products.
- Page 9 Safety 1. Instruction manual All operators, mechanics and the owner must be well acquainted with the instruction in this instruction manual before the machine is taken into use. You should always work with care when you employ agricultural machinery. Read and observe the safety instructions in this binder.
- Page 11 7. Risk of falling objects Be particularly aware of the fact that logs may fall down from the rack during use, particularly during loading and feeding on the wood board. We recommend strongly that you use protective footwear during this work. 8.
- Page 12 Supplementary equipment...
- Page 13 Supplementary equipment Hydraulic feeder part number 141409002 May be fitted on supplied racks or fitted originally on ordering of the feeder board. On fitting of hydraulic feeder, this is serially connected to the feeder conveyor of the wood machine. New machines have been prepared for connection of hydraulic feeder and connecting parts have been fitted.
- Page 15 Assembly instructions log rack ST2440 Duun ST2440 is delivered flat packed from the factory and will require assembly before use. Study the sketches in order to assemble the product correctly. For details regarding the bolted connection, please see the spare part list pages in this document.
- Page 16 DECLARATION OF CONFORMITY...
- Page 17 Spare parts catalogue DUUN Log Rack ST2440...
- Page 18 Spare parts catalogue DUUN Log Rack ST2440 Group: 141-3- Frame and overall view Edition: 1.2010...
- Page 19 Spare parts catalogue DUUN Log Rack ST2440 Group: 141-3- Frame and overall view Edition: 1.2010 Pos.No Quantity Designation Part No. Comment Leg front 14140035 Strut right hand side long 14140016 Hexagon screw M12-30 galv. 2422348 Washer M12 galv. 2531069 Hexagon nut M12 locking galv.
- Page 20 Spare parts catalogue DUUN Log Rack ST2440 Group: 141-3- Parts for manual feeding Edition: 1.2010...
- Page 21 Spare parts catalogue DUUN Log Rack ST2440 Group: 141-3- Parts for manual feeding Edition: 1.2010 Pos.No Quantity Designation Part No. Comment Washer M12 galv. 2531069 Hexagon nut M12 locking galv. 2483611 Hexagon screw M12x30 galv. 8.8 2422348 Cage manual roller left hand side 14140026 Screw hexagon M20x240 8.8 galv.
- Page 22 Spare parts catalogue DUUN Log Rack ST2440 Group: 141-3- Hydraulic roller + chain box Edition: 1.2010...
- Page 23 Chain 5/8” 165 chain links with chain lock 2963107 Chain 5/8” 143 chain links with chain lock 2963103 CE tag 90x48 Risk of crushing 2935069 DUUN ST2440 nameplate H-65mm 2935149 ½” hose R2T L-4500 Log Rack 2958184 Hydraulic gasket 1/2”...
- Page 24 Spare parts catalogue DUUN Log Rack ST2440 Group: 141-3- Slave rollers hydraulically operated Edition: 1.2010...
- Page 25 Spare parts catalogue DUUN Log Rack ST2440 Group: 141-3- Slave rollers hydraulically operated Edition: 1.2010 Pos.No Quantity Designation Part No. Comment Bracket hydraulic roller left hand side 14140021 Feeder roller slave 14140023 Flange bearing UCFL 206 30mm 2954171 Bushing 1411167 Locking head screw M10x35 galv.
- Page 26 Spare parts catalogue DUUN Log Rack ST2440 Number index Edition: 1.2010 Part No Designation Pos.No Ill. page Text page 1261179 Nut plate 1411167 Bushing 1411167 Bushing 1411378 Pole 2115127 Cotter for hydraulic motor 2115129 Cotter 8x7 L32 DIN 6885A 2115129 Cotter 8x7 L32 DIN 6885A 2245031 Supporting roller Ø60/84 x L200...
- Page 27 2531086 Washer M20 galv. 2534078 Spring washer M16 galv. 2556142 Locking pin Ø10x40 2935069 CE tag 90x48 Risk of crushing 2935149 DUUN ST2440 nameplate H-65mm 2954116 Chain tensioning wheel 5/8” 14t. 2954171 Flange bearing UCFL206 30mm 2954171 Flange bearing UCFL 206 30mm 2955513 Hydraulic motor 300ccm 2957768 Hexagon nipple GEK BSP ½”...
