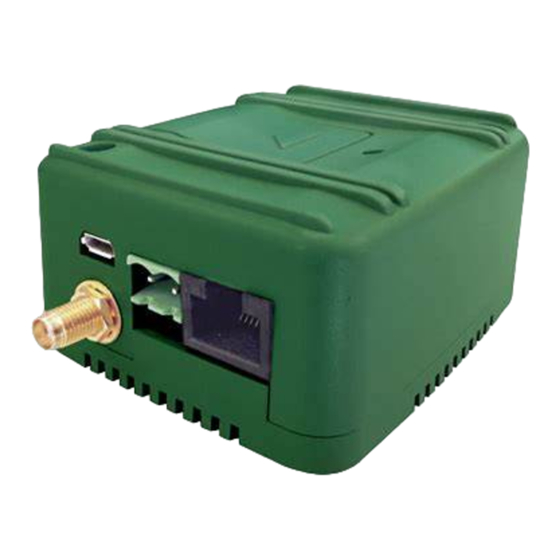

Summary of Contents for DEXMA DEXGate2

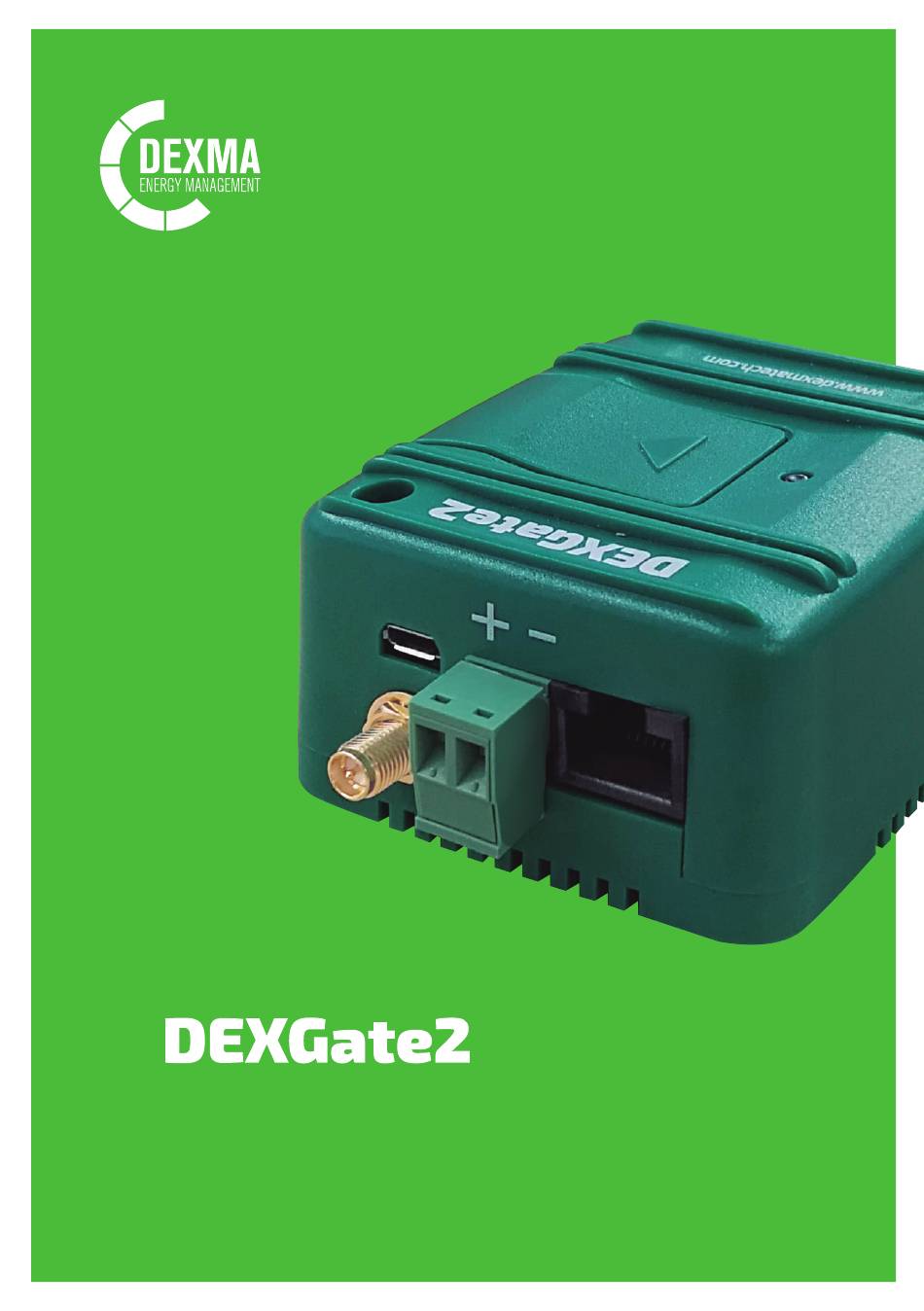

  • Page 1 Quick Start Guide...

  • Page 2: Connection Diagram

    - 1 -wire - VCC out Requirements • DEXGate2 • A computer or tablet with wifi • Power supply • Ethernet network cable • Wifi Antenna • Network configuration data • 3G Antenna (only for DEXGate2-3G) • SIM Card (only for DEXGate2-3G)

  • Page 3: Internet Settings

    (default for both is “admin”). 4. Write down the device ID, that you will find on the menu “Status” at your DEXGate2 or at the sticker on the device, which will be necessary to register the device at DEXCell Energy Manager (the identifier has the format 00D09 ...).

  • Page 4: Set Date And Time

    2. Click on “Register a new gateway” and select DEXGate2 3. Enter a name and the serial number or “identifier” of DEXGate2 (lowercase letters) that you will find on the menu “Status” at your DEXGate2 or at the sticker on the device. Select a time-zone and click on Save.

  • Page 5: Remote Access

    Each meter works in a particular way, so we strongly recommend reading the meter user manual. The meter configuration can be done from the web management interface in DEXGate2. To connect Modbus meters via RS485, you must use terminals 3 (-) and 7 (+). Ground is 14...
  • Page 6 IEC 870-5-102 configuration (just for Spain): Connect the optical probe (supplied as an op- tion) on the Micro-USB port and the other end to the fiscal meter IEC 870-5-102 Then you must fill in the communication parameters of the counter at “IEC 870-5-102 Confi- guration”.

  • Page 7: Technical Information

    Technical information Ports Serial port: Integrated RS485 and RS232 port Eth0: The default address is 192.168.1.150. WiFi: It uses the address 172.16.0.1. Provides a 172.16.0.x IP address. USB: Serial USB port Specifications Processor: Freescale i.MX28 at 454 MHz (ARM) DRAM: 128MB DDR2 DRAM. Power requirements: 7V - 50V DC.
  • Page 8 Marie Curie, 8-14 08042 Barcelona T. +34 93 181 01 95 support@dexmatech.com www.dexmatech.com online.dexmatech.com...
