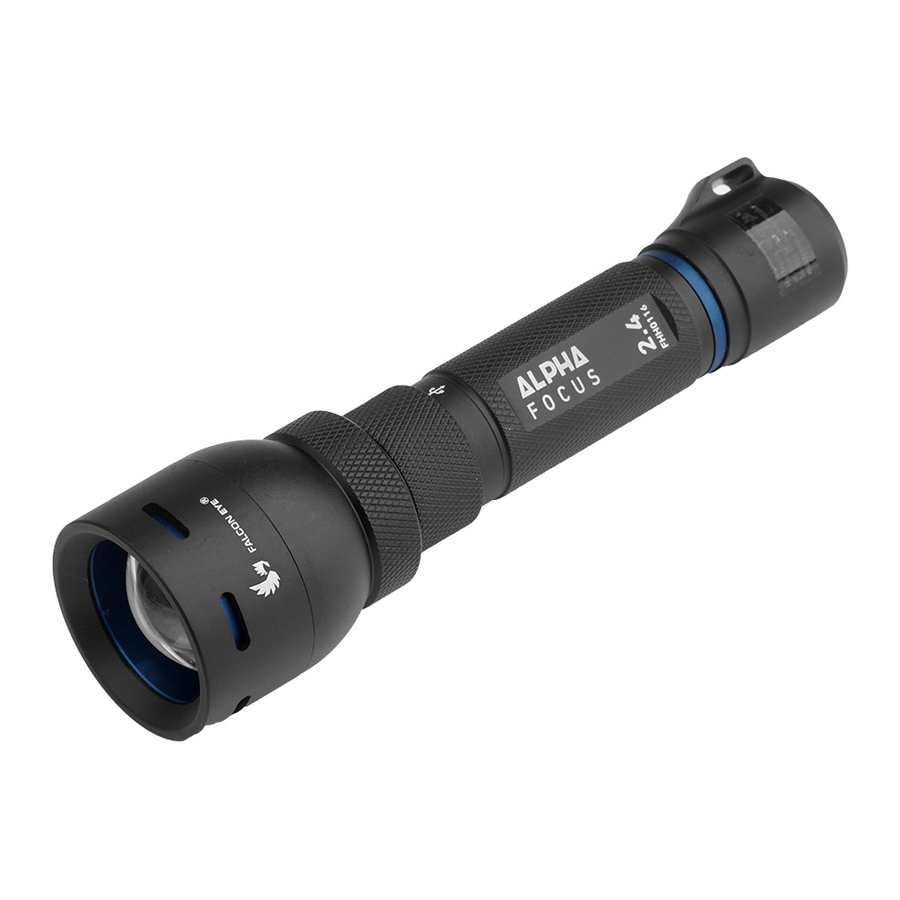

FALCON EYE ALPHA FOCUS 2.4 FHH0116 - 500 Lumens LED Flashlight Manual

Table of Contents

Contents

1 SPECIFICATION
2 SAFETY
3 CHARGING
- 3.1 CHARGING THE TORCH USING THE USB CONNECTION
- 3.2 CHARGING THE STORAGE BATTERY USING THE CHARGING STATION
4 INSTRUCTIONS FOR USE OF THE TORCH
5 OPERATION AND USE OF Li-ion STORAGE BATTERIES
6 GENERAL INFORMATION
7 Modifications and repairs
8 Warranty
9 Documents / Resources
- 9.1 References
- 9.2 Download manual

SPECIFICATION

Light source	Cree^® XP-L LED
Runtime and operation modes	High– 1 h 55 min
	Low
	Pulse
Charging time	4-6 h / Micro USB
Power supply	Li-ion 3,7V / 2200 mAh
Dimensions	43 × 163 mm
Weight	235,7 g
Beam distance	178 m
Shock resistance	1 m

SAFETY

To reduce the risk of fire, electric shock or bodily injury, please read the detailed instructions for use of the torch.
Never use electric charging cables to carry the torch.
Do not use any USB extension cables when inserting the micro-USB cable into the torch.
Do not use the charger if damaged. A damaged power supply or damaged cables must be replaced immediately.
Do not attempt to repair the torch or charging cables on your own. Have damaged equipment repaired by a properly qualified service centre. Any damaged cables must be replaced.
Use only the original battery packs recommended by the manufacturer.
The torch, the storage battery or the disposable batteries must not be thrown into fire, even if damaged or worn (risk of explosion!).
Minor leaks of electrolyte from the storage battery cells may occur when they are used under extreme loads or at extreme temperatures. Such leaks do not necessarily mean that the storage batteries are damaged. However, if the leakproofness of the cells becomes reduced and the leak contaminates the skin, you should immediately wash the contaminated skin area with soap and water.

Using the torch for purposes other than intended is not recommended. The manufacturer explicitly invalidates the guarantee if the torch has been used for other than its intended purpose.

CHARGING

The torch needs to be charged for 4-6 hours before first use. BLACK EYE 1100 torch should be fully charged before first use. To reach full storage battery capacity, allow the battery to fully charge and fully discharge a number of times.

CHARGING THE TORCH USING THE USB CONNECTION

Unscrew the ring of the Micro USB charging port cover, located in the front part of the torch handle, by turning counterclockwise. Connect the USB cable to the power source, e.g. phone charger, computer USB port, or Power Bank. Turn on the torch. In order for the torch to charge, the switch must be in the "ON" position. This will allow to close the charging circuit. Next, gently insert the other side of the power supply cord into the Micro-USB socket, paying attention to correct positioning of the socket relative to the plug. The start of the torch charging process should be signalled by the flashing of the red diode located near the charging socket. If the diode flashes green, this can mean that the torch switch is not in the "ON" position – no charging, or that the process of charging has ended – battery charged.

CHARGING THE STORAGE BATTERY USING THE CHARGING STATION

To remove the storage battery from the torch, unscrew the rear switch by turning counterclockwise. Remove the storage battery from the torch and place it in the charging station for storage batteries type 18650 – 3.7 V. After the storage battery has been charged, place it in such a way that the positive contact faces the light head, and tighten the switch module until it will not turn any more.

INSTRUCTIONS FOR USE OF THE TORCH

To turn on the torch, press the button located in the back of the handle. The modes change in the following sequence:
High/Off/Low/Off/Blinking mode/Off.

The torch features an infinitely variable adjustment of the light beam. To change the light beam, move the light head forward or backward relative to the handle.

OPERATION AND USE OF Li-ion STORAGE BATTERIES

To obtain maximum performance and durability of your storage battery, you should:

Charge the torch battery to its full capacity when it is charged for the first time (4-6 hrs).
To obtain safe and long-term operation of rechargeable batteries, follow the instructions below:

Do not excessively drain Li-ion storage batteries. This can damage your storage battery or shorten its life.
If the storage battery is excessively drained, there is a risk of a minor leak of alkaline electrolyte from the safety valve on the top of the storage battery. White powder, which can contribute to the interruption of electrical connection between the contacts, may indicate that a leak has occurred. Take necessary caution when handling batteries showing traces of leaks. The electrolyte is highly corrosive and and burn or irritate the skin or eyes.

Make sure you use only genuine parts designed for ALPHA 2.4 FOCUS torch. Using spare parts from other manufacturers may affect the quality and parameters of the product. Rechargeable batteries used in this product may be subject to re-processing. Pursuant to the EU's WEEE regulation, storage batteries must not be disposed of with normal household waste. Instead, they must be disposed of at designated battery collection points. Contact the management of your local waste collection company for advice on the required ways and types of re-processing, or other instructions.

GENERAL INFORMATION

Do not short circuit the battery. Permanent damage to the battery may result.
Never insert any foreign metallic objects into the charging socked of the flashlight.
Never attempt to use the battery charger provider for other products
Never attempt to use the battery charger provided for other products
Never leave the unit in extremly high temperatures while recharging.
It is advisable to use the unit from time to time in order to maintain the unit in good condition and always recharge after used and recharge the unit when not used for over 3 months or longer.
Use batteries in extreme condition may affect the service life, such as extreme temperature, deep cycle and extreme overcharge and over discharge.
Batteries should be stored in a cool and dry place
Be sure to use manufacturer's replacment parts.
Do not keep the battery near heat-generating devices (eg radiators)
Do not throw the battery into fire
Do not remove the battery from the rubber casing
Do not pull the battery by the cord
Do not pierce the battery
Do not throw the battery
Do not dispose of the battery in water
Before each use and / or charging check that the battery and power supply cables are not damaged (abrasions and other mechanical faults)
When charging is finished, remove the plug from the charger
- Charging - the LED on the power supply lights red - LED on the power supply is green
- Charged battery - LED on the power supply is green

Modifications and repairs

Unless authorized by MacTronic, any modifications and repairs are forbidden.

Warranty

The lamp is covered with a 2-year warranty for material and workmanship defects. The warranty does not cover products showing signs of normal use, rusted, modified, improperly stored, damaged from falls and poor handling, with leaking batteries and used against their intended purpose.

Do not look directly into the light source! It is not recommended to let children use this flashlight!
