TITAN MANUAL
On behalf of our entire team at Ex Machina Soundworks, thank you for choosing Titan, and
welcome to the family. Whether you use them as professional tools, for your own listening
pleasure, or maybe even for a bit of both, we are confident they will reward you with a level of
accuracy and realism that will redefine what you come to expect from a loudspeaker.
To activate your extended warranty, and to receive product updates, please register your serial
number at
www.exmachinasound.com/register
Advertisement
Related Manuals for Ex Machina Soundworks TITAN
Summary of Contents for Ex Machina Soundworks TITAN
- Page 1 TITAN MANUAL On behalf of our entire team at Ex Machina Soundworks, thank you for choosing Titan, and welcome to the family. Whether you use them as professional tools, for your own listening pleasure, or maybe even for a bit of both, we are confident they will reward you with a level of accuracy and realism that will redefine what you come to expect from a loudspeaker.
- Page 2 TABLE OF CONTENTS ● Important Safety Information …………………………………………….2-5 ● Key Features ………………………………………………………………. 6-7 ● Initial Unboxing & Setup ………………………………………………..7-10 ● Connections & Controls ………………………………………………..11-12 ● Technical Specifications & Measurements …………………….…..… 13-14 ● Troubleshooting ………………………………………………………...… 15 ● Warranty & Servicing …………………………………………………..16...
- Page 3 SECTION 1: IMPORTANT SAFETY INFORMATION NOTE • The information in this manual is subject to change without notice. The manufacturer assumes no responsibility for any errors that may appear in this manual. The reproduction, transmission or use of this document or contents is not permitted without express written authorization.
- Page 4 Caution: To reduce the risk of electric shock, do not open the loudspeaker. There are no user-serviceable parts inside. Refer servicing to your dealer or qualified service personnel. Never replace any fuse with a value or type other than those specified. Never bypass any fuse.
- Page 5 Do not expose this product to rain or moisture, never wet the inside with any liquid and never pour or spill liquids directly onto this unit. Please do not put any objects filled with liquids onto the speaker. Use only with stands that are rated to handle the weight of your loudspeaker. Additionally, make sure the stand you use is able to support the physical dimensions of the loudspeaker.
- Page 6 You must ensure free airflow behind the speakers to maintain sufficient cooling, with a minimum distance of at least 4 inches (100mm) to any wall. Avoid exposing the loudspeaker to any open flame. Do not expose the loudspeaker to water. Do not set up the loudspeaker near a water source.

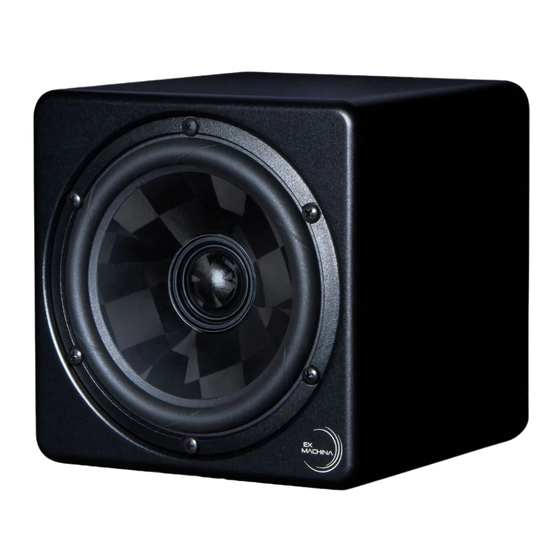

- Page 7 SECTION 2: KEY FEATURES OF TITAN COAXIAL WOOFER/TWEETER Titan’s 15cm coaxial was adapted and reimagined for full range use from the 15cm coaxial designed for Ganymede. While a larger overhung surround was necessary to achieve the higher excursion demanded from a 2-way design, Titan’s coaxial otherwise retains all of the technological attributes that make our drivers truly exceptional performers.
- Page 8 CABINET While fully sealed like all our loudspeakers, Titan is the first loudspeaker in our line to depart from our traditional use of Valchromat, opting instead for an extraordinarily rigid aluminum extrusion, which comes with several benefits for the application.
- Page 9 The final, “secret sauce” of our loudspeakers is our proprietary, in-house DSP deployment and calibration technology. The Titan AMP/DSP packs employ two 5th generation SHARC+ DSP processors, as well as flagship AKM AK4493 and AK5572 based discrete conversion. As the...
- Page 10 This listening position very closely tracks our 90x90° conical power average, and in the case of Titan, will obviate any direct on axis magnitude deviations from the surround geometry. This suggestion is applicable to any number of object points, but below is...
- Page 11 3 feet apart tweeter to tweeter. 4. Out of the box, Titan is linearized to 80hz flat, and F6 at 58hz. Loading adjustments are available on the amplifier pack to adjust response for on-wall mounting (O.W.) or full space mounting (F.S.) when placed in free space on a stand or other surface.
- Page 12 SECTION 4: CONNECTIONS AND CONTROLS 1. IEC INLET Titan uses auto-switching power supplies, and will automatically adapt to 110/220v power operation. Should you ever need to replace the provided 6 foot IEC cable, please ensure you use a properly grounded, 3-prong IEC of at least 16AWG. Never use a 2-conductor power cable or leave the ground disconnected.
- Page 13 Titan is factory calibrated for optimal performance in full space setups (F.S.), away from side and rear walls. The O.W. (on wall) boundary control can be engaged when Titan is mounted directly on a wall or ceiling surface to compensate for the build up in low frequency energy.
- Page 14 SECTION 5: TECHNICAL SPECIFICATIONS PERFORMANCE ● Linear Frequency Response: +/- 2db 80hz - 30khz (measured at 30cm cal position) ● Low Frequency Cutoff: -6db at 58hz ● Linear Phase Response: +/- 15° 50hz - 30khz ● Maximum SPL @ 1m: 106db ●...
- Page 15 SECTION 6: TROUBLESHOOTING If your loudspeaker is not reproducing sound, start by checking all power and signal connections. Ensure that the power indicator light on the rear panel is on, and that audio signal is coming into the loudspeaker. If the loudspeaker is still not reproducing sound, power cycle the unit.
- Page 16 6 years from the date the unit was registered. ● The warranty is tied to the product not to the customer and is transferable. ● During the warranty period, Ex Machina Soundworks will repair or replace a faulty unit (per our discretion).
