Summary of Contents for QMAX Tekion TDD1

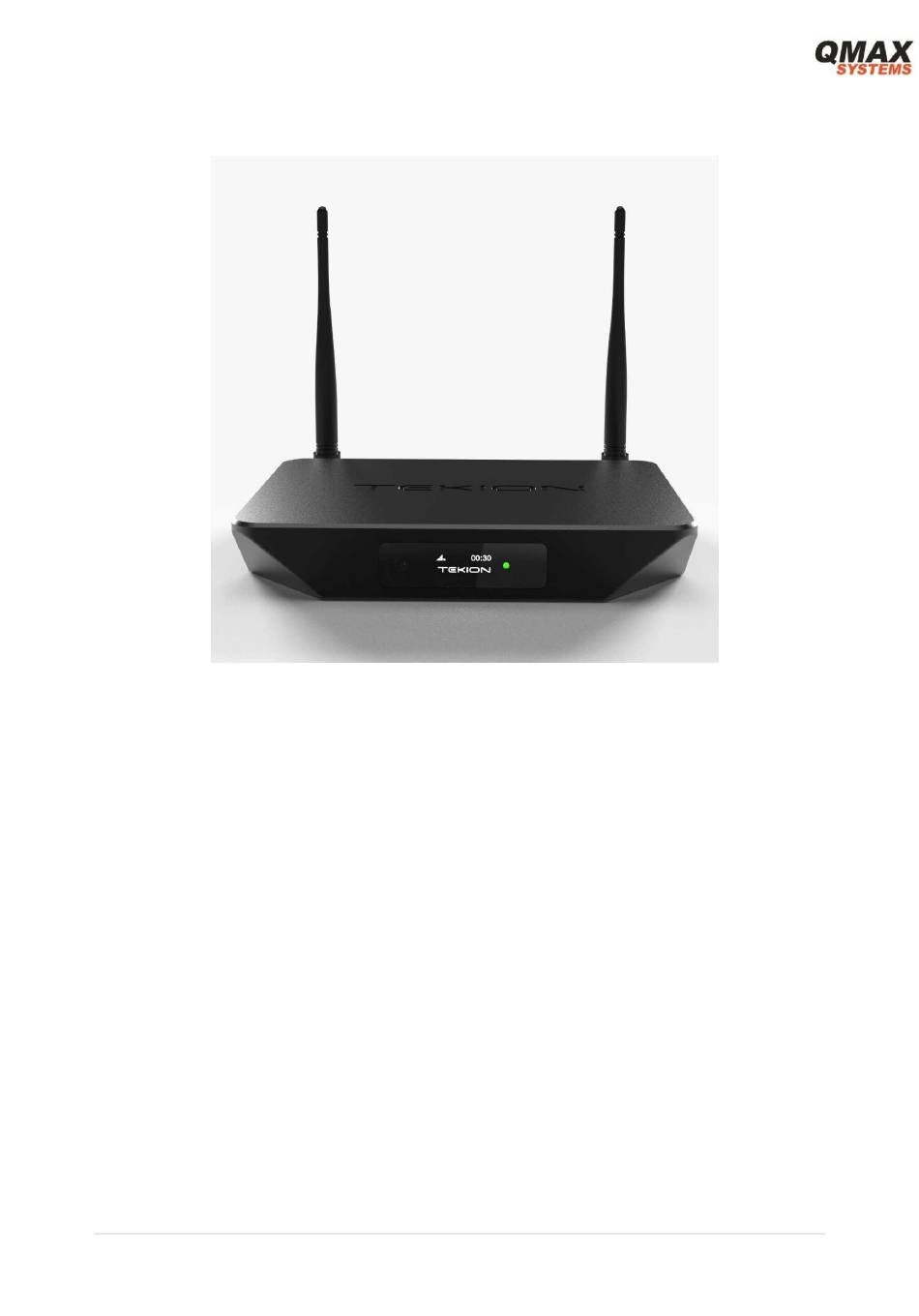

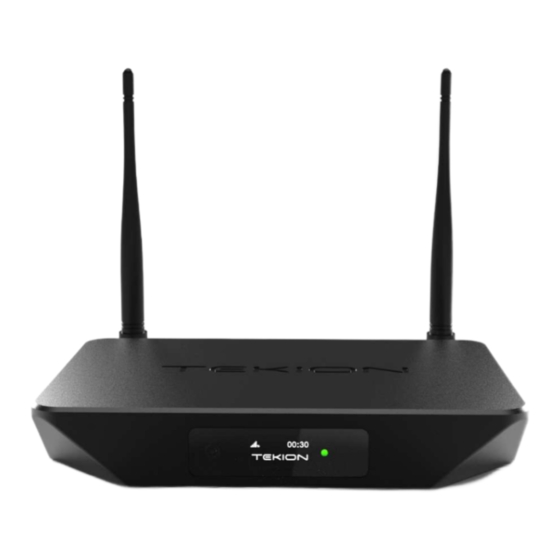

- Page 1 Tekion Digital Displays Model: TDD1 HDMI IN 2.x | 4K | POE | HDCP2.x Encrypted User Manual Page...
- Page 2 Revision History Doc Version Release Date Remarks Mar 2023 Initial version Page...
-
Page 3: Table Of Contents
Contents Introduction ....................................... 4 Dimensions ......................................4 In the Box Content ..................................... 5 TDD1 Specifications ................................... 5 Connectors ......................................6 Back Side: ....................................... 6 Side View(Left) : ..................................... 7 Side View(Right) : ....................................7 Remote Interface ....................................8 Power ON ......................................9 Connecting to Internet .................................. -
Page 4: Introduction
1. Introduction TDD1 is Customized product as per the requirements of Tekion. It is used typically with TVs in the Customer Lounge of various Business to display tailored content. TDD1 is connected though either Ethernet or Wi-Fi to the backend cloud system of Tekion. TDD1 is controlled through the backend, which includes control of apps, settings, content to display, factory reset, OS lockdown etc. -
Page 5: In The Box Content
3. In the Box Content 1. TDD1 Box 2. Antennas x2 3. Remote 4. IR Extender 5. HDMI IN Cables x2 6. AAA Batteries x2 4. TDD1 Specifications Aluminium Shell Material OLED Front Display Android 11 RK3566 ARM Cortex-A55 Quad Core 4 GB RAM Memory 32 GB... -
Page 6: Connectors
5. Connectors Back Side: Connector Functionality Ethernet LAN, POE+ 30W HDM IN Source input supports upto 1080p@60, 1080i@60. Can connect HDMI OUT of PC, CableBox etc to this port. HDMI OUT Supports upto 4K@60, 1080i@60. Connect this to the HDMI INPUT of the TV or Monitor. Audio Disabled Power Jack... -
Page 7: Side View(Left)
Side View(Left) : Connector Functionality Micro USB Disabled IR EXT 3.5mm Jack for IR extender Disabled Side View(Right) : Connector Functionality USB x2 Disabled Page... -
Page 8: Remote Interface
Remote Interface Keys Functionality 1 Power Single Press: Power ON/OFF Power Cycle by holding power button for 5 Seconds. 2 UP Navigate UP direction in Android UI 3 DOWN Navigate DOWN direction in Android UI 4 LEFT Navigate LEFT direction in Android UI 5 RIGHT Navigate RIGTH direction in Android UI 6 OK... -
Page 9: Power On
6. Power There are 2 ways to power TDD1. 1. Using 12V 2A Power Adaptor 2. 30W POE+ Connection. Port1/Ethernet port on the back side. 7. Connecting to Internet 1. Connect though Ethernet or Wi-Fi. 2. On connecting Ethernet Cable, the Ethernet Icon appears on Home Screen. 3. -
Page 10: Hdmi In
8. HDMI IN HDMI Source Devices include Laptops, PCs, PS ¾, PlayStation, smart box, cable tv boxes, OTTs etc can be connected as HDMI Input to the TDD1 Box on the HDMI IN Port though HDMI Cable. HDMI Sink Devices include TVs, Monitors, and any other devices capable of accepting HDMI input from external devices, can be connected from HDMI OUT Port of the TDD1 Box though HDMI Cable. -
Page 11: System Update By Ota
Connect a source device to the HDMI IN port of TDD1 as above. Opening the “HDMI-IN” app should start displaying the content of the hdmi source. Example here the HDMI IN is connected, and the APP plays the content as below. HDMI-IN App: 9. -
Page 12: Fcc Statements
10. FCC statements NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.
