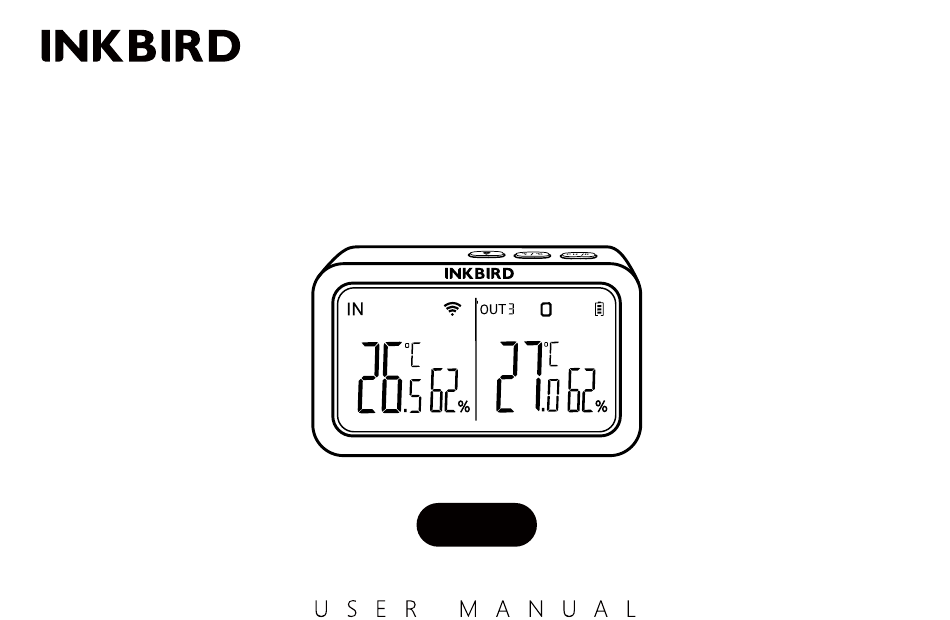

- Page 1 WiFi Gateway for Thermometer and Hygrometer IBS-M2...
-
Page 3: Table Of Contents
CONTENTS Product Introduction Specification APP Connection Action Button Instructions Safeguards Product Warranty FCC Requirement... -
Page 4: Product Introduction

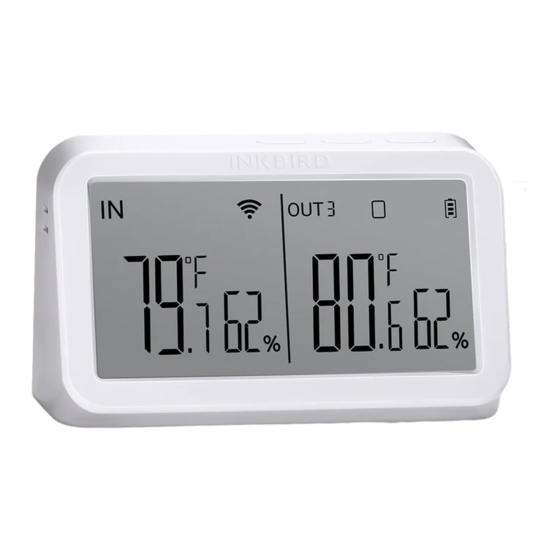

1. Product Introduction The IBS-M2 Wi-Fi Gateway can be used independently or with a corresponding Bluetooth/wireless thermometer and hygrometer. Action Buttons Gateway Wi-Fi Signal Temperature-and-humidity type icon of the gateway sub-device Current channel number of the gateway sub-device Battery level of the gateway... -
Page 5: Specification
The INKBIRD Wi-Fi Gateway is specially built for some INKBIRD Bluetooth/Wireless devices, offers mobile network connectivity, and ensures that all synchronized devices can be managed with the INKBIRD app. 2. Specification Input Voltage DC 5V, 1000mAh Maximum Bluetooth Connection Distance... -
Page 6: App Connection
Warranty 1 Year 3. App Connection 3.1 Download the INKBIRD App The INKBIRD Wi-Fi Gateway is specially built for some INKBIRD Bluetooth/Wireless devices, offers mobile network connectivity, and ensures that all synchronized devices can be managed with the INKBIRD app. - Page 7 3.2.1 Open the app, select your Country/Region, and a verification code will be sent to you. 3.2.2 Enter the verification code to confirm your identity, and the registration is complete. 3.2.3 Registering an account is necessary before using the INKBIRD app for the first 3.3 Connect to your phone - 04 -...
- Page 8 3.3.1 Open the app and click the “+” to 3.3.2 Plug into a USB power supply, power on select IBS-M2 to start the connection. properly, and click Next Step to continue. Please connect the USB Power supply and keep the device...
- Page 9 3.3.3 Select the Wi-Fi to connect to, enter 3.3.4 Press and hold the button on the the password, and click Next Step to device until the Wi-Fi indicator flashes to enter continue. the pairing state, then click Next Step to continue.
- Page 10 3.3.5 Your phone will automatically enter 3.3.6 The device is automatically pairing the the device scan page. Once the device is network. found, click Next Step to continue. Device is pairing IBS-M2 - 07 -...
- Page 11 3.3.7 Pairing is successful. Note: If pairing fails, unplug the power supply and restart the device, then repeat steps 3.3.1~3.3.6 to try again. 3.4 Reset the Wi-Fi Network Press and hold the button for 5~8 seconds to reset the Wi-Fi network. Pairing successful - 08 -...
- Page 12 3.5 Main Interface of INKBIRD App go to add sub-devices current temperature current humidity go to settings go to see the historical graph - 09 -...
- Page 13 3.6 Add Sub-Devices a.First, plug in the gateway host and power it on properly, then follow step 3.2 to start the app connection. Skip this step if the connection is already complete. b.Second, install the batteries for the sub-device and power it on properly. Be careful to place it as close as possible to the gateway host.
- Page 14 Click “+” to add a device - 11 -...
-
Page 15: Action Button Instructions
4. Action Button Instructions Wi-Fi Button: ℉/℃ Button Wi-Fi Button CH/R Button Press and hold it for 5 seconds to reset Wi-Fi and pair it with the network again. ℃/℉ Button: Press it to switch the temperature unit between ℃ and ℉. CH/R Button: Press it to switch between the channels (CH1, CH2, CH3…CH9), the screen will display the measured temperature of the chosen channel (CH1, CH2, CH3…CH9). -
Page 16: Safeguards
6. Product Warranty This item carries a 1-year warranty against defects in either components or workmanship. During this period, products that prove to be defective will, at the discretion of INKBIRD, be either repaired or replaced without charge. - 13 -... -
Page 17: Fcc Requirement
7. FCC Requirement Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that... - Page 18 can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. –...
