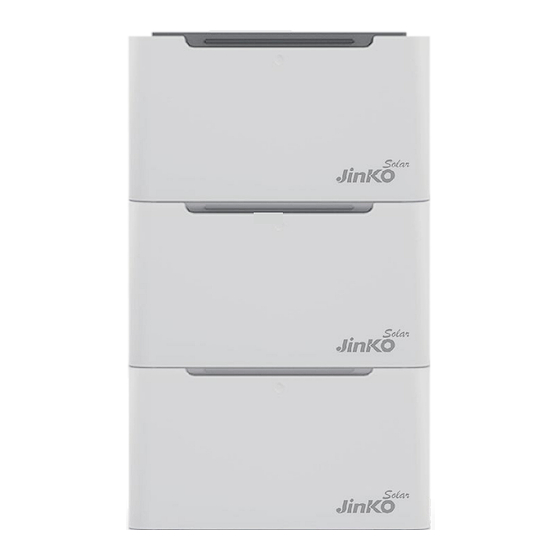

Jinko Solar JKS-51100-GI User Manual

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

JKS-51100-GI

User MANUAL

Version：V1.1

Table of Contents

Need help?

Do you have a question about the JKS-51100-GI and is the answer not in the manual?

Questions and answers

Summary of Contents for Jinko Solar JKS-51100-GI

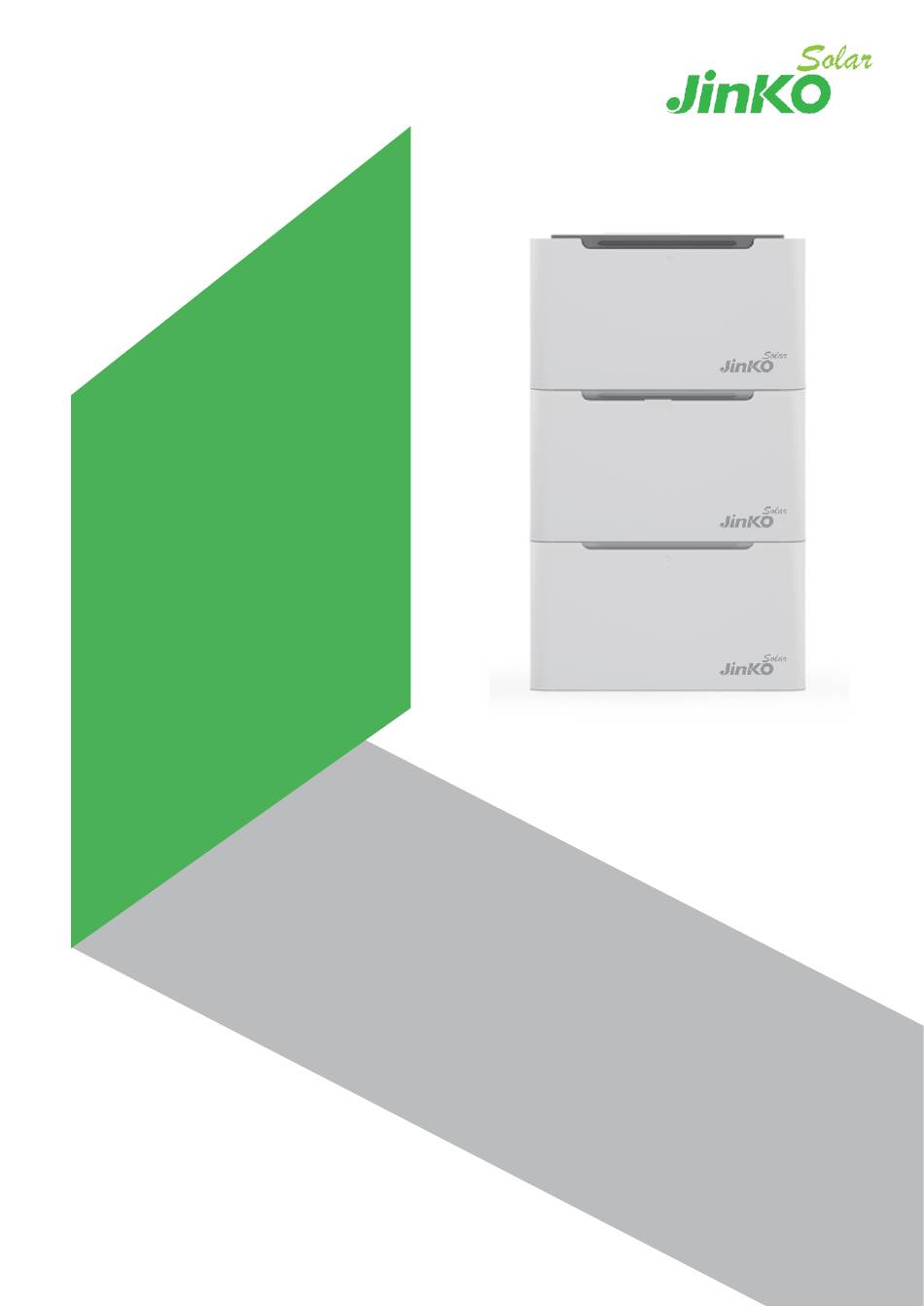

Page 1 JKS-51100-GI User MANUAL Version：V1.1...
Page 2: Table Of Contents
JKS-B51100-GI User Manual Contents Statement of Law ..........................1 Symbol .............................. 2 Safety Handling of Lithium Batteries Guide ................. 2 1 Introduction ..........................4 1.1 Brief Introduction ......................4 1.2 Product Properties ......................4 1.3 Product Identity Definition ....................4 2 Product Specification ........................
Page 3: Statement Of Law
Please note that the products, services or features you purchase are subject to the commercial contracts and terms of Jinko Solar Co., Ltd. All or part of the products, services or features described in this document may not be within the scope of your purchase or use.
Page 4: Symbol
JKS-B51100-GI User Manual Symbol The following symbols may appear in this document, and the meanings they represent are as follows. Danger  Only qualified person should wire the battery pack.  Do not unplug the connector while the system is running！...
Page 5 JKS-B51100-GI User Manual  Please do not open, repair or disassemble the battery except staffs from Jinko or authorized by Jinko. We are not responsible for any consequences or liability arising from violations of safety operation or equipment safety standards. Caution: ...
Page 6: Introduction
Jinko Solar Co., Ltd. The rated design capacity is 5.12 kWh. It can be used to support reliable power supply of various devices and systems, and is especially suitable for application scenarios with home power supply systems, limited installation space, limited load bearing, and long cycle life.
Page 7 JKS-B51100-GI User Manual Ban fireworks The battery voltage is higher than the safe voltage, and direct contact may cause electric shock. Caution Beware of explosions Equipment cannot be discarded with other household waste and must be sent to the appropriate institution for recycling. After the battery life is terminated, the battery can continue to be used after it recycled by the professional recycling organization and do not discard it at will.
Page 8: Product Specification
JKS-B51100-GI User Manual 2 Product Specification 2.1 System Appearance and Performance Parameter Table 2-1 The Parameters of Product Model Type JKS-B51100-GI Physical Properties Battery Type LFP (LiFePO Weight 58 kg±0.5 kg Dimension（width×height×depth） 660*410*210 mm The thickness of Housing 5 mm Enclosure Rating IP65 Warranty Period...
Page 9 JKS-B51100-GI User Manual 95 A/95 A Rated Charge and Discharge Current Maximum Charge and Discharge Current 95 A/95 A Rated DC Power 5 kW Operating Temperature -30 ~ 60 ℃ Storage Temperature -10 ~ 45 ℃ Humidity 0~90 % Extended Parameters Recommended Max.
Page 10: External Interface Description
JKS-B51100-GI User Manual Figure 2-1 Product Appearance 2.2 External Interface Description Figure 2-2 Product External Interface Table 2-2 Interface Definition Interface Name Function Description Battery + Positive upward parallel port Indicator Light Run, alarm & SOC Communication port 1 8 pin 8 cell RJ45 communication Communication port 2 8 pin 8 cell RJ45 communication Battery +...
Page 11: Communication Interface Definition
JKS-B51100-GI User Manual SOC button Self-resetting button, click to show SOC Downward ground terminal Pressure relief valve Air tightness test hole/pressure relief port Battery - Negative upward parallel port Upward ground terminal Battery - Negative downward parallel port Switch The power button 2.3 Communication Interface Definition Figure 2-3 RJ45 interface Table 2-3 The Table of Interface Pin Definition...
Page 12 JKS-B51100-GI User Manual Flashing Lights Normal Standby mode Standby Flashing Flashing Alarm Reference Notes Lights Normal Lights on Flashing Alarm Lights on Reference Notes Charging Single overvoltage Lights protection, overall Lights on overvoltage protection Flashing Lights Overcurrent protection Flashing Lights Normal Flashing Flashing...
Page 13: Sleep And Wake Up Function Description
JKS-B51100-GI User Manual Lights show ＜10% 10%~25% 25 %~50 % 50 %~75 % 75 %~100% Note: Battery performance is monitored via APP. 2.5 Sleep and Wake Up Function Description Wake up 1） When the system is in low power consumption mode and any of the following conditions are met, the system will exit the low power consumption mode and enter the normal operation mode: When the charger is connected, the output voltage of the charger must be greater than 48 V.
Page 14: Tools
JKS-B51100-GI User Manual 3.1.1 Working Temperature Operating temperature range of this product: -30℃ ~ 60℃; optimum temperature: 18℃ ~ 30℃; Note: Exceeding the operating temperature range will cause over/low temperature alarm or protection of the battery system, which may reduce cycle life. 3.1.2 Heating System This product has a heating function which is automatically controlled by the battery.
Page 15: Safety Gear
JKS-B51100-GI User Manual Caution: Using properly insulated tools to prevent accidental electric shock or short circuit. If no insulating tool is available, cover the entire exposed metal surface with an available insulating substitute. 3.3 Safety Gear It is recommended to wear the following safety equipment when installing the pack: Insulated gloves Blinkers...
Page 16 JKS-B51100-GI User Manual item.  The technical documentation should be read carefully before opening the package and the installer. Checklist to ensure items are complete and in good condition according to configuration sheet and packing list. If the inner packing is damaged, it should be checked in detail and recorded.
Page 17: Equipment Installation
JKS-B51100-GI User Manual Name Feature Number Picture Lid of modules Lid of modules Supporting base Supporting base of of modules modules 3.5 Equipment Installation Table 3-1 Installation Steps Number Installation Description Steps Unboxing Unpack the product and check whether the accessories are inspection complete.
Page 18 JKS-B51100-GI User Manual Position and drill holes 3.5.3 Fixed Back Plate Fix firmly the back plate with expansion screws with the rubber hammer. 3.5.4 Stackable Battery Packs It is best to hang the battery pack on the back panel with two people, as shown in the following figure:...
Page 19 JKS-B51100-GI User Manual 3.5.5 Connect the cables Please open the left and right side panels of the pack, we can see the following interface. ① are communication terminals. ② are parallel line terminals and ③ is GND terminal. 3.5.5.1 Connect GND wire 3.5.5.2 Connect communication wire If you only have one pack, you only need to connect the communication cable to the inverter.
Page 20 JKS-B51100-GI User Manual cables with other packs. Then, insert the end matching resistor into the communication interface of the last pack. 3.5.5.3 Connecting cables. (1) If you only have one pack, just connect up and parallel with the air circuit- breaker, and then connect with the inverter, as shown in the schematic diagram of three packs stacked in this section.
Page 21: Maintenance
JKS-B51100-GI User Manual . Note: Please leave at least 80 cm of spacing around the battery system. 3.5.5 Start up and Shutdown procedure 1) Verify that the installation is intact and that the air breaker is in a disconnected state. 2) Press the switch on the side of the battery to turn on the battery system.
Page 22 JKS-B51100-GI User Manual Please contact the factory Battery aging leads to to replace the battery pack Short discharge time/ capacity loss and its parts。 charge and discharge Please contact the failure Internal failure manufacturer Stop charging and discharging. Let the Temperature of pack is battery pack be static at Charge and discharge...
Page 23: Replacements Of Battery
JKS-B51100-GI User Manual Note: If the fault still persists, please contact the manufacturer as soon as possible. Note: Do not disassemble this product by yourself! When you need to report a fault, please record and communicate the following information: a) Product model; b) Serial number;...
Page 24: Shipment
JKS-B51100-GI User Manual 6 Shipment Battery modules will be pre-charged to 50 % before shipment or as per customer request. The remaining capacity of the battery cell is determined by the storage time and condition after leaving the factory.  The battery module meets the UN 38.3 certification standard. ...
