Summary of Contents for Sensepeek PCBite Magnifier 3x

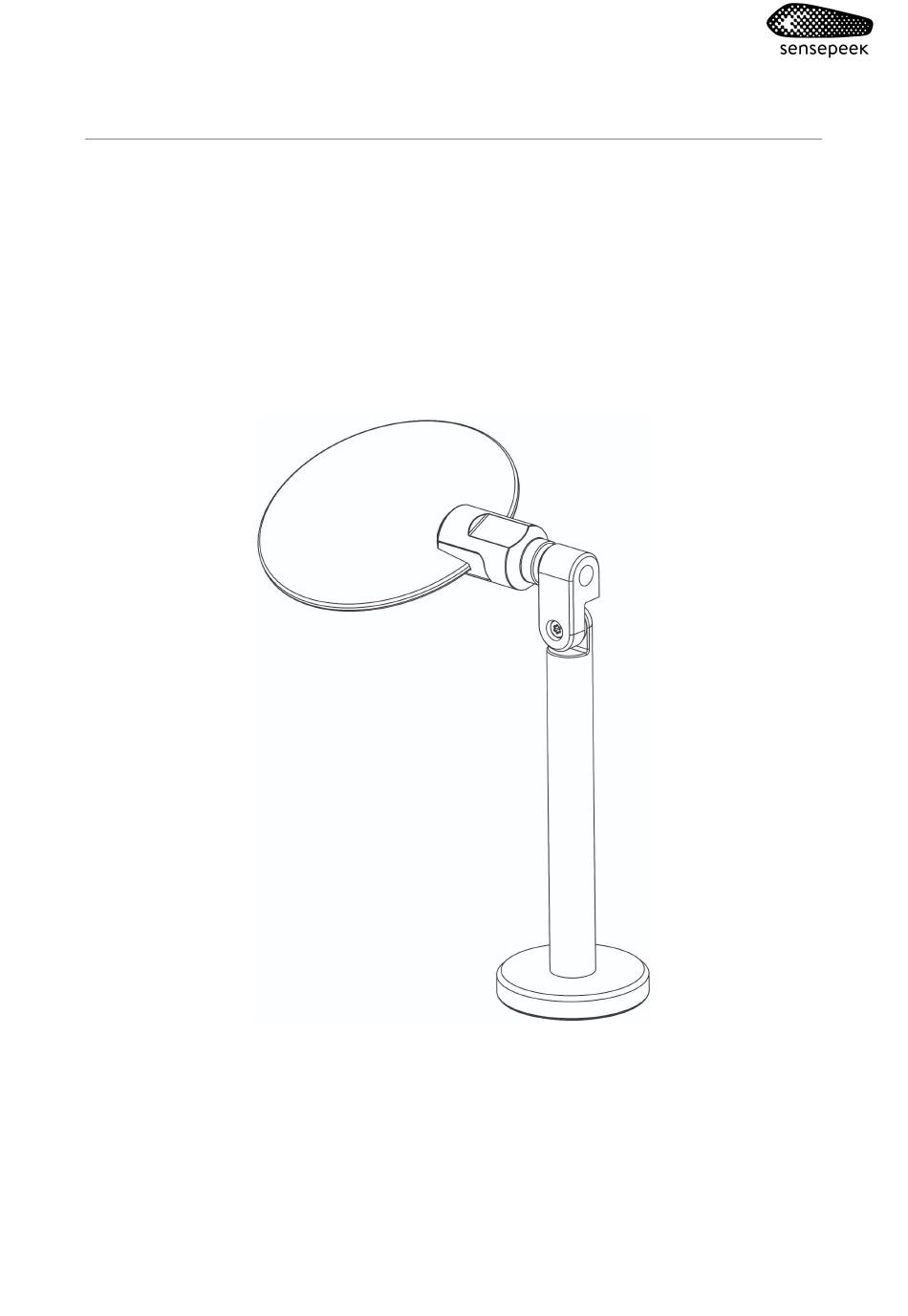

- Page 1 User's Guide PCBite Magnifier 3x Made in Sweden by Sensepeek AB, Verkstadsgatan 2, Vellinge, Sweden Rev 1.0 - Specifications are subject to change without notice.
- Page 2 Qualifying products are marked with the WEEE symbol shown above. Or ensure WEEE compliant collection and treatment yourself. Do not dispose of this product as unsorted municipal waste Delivery cost of any authorized product returned to Sensepeek will be at the expense of the sender.
- Page 3 Safety To prevent possible death, personal injury, electrical shock, fire or damage to the product, carefully read this safety information before use of the product. Follow all generally accepted safety practices and procedures for working with and near electricity. The product has left the factory tested and in a safe condition.
- Page 4 Fire Risk of fire, do not place the device, particularly the lenses, in direct sunlight. The concentration of light rays could cause a fire. Do not subject the device to temperatures exceeding 50°C. Environment WARNING To prevent death or injury, do not use near explosive vapor or gas.
- Page 5 Care of the product The magnifier contains no user-serviceable parts. WARNING To prevent death or injury, do not try to open any part of the assembly, do not use the product if it appears to be damaged in any way. CAUTION Always handle with care to avoid injury.
- Page 6 Getting started - Magnifier Assembly 1) Assemble the foot to the arm by screwing it clockwise. 2) Remove the protective wrappings. 3) The magnifier is ready to use. Operating Instructions Position the magnifier - Place the magnifier on the base plate and the magnet will keep it in place.
- Page 7 Position the lens Move the lens into position by using the friction based tilt (1) and rotate (2) function. Release your hand and the lens will stay in position. Specification Lens magnification: 3x Coating: Anti reflective Diameter lens: 90 mm Height: 150 mm...
