Summary of Contents for Mille Rolfe 134474

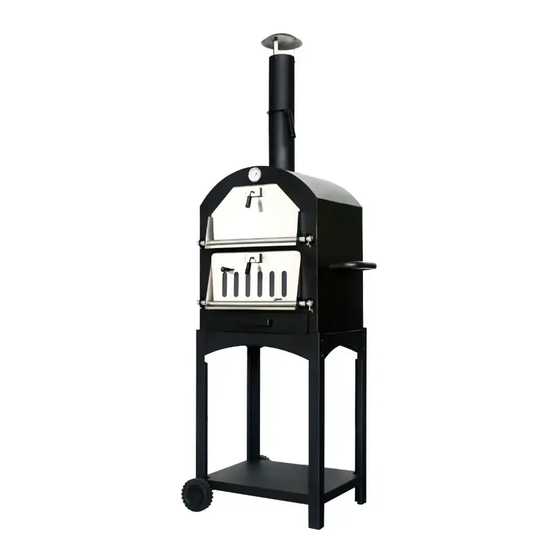

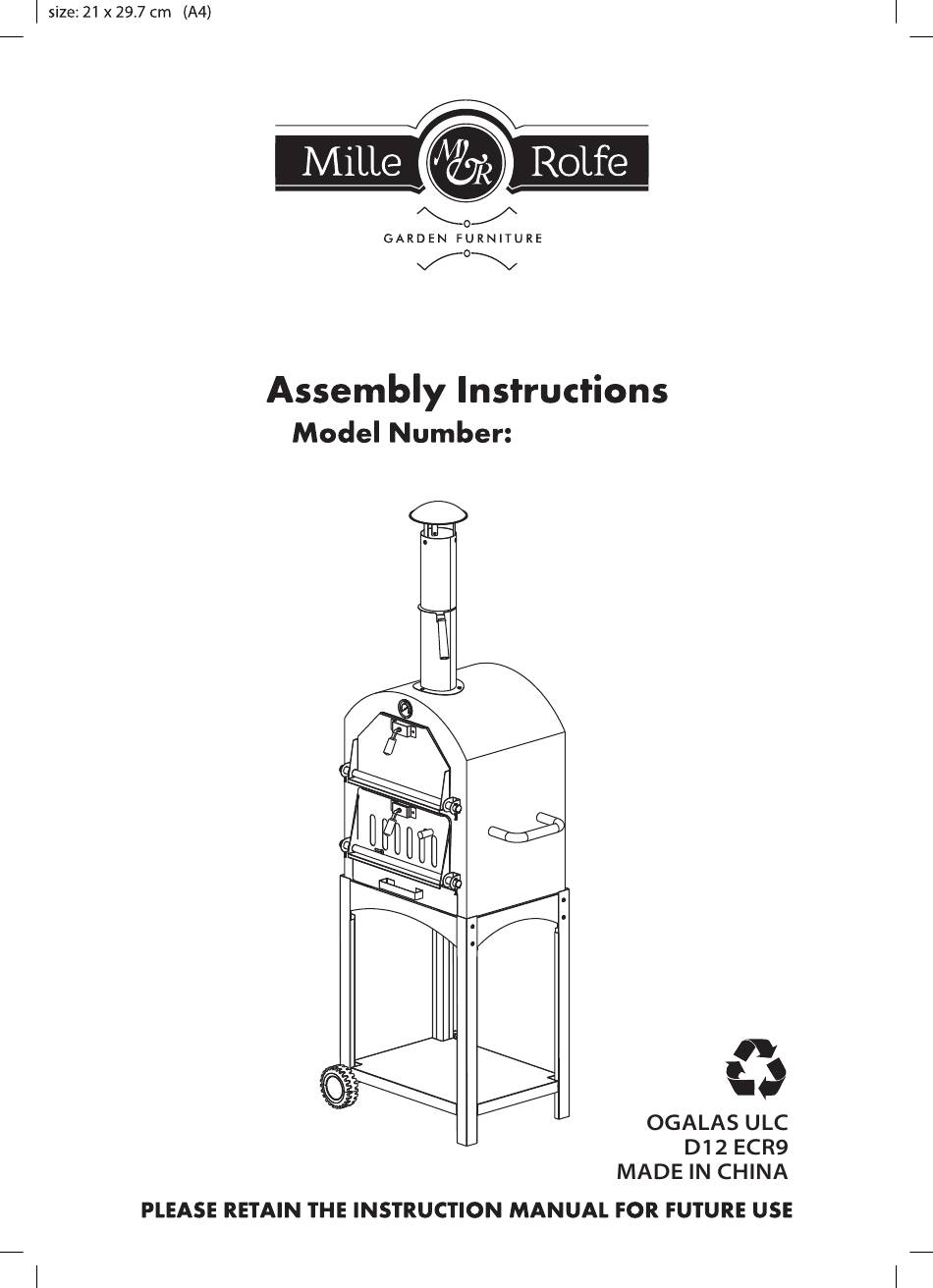

- Page 1 WOOD FIRE PIZZA OVEN 134474...
-
Page 2: Selecting Location
IMPORTANT INFORMATION WARNING! PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE ASSEMBLY AND USE. FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN SERIOUS INJURY OR DAMAGE TO YOUR HOME AND/ OR GARDEN. READ AND FOLLOW ALL INSTRUCTIONS. RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE. •... - Page 3 PARTS LIST Please check parts against the list below before assembling re burner. Take a few moments to familiarise yourself with the contents. Check that all holes are clear of paint before assembly. Fire bowl handle x 1 Chimney cap x 1 Pin x 4 Ash tray x 1 Chimney x 1...
-
Page 4: Tools Required
Assembly Hardware Pack Components Tools Required Name Part Description Quality Part No 26pcs Bolt M5x12mm 2 pt Phillips Screwdriver 2pcs Bolt M5x15mm 2pcs Bolt M6x20mm 2pcs Lock nut Adjustable Wrench Preparation Before Assembling Before beginning assembly of this grill, make sure all parts are present (see Part List on page 5 and Hardware Contents below). - Page 5 Assembly Instructions Remove hub caps (32) from wheels (31). Assemble the Fire bowl handle (9) to the Insert wheel axle (30) through both holes in re bowl (5) using 2 M6x20mm bolts (CC), wheels legs (26). Attach wheels (31) to the tighten the bolts securely.
- Page 6 Assembly Instructions Assemble the chimney air vent adjustor Assemble the chimney (2) onto the holder (4) onto the chimney air vent adjus- Fire bowl (5) using 3 M5x12mm bolts (AA), tor (3) using 2 M5x15mm bolts (BB), tighten the bolts securely. tighten the bolts securely.
- Page 7 Assembly Instructions Place the charcoal grills (24) into the bottom Place the pizza stone (22) onto the cooking of re bowl (5), place the cooking grills grill (23). (23) into the top of re bowl (5). N o te : u s e o nly o r ig ina l p a r ts . T his w ill p r o te c t y o ur w a r r a nty c o ve r a g e f o r p a r ts r e pla c e d u nd e r w a r r a nty .
-
Page 8: Before Use
BEFORE USE 1. Make sure the assembly instructions have been followed correctly. 2. Set the oven up in a suitable position, on a level surface away from areas likely to catch re. The base of the oven will get hot so ensure it stands on a suitable non-combustible, heat-resistant surface. - Page 9 FOOD COOKING INFORMATION Please read and follow this advice when cooking on your grill. - ALWAYS wash your hands before and after handling uncooked meat and before eating. - ALWAYS keep raw pizza away from cooked pizza. - Before cooking ensure pizza stone are clean and free of old food residues - Ensure all pizza is cooked thoroughly before eating.
- Page 10 × × × USE ON A FLAT EVEN KEEP FIRE UNDER CONTROL DO NOT TOUCH SURFACE HOT! × √ √ DO NOT EXTINGUISH WITH WATER COVER UP WHEN NOT IN USE ONLY USE RECOMMENDED PELLETS × × × NEVER USE INDOORS NEVER USE IN TENTS NEVER USE IN VEHICLES ×...
