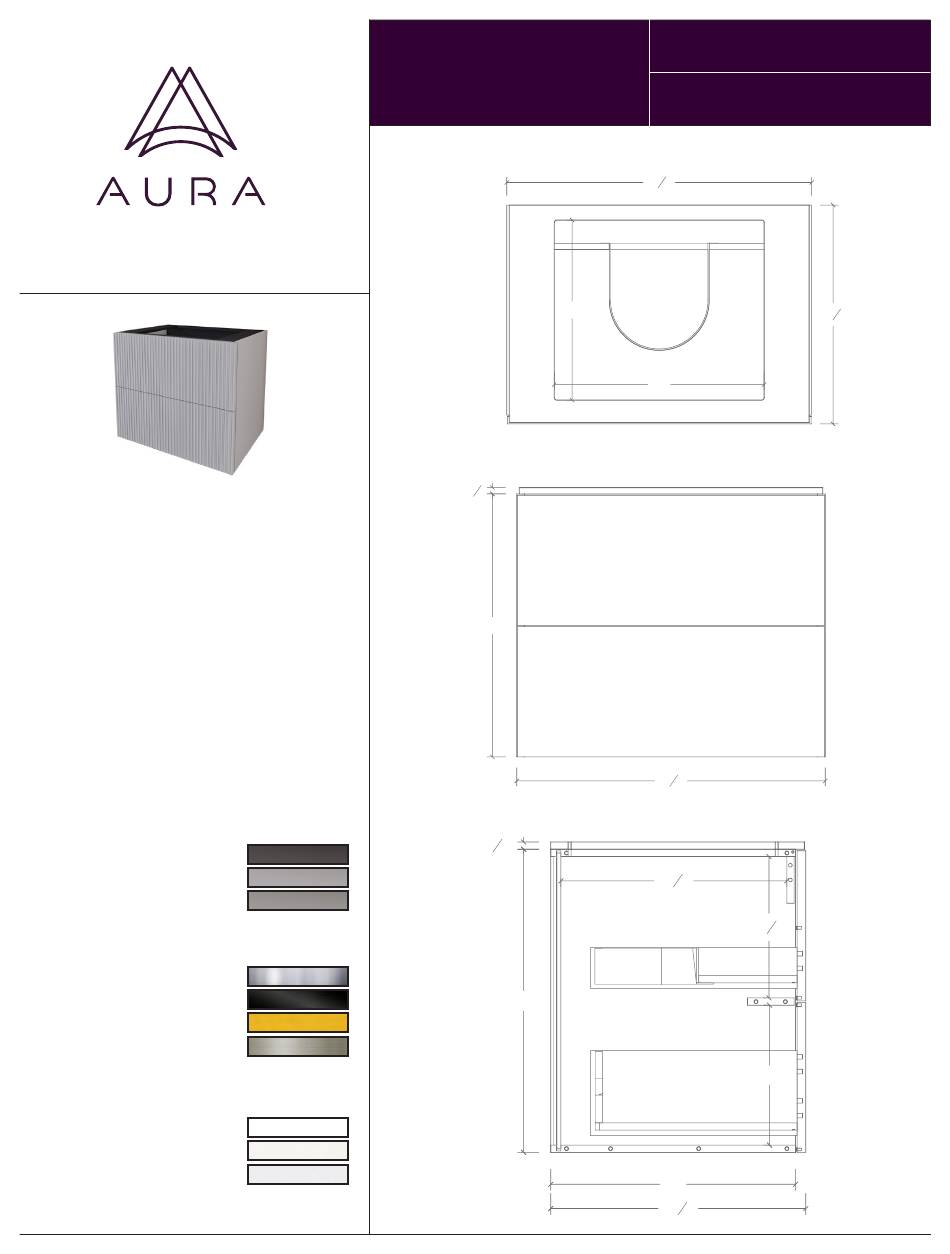

Aura CARNABY ABFFIO3021 Series Manual

Bathroom vanity
Hide thumbs

Advertisement

Quick Links

Download this manual
DESCRIPTION
• Made in Canada
• Soft Close Drawers w/ Adjustments
• Matte Finish
• Fingerprint resistant side gables
• Charcoal interior
• Reveal Sold Seperately
DIMENSIONS
• Width: 30 1/2"
• Depth: 21 7/8"
• Height: 26 5/8"
AVAIL ABLE FINISHES
• PE: Pewter
• SW: Shadow White
• TU: Tundra
AVAILABLE HANDLE & REVEAL FINISHES
• Chrome
• Black
• Gold
• Brushed Nickel
AVAIL ABLE COUNTERTOPS
• Urban - White
• Exelis - Blanco Zeus
• Exelis - Eternal Saturio
Dimensions of fixtures are approximate and may vary ± 6mm (1/4"). Structure measurements must be verified against the unit to ensure proper fit.
FIORI
18"
5
8 "
26"
5
8 "
26"
Bathroom Vanity
A B FFI O3 0 2 1-X X
TOP VIEW
1
30
2 "
21"
FRONT VIEW
30 1 2 "
SIDE VIEW
19 3 8 "
12 1 8 "
12"
21"
21 7 8 "
21 7 8 "

Advertisement

loading
Need help?

Need help?

Do you have a question about the CARNABY ABFFIO3021 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Aura CARNABY ABFFIO3021 Series

Summary of Contents for Aura CARNABY ABFFIO3021 Series

  • Page 1 Bathroom Vanity FIORI A B FFI O3 0 2 1-X X TOP VIEW 2 " 18" 21 7 8 " 21" FRONT VIEW 8 " DESCRIPTION • Made in Canada • Soft Close Drawers w/ Adjustments • Matte Finish • Fingerprint resistant side gables 26"...
  • Page 2 Bathroom Vanity FIORI A B FFI O3 62 1-X X TOP VIEW 36 1 2 " 18" 21 7 8 " 21" FRONT VIEW 8 " DESCRIPTION • Made in Canada • Soft Close Drawers w/ Adjustments • Matte Finish •...
  • Page 3 Bathroom Vanity FIORI A B FFI O4 8 2 1-X X TOP VIEW 48 1 2 " 21 7 8 " 18" 21" FRONT VIEW 8 " DESCRIPTION • Made in Canada • Soft Close Drawers w/ Adjustments • Matte Finish 26"...
  • Page 4 Bathroom Vanity FIORI A B FFI OX X X X Installation Manual TWO PERSONS REQUIRED Dimensions of fixtures are approximate and may vary ± 6mm (1/4”). Structure measurements must be verified against the unit to ensure proper fit. PRODUCT SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.

  • Page 5: Materials And Tools Required

    Bathroom Vanity FIORI A B FFI OX X X X MATERIALS AND TOOLS REQUIRED GENERAL INSTRUCTIONS • Read this guide carefully and completely before proceeding. • It is recommended that you wear safety glasses during the installation. Level Pencil Drill NOTICE •...
  • Page 6 Bathroom Vanity FIORI A B FFI OX X X X AT T E N TI O N ! REMOVE ANY OBSTRUCTIONS PREPARATION Your new cabinets can be hung directly onto a suspension rail making them easier to install and adjust. It’s important to make sure your suspension rail is straight and level, and to secure it with the right screw...
  • Page 7 Bathroom Vanity FIORI A B FFI OX X X X MOUNTING Mount the suspension rails Use level to check that the rail is level. Fasten your rails. Make sure you’ve found suitable points in the wall where the rails can be fastened and that the rails are level before drilling.
  • Page 8 Bathroom Vanity FIORI A B FFI OX X X X ATTACHING BASE TO RAIL Easily lower the cabinet onto the rail until the cabinet’s attached rail piece slides into the wall rails slot. SEE DIAGRAM 4A and 4B Dimensions of fixtures are approximate and may vary ± 6mm (1/4”). Structure measurements must be verified against the unit to ensure proper fit. PRODUCT SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
  • Page 9 Bathroom Vanity FIORI A B FFI OX X X X 2 1/2” SECURE THE BASE Drill a hole through the back of the cabinet into the wall rougly where indicted on diagram 5A. Then secure with a screw after into the wall diagram 5B.
  • Page 10 Bathroom Vanity FIORI A B FFI OX X X X ATTACH THE REVEAL Place a wooden Dowel(included) into the bottom of the reveal. The bottom of the reveal will have a hole on each side to accomidate the dowels. Gently place it atop the vanity making sure to align the holes.
  • Page 11 Bathroom Vanity FIORI A B FFI OX X X X DRAWER ADJUSTMENTS TILTING ADJUSTMENTS UP / DOWN ADJUSTMENTS LEFT / RIGHT ADJUSTMENTS Dimensions of fixtures are approximate and may vary ± 6mm (1/4”). Structure measurements must be verified against the unit to ensure proper fit. PRODUCT SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
  • Page 12 Bathroom Vanity FIORI A B FFI OX X X X REMOVE DRAWER FRONT TIP UP COVER CAP RELEASE DRAWER REMOVE DRAWER REMOVE DRAWER Dimensions of fixtures are approximate and may vary ± 6mm (1/4”). Structure measurements must be verified against the unit to ensure proper fit. PRODUCT SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
