Soundoff Signal PREDATOR EPRDDGS1 Series Assembly Instructions

WARNING
: Warning devices are strictly
regulated and governed by Federal, State and
Municipal ordinances. These devices shall be
used ONLY on approved vehicles. It is the sole
responsibility of the user of these devices to
ensure compliance.

BRACKET MOUNTING

Important: DO NOT over tighten mounting
screws or nuts. This could cause
permanent damage to the bracket
1. Locate flat mounting location for Predator
Light Bracket.
2. When position of bracket is determined
use supplied template for hole locations.
3. Drive in Customer Supplied Hex Head
screws. Leave about a 1/16" space
between the mounting surface and
underside of screw head.
4. Place Light over screws using the holes in
brackets and slide to the right to lock the
brackets underneath the head of the
bolts.
5. Using a open-end wrench, tighten the hex
head bolts down tight to secure the light
to the mounting surface.
6. Adjust angle of the light to best suit your
application by loosening the 2 nuts on
either end of the light.
7. After the Predator is set to the desired
angle, tighten the 2 nuts on either end of
the light. DO NOT OVER TIGHTEN nuts
as damage to bracket or light can occur.
Tighten nut until snug plus 1/8 turn.
8. Make electrical connections using the
following instructions.
DUAL EXTERIOR DECK / GRILLE
WARNING SYSTEM
ASSEMBLY INSTRUCTIONS
!
WARNING
This product contains high intensity LED
devices. To prevent eye damage, DO NOT
stare into light beam at close range.
IMPORTANT: DO NOT connect this
device to a strobe power supply.

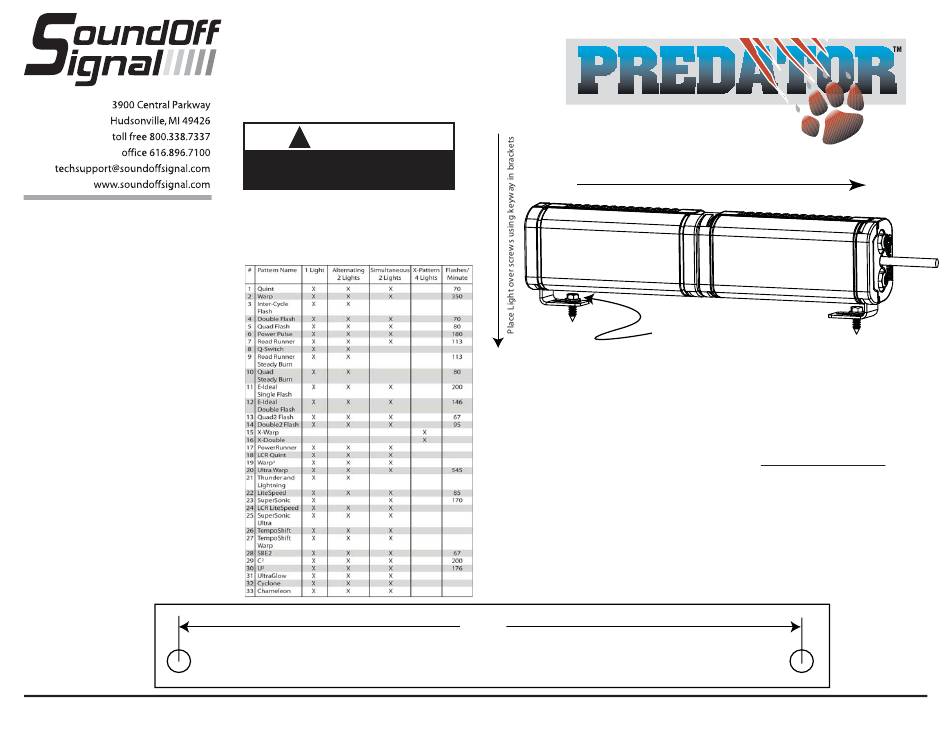

FLASH PATTERNS for
DUAL HEAD EXTERIOR PREDATOR (EPRDDGS1(x))
SCREW PLACEMENT DRILL TEMPLATE
(Be sure to use appropriate drill size for your screw size)
BY SOUNDOFF SIGNAL
EPRDDGS1(x)
Slide Light to the Right and tighten screws using box end wrench

ID SELECTION

1. Identify which pattern and sequence preferred and look
up ID#s on the table provided on the second page.
2. Connect the PREDATOR WHITE wire to the same
source as the RED wire (Note: you will need to
disconnect after power is applied)
3. Turn PREDATOR ON
4. Without disconnecting power from unit, disconnect
WHITE wire
5. Momentarily Touching and removing the WHITE wire to
ground will advance the PREDATOR to the next ID#.
The ID# can be identified by the number of sequential
flashes from 1 up to 4. ID# 1 should be used if not
synchronizing with other lights.
6. Once the ID is selected DISCONNECT power.
7.07"
Install Screws (user supplied)
first using template below

OPERATING INSTRUCTIONS

See setup procedure on second page.
The single Predator comes equipped with an internal
flasher with 33 user selectable patterns that can be
synchronized either alternating or simultaneous with up
to three other lights. It can also be put into slave mode
and driven through an external flasher.
1. Connect the PREDATOR BLACK wire to a good,
convenient ground.
2. Connect the PREDATOR RED wire to one side of a
user supplied on/off switch. Connect the other side of
the switch, through a 5Amp fuse, to a source of
+10-16Vdc.
EPRDDGS1(x) 02/08
