Summary of Contents for Vega VEGACONNECT

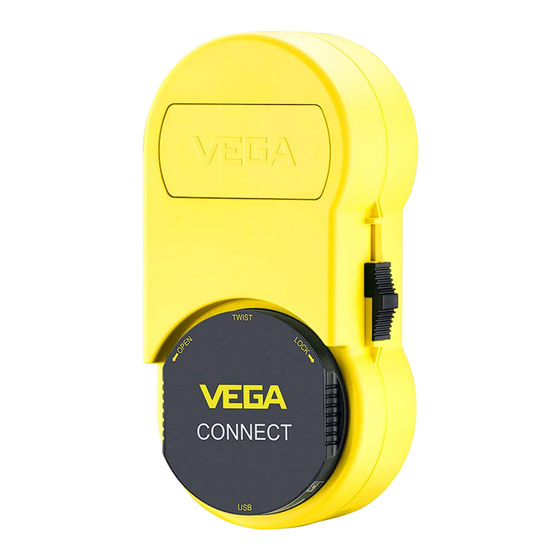

- Page 1 Operating Instructions Interface adapter between PC and communication-capable VEGA instruments VEGACONNECT Wired interface adapter with connection box USB - HART/I²C Document ID: 66081...
-
Page 2: Table Of Contents
EU conformity ......................... 19 Environment management system ................. 19 10 Supplement ..........................20 10.1 Technical data ........................ 20 10.2 Dimensions ........................21 10.3 Industrial property rights ....................22 10.4 Trademark ........................22 Editing status: 2021-12-14 VEGACONNECT • Wired interface adapter with connection box... -
Page 3: About This Document
Symbols used Document ID This symbol on the front page of this instruction refers to the Docu- ment ID. By entering the Document ID on www.vega.com you will reach the document download. Information, note, tip: This symbol indicates helpful additional infor- mation and tips for successful work. -
Page 4: For Your Safety
For safety and warranty reasons, any invasive work on the device beyond that described in the operating instructions manual may be carried out only by personnel authorised by the manufacturer. Arbi- trary conversions or modifications are explicitly forbidden. For safety VEGACONNECT • Wired interface adapter with connection box... -
Page 5: Safety Instructions For Ex Areas
Safety instructions for Ex areas For applications in explosion-proof areas (Ex), only devices with cor- responding Ex approval may be used. Observe the Ex-specific safety instructions. These are an integral part of the operating instructions and are enclosed with every device with Ex approval. VEGACONNECT • Wired interface adapter with connection box... -
Page 6: Product Description
Magnetic pen On the back of the connection box there is a fold-out hook to hang the device on a pipe, for example, if there is no place to put it. In addition, VEGACONNECT • Wired interface adapter with connection box... -
Page 7: Principle Of Operation
PC with Windows operating system. It can also be used as a universal HART modem for HART sensors from other manufacturers. An ad- justment software such as PACTware with VEGA DTMs is required for parameter adjustment of these instruments. VEGACONNECT • Wired interface adapter with connection box... -
Page 8: Adjustment
The magnet pen enables the adjustment of the buttons of a Blue- Magnetic pen tooth-PLICSCOM with closed housing lid with inspection window. In this case, the VEGACONNECT is not used, here the connection box is only a preserving possibility for the magnet pen. You can find further information of this application in the operating instruction of PLICSCOM. - Page 9 • Avoiding mechanical shock and vibration • Storage and transport Storage and transport temperature see chapter " Supplement - temperature Technical data - Ambient conditions" • Relative humidity 20 … 85 % VEGACONNECT • Wired interface adapter with connection box...
-
Page 10: Connection
First install the software package " DTM Collection" before connecting the VEGACONNECT to the PC. An USB interface (1.1/2.0/3.0) is compulsory for connection of VEGACONNECT to a Windows PC. The connection is provided with the supplied USB cable. Voltage supply of VEGACONNECT is pro- vided via the USB interface. - Page 11 (for details see " Connection examples - Con- nection via HART interface"). The VEGACONNECT can be connected to the I²C bus interface of all Connection via I²C bus series 600 controllers (for details see " Connection examples - Con- nection via I²C interface").
-
Page 12: Connection Examples
USB cable for connection to the PC plics device ® HART sensor with VEGADIS 81 Fig. 6: Insertion into VEGADIS 81 HART sensor VEGADIS 81 USB cable for connection to the PC VEGACONNECT • Wired interface adapter with connection box... -
Page 13: Connection Via Hart Interface
Digital communication with the PC is then no longer possible. With low impedance processing systems, a resistance of at least 230 Ω must be integrated into the 4 … 20 mA connection cable. The connection of VEGACONNECT can be either carried out in parallel to the sensor or via the resistor. Note: A HART resistor is already integrated in some controllers. - Page 14 Connection cable with 2 mm pins and terminals Processing system/PLC/Voltage supply Information: The VEGACONNECT is connected directly via the 2 mm sockets of the supplied HART resistor. Alternatively, the VEGACONNECT can also be connected in parallel to the sensor (dashed line).
-
Page 15: Connection Via I²C Interface
Note: Communication with the sensor is carried out also via the front I²C interface of the controller. The connection of VEGACONNECT directly to the 4 … 20 mA sensor cable is not possible. VEGACONNECT • Wired interface adapter with connection box... -
Page 16: Setup
Information: You find the VEGACONNECT DTM in the device catalogue under the group " Driver". When adding a HART sensors, the window " Channel selection" appears in addition in which you have to select the connec- tion (connection via HART or I²C). VEGACONNECT • Wired interface adapter with connection box... -
Page 17: Diagnostics And Servicing
Attach the completed form and, if need be, also a safety data sheet outside on the packaging • Ask the agency serving you to get the address for the return ship- ment. You can find the agency on our homepage. VEGACONNECT • Wired interface adapter with connection box... -
Page 18: Recycling And Disposal
8 Recycling and disposal Recycling and disposal Disposal The device is made of recyclable materials. For this reason, it should be disposed of by a specialist recycling company. Observe the ap- plicable national regulations. VEGACONNECT • Wired interface adapter with connection box... -
Page 19: Certificates And Approvals
That is why we have introduced an environment management system with the goal of continuously improving company environmental pro- tection. The environment management system is certified according to DIN EN ISO 14001. Please help us fulfil this obligation by observ- ing the environmental instructions in chapters " Packaging, transport and storage", " Disposal" of these operating instructions. VEGACONNECT • Wired interface adapter with connection box... -
Page 20: Supplement
Ʋ Plug connection I²C bus plug Cable with 2 mm pins Ʋ Connection to CONNECT sockets, HART resistor/cable Ʋ Cable length 150 cm (59 in) Ʋ Plug connection 2 x 2 mm male connector VEGACONNECT • Wired interface adapter with connection box... -
Page 21: Dimensions
10 Supplement HART resistance Resistor 270 Ω Tolerance Power Bluetooth USB adapter Technical data see attached instruction manual 10.2 Dimensions 162 mm 52 mm (6.38") (2.05") Fig. 12: Dimensions VEGACONNECT VEGACONNECT • Wired interface adapter with connection box... -
Page 22: Industrial Property Rights
Les lignes de produits VEGA sont globalement protégées par des droits de propriété intellec- tuelle. Pour plus d'informations, on pourra se référer au site www.vega.com. VEGA lineas de productos están protegidas por los derechos en el campo de la propiedad indus- trial. Para mayor información revise la pagina web www.vega.com. - Page 23 – Resistor 11, 13 I²C interface 11 Interface adapter 7 Online help 16 PACTware 7, 16 PLC 14 Profibus PA 8 QR-Code 7 Repair 17 Serial number 7 Type label 7 USB 10 Voltage supply 8, 10 VEGACONNECT • Wired interface adapter with connection box...
- Page 24 Subject to change without prior notice © VEGA Grieshaber KG, Schiltach/Germany 2021 VEGA Grieshaber KG Am Hohenstein 113 Phone +49 7836 50-0 77761 Schiltach E-mail: info.de@vega.com...
