IMO Fine 591 Service Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

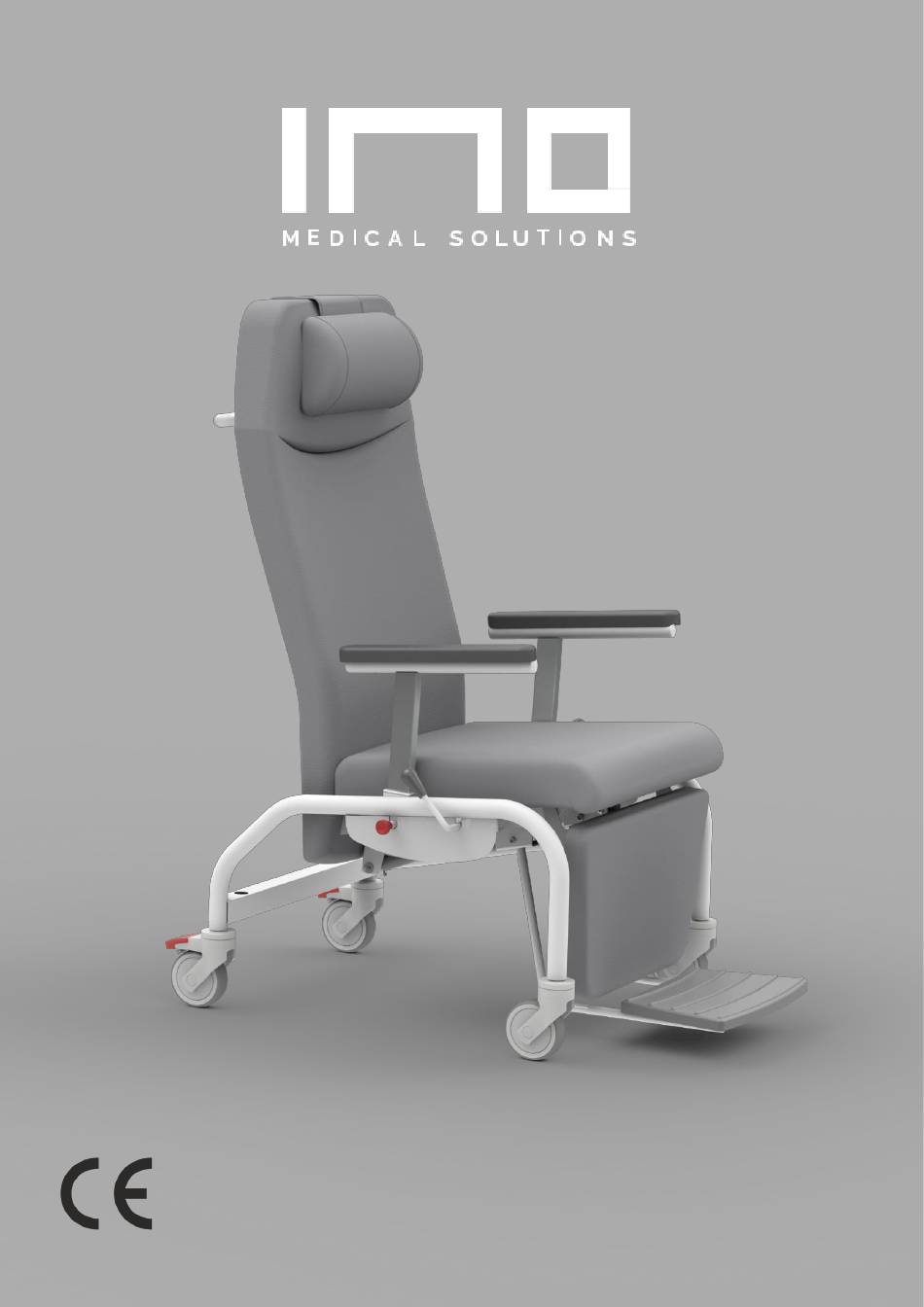

INTRODUÇÃO
SERVICE MANUAL
Fine
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Fine 591 and is the answer not in the manual?

Questions and answers

Summary of Contents for IMO Fine 591

  • Page 1 INTRODUÇÃO SERVICE MANUAL Fine...
  • Page 2 INDEX...
  • Page 3 INDEX...

  • Page 4: Table Of Contents

    Scope .................................................. 8 Objective ................................................8 Legal constraints, compliance and registration ............................8 Documentation ............................................9 MODEL DESCRIPTION ..................................11 Fine 591................................................12 Optionals ................................................ 13 2.2.1. Headrest ............................................... 13 2.2.2. Footrest ..............................................13 2.2.3. Hooks for urine bag ........................................14 Accessories ..............................................

  • Page 5: Symbols

    SYMBOLS SYMBOLS Symbol Description Important warnings of possible risks of physical or fatal injury and damage to the product Note: Important notes for the proper functioning of the product see § “x” See section “x” CE marking of conformity with EU rules...

  • Page 6: Safety Precautions

    The Fine series armchairs should not be used without previously reading this manual and strictly complying with the instructions it contains. IMO - Indústrias Metalúrgicas, S.A. is not responsible for injuries or material damage resulting from failure to comply with the safety warnings described herein.

  • Page 7: Introduction

    INTRODUÇÃO INTRODUCTION...

  • Page 8: Identification Of The Document

    This manual cannot be reproduced without the permission of IMO, Indústrias Metalúrgicas, S.A.. All and any information contained in this manual may be changed without prior notice. IMO - Indústrias Metalúrgicas, S.A., will always take care to keep it updated and available, both on the web (www.imo.com.pt) and at its delegations, agents and importers.

  • Page 9: Documentation

    INTRODUCTION IMO – Indústrias Metalúrgicas, S.A. follows a quality management system certified with standards: NP EN ISO 9001 NP EN ISO 13485 Documentation The following product documentation is available to support the proper use and audit of the product: Operations Manual;...
  • Page 10 INTRODUCTION...

  • Page 11: Model Description

    MODEL DESCRIPTION MODEL DESCRIPTION...

  • Page 12: Fine 591

    MODEL DESCRIPTION Fine 591 Headrest Armrests C01.089.005 BR 591.005 Backrest Wheel Ø100 with brake SF 591.002 C01.015.055T Seat Wheel Ø100 without brake SF 591.003 C01.015.055 Bilateral knob for reclining Footrest DC 591.052 AP 591.006 Reclining mechanism Legrest MC 591.051 SF 590.114S1...

  • Page 13: Optionals

    MODEL DESCRIPTION Optionals 2.2.1. Headrest 2.2.2. Footrest...

  • Page 14: Hooks For Urine Bag

    MODEL DESCRIPTION 2.2.3. Hooks for urine bag Accessories 2.3.1. IV Pole...

  • Page 15: Component Scheme

    COMPONENT SCHEME COMPONENT SCHEME...

  • Page 16: Sub Assemblies

    COMPONENT SCHEME Sub Assemblies 3.1.1. Base ITEM DESCRIPTION Ring Tubtara Hex M6 Spring Ring M10 Bushing Wheel-Tb32 Screw CC M10x50 Ring D22xd10.5x2 Wheel 100 RD C01.015.055 Wheel Brake 100 RD C01.015.055T Base structure...

  • Page 17: Armrest (Br 591.005)

    COMPONENT SCHEME 3.1.2. Armrest (BR 591.005) ITEM DESCRIPTION Screw CQ M5x16 Round top-cover 25x2 PU foam Armrest Armrest structure...

  • Page 18: Backrest (Sf 591.002)

    COMPONENT SCHEME 3.1.3. Backrest (SF 591.002)
  • Page 19 COMPONENT SCHEME ITEM DESCRIPTION Screw CQ M6x20 Round top-cover 25x2 Ring pl D19xd8.5x2 Shaft D8x88 Pneumatic spring 800N BG C01.090.049 Separator pl D10x16 Clip 3.2x20 Thin Nut M10 Legrest tube Backrest structure Transport handle-ZG...

  • Page 20: Decompression Mechanism (Dc 591.052)

    COMPONENT SCHEME 3.1.4. Decompression Mechanism (DC 591.052) ITEM DESCRIPTION Screw CQ N8-3.5x9 Red knob D10 Decompression handle...

  • Page 21: Footrest (Ap 591.006)

    COMPONENT SCHEME 3.1.5. Footrest (AP 591.006) ITEM DESCRIPTION Screw CQ M6x20 Nut Nyloc M6 Screw CC M6x25 (partial thread) Plastic Roller Screw CE M6x20 Rubber Support Plastic Footrest Footrest Rod...

  • Page 22: Assembly

    COMPONENT SCHEME Assembly 3.2.1. Decompression Mechanism attachment ITEM DESCRIPTION Plastic cable tie 10 Screw CL M6x30 Base structure Decompression mechanism DC 591.052...

  • Page 23: Armrest Attachment

    COMPONENT SCHEME 3.2.2. Armrest attachment...
  • Page 24 COMPONENT SCHEME ITEM DESCRIPTION Split ring M6 Red Knob M6x25 Ring Tubtara Hex M6 Screw CS M6x20 Ring D9xd6.5x0.7 Spring D1 C21 Screw CC M6x25 (partial thread) Plastic Bushing Armrest BR 591.005 Armrest Side Plate Decompression mechanism DC 591.052...

  • Page 25: Legrest Attachment

    COMPONENT SCHEME 3.2.3. Legrest attachment ITEM DESCRIPTION Ring pl D19xd8.5x2 Separator D6x6.5 Hoop rivet 6x18 Ring D16xd6.4x1.6 Legrest lever Legrest upholstery SF 591.004...

  • Page 26: Backrest Attachment

    COMPONENT SCHEME 3.2.4. Backrest attachment ITEM DESCRIPTION Separator D12x5 Screw OQ M8x25 Ring steel D24xd8.4x2 Ring pl D25xd13x2 Nut Nyloc M8 Ring pl D19xd11x5 Ring pl D19xd8.5x2 Clip 3.2x20 Shaft D8x59 Backrest SF 591.002...

  • Page 27: Legrest Tube

    COMPONENT SCHEME 3.2.5. Legrest tube...
  • Page 28 COMPONENT SCHEME ITEM DESCRIPTION Ring pl D19xd11x5 Ring pl D19xd8.5x2 Clip 3.2x20 Separator D6x6.5 Hoop rivet 6x18 Shaft D8x73...

  • Page 29: Seat Attachment

    COMPONENT SCHEME 3.2.6. Seat attachment ITEM DESCRIPTION Split ring M6 Plastic cable tie 10 Screw CS M6x50 Screw CL M6x35 Middle support-Decompression Upholstery Seat SF 591.003...

  • Page 30: Footrest Attachment

    COMPONENT SCHEME 3.2.7. Footrest attachment ITEM DESCRIPTION Base structure Footrest AP 591.006...

  • Page 31: Fault Detection And Repair

    FAULT DETECTION AND REPAIR FAULT DETECTION AND REPAIR...

  • Page 32: Components Recommended For Replacement

    FAULT DETECTION AND REPAIR Components recommended for replacement Code DESCRIPTION AP 591.006 Footrest BR 591.005 Armrest (pair) DC 591.052 Decompressor SF 591.002 Backrest SF 591.100 Headrest SF 591.003 Seat SF 591.004 Legrest BG C01.090.049 Pneumatic spring 800N RD C01.015.055 Wheel Ø100 ABS RD C01.015.055T Wheel Ø100 ABS with brake...

  • Page 33: Fault Detection

    Check if the handle pin is inside the locking hole. Repair: If this is not the case, inspect screws, plastic rings, clips and springs and replace any missing or damaged ones. For other malfunctions please contact our technical client support services, by e-mail: sede@imo.com.pt...
  • Page 34 FAULT DETECTION AND REPAIR...
  • Page 35 PROTEÇÃO AMBIENTAL DE DESMANTELAMENTO...
  • Page 36 Rua Dr. Aurélio Teixeira de Chaves, 87, 1000-115 Sousa, 575, 4650-312 Lisboa-Portugal Rande-Portugal Tel.: +351 217 963 478 Tel.: +351 255 340 220 Fax: +351 217 975 822 Fax: +351 255 340 239 lisboa@imo.com.pt sede@imo.com.pt IMO LISBOA HEADQUARTERS Av. Defensores de...
