ESCO Technologies ETS-Lindgren 5247 Quick Start Manual

Maintenance Recommendations

Finger stock gasket is used around the door for RF shielding.
Periodically you must inspect the finger stock to determine
if it needs to be cleaned or replaced. Replacement finger stock
is available from ETS-Lindgren (part# 890906).
To clean finger stock, use an aerosol lubricant to loosen any debris, and then low-pressure air
or another aerosol to remove the excess lubricant. Alternatively, a soft rag may be used to
remove dirt and excess liquid from the finger stock.

Product Information Bulletin

See the ETS-Lindgren Product Information Bulletin included with your shipment for the following:
•
Safety, regulatory, and other
product marking information
•
Steps to receive your shipment

Safety Information

CONTACT ETS-LINDGREN PRIOR TO SERVICING. Servicing (or modifying) the
WARRANTY
unit by yourself may void your warranty. If you attempt to service the unit by yourself,
disconnect all electrical power before starting. There are voltages at many points in
the instrument that could, if contacted, cause personal injury. Only trained service
personnel should perform adjustments and/or service procedures upon this
instrument. Capacitors inside this instrument may still be CHARGED even when
instrument is disconnected from its power source.
For complete safety information, see the Product Information Bulletin.
USA Headquarters
1301 Arrow Point Drive
Cedar Park, TX 78613
Phone: +1.512.531.6400
Please see ets-lindgren.com for a list of all ETS-Lindgren offices.
© Copyright 2009-2023 by ETS-Lindgren Inc. All Rights Reserved. No part of this document may be copied
by any means without written permission from ETS-Lindgren Inc.
The ETS-Lindgren logo is a registered trademark of ETS-Lindgren Inc.
Revision/Date: A, Initial Release - May, 2009
399304, Rev B B, Clarify specs - April, 2023
Finger stock gasket,
part# 890906
•
Steps to return a component for service
•
ETS-Lindgren calibration service
•
ETS-Lindgren contact information
.
ets-lindgren.com

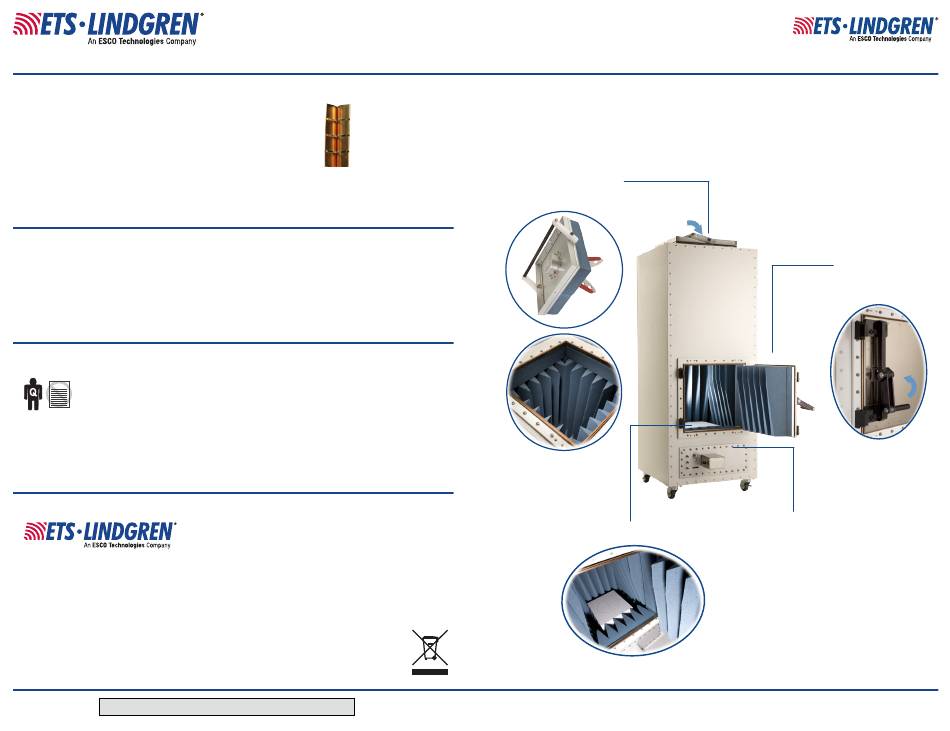

Model 5247 Shielded Test Cell Enclosure
The following views, instructions, and specifications apply to a standard configuration of the
ETS-Lindgren Model 5247 Shielded Test Cell Enclosure
Model 5247 configurations. Contact ETS-Lindgren for questions regarding your configuration.
Removable Access &
Antenna Mounting Panel
Rotate handle
to open
3164-08
Dielectric Platform for EUT
Can be removed;
positioning pins
included for easy
replacement
. Components may vary for custom
Door
Dual latch
RF gasket
Raise handle to open,
lower to close
Connector Panel
SMA (1)
Type N (3)
D-sub 25-pin, filtered (1)
6-line fiber optic feedthrough
AC filter with on/off switch,
IEC inlet (1), IEC outlet (2)
