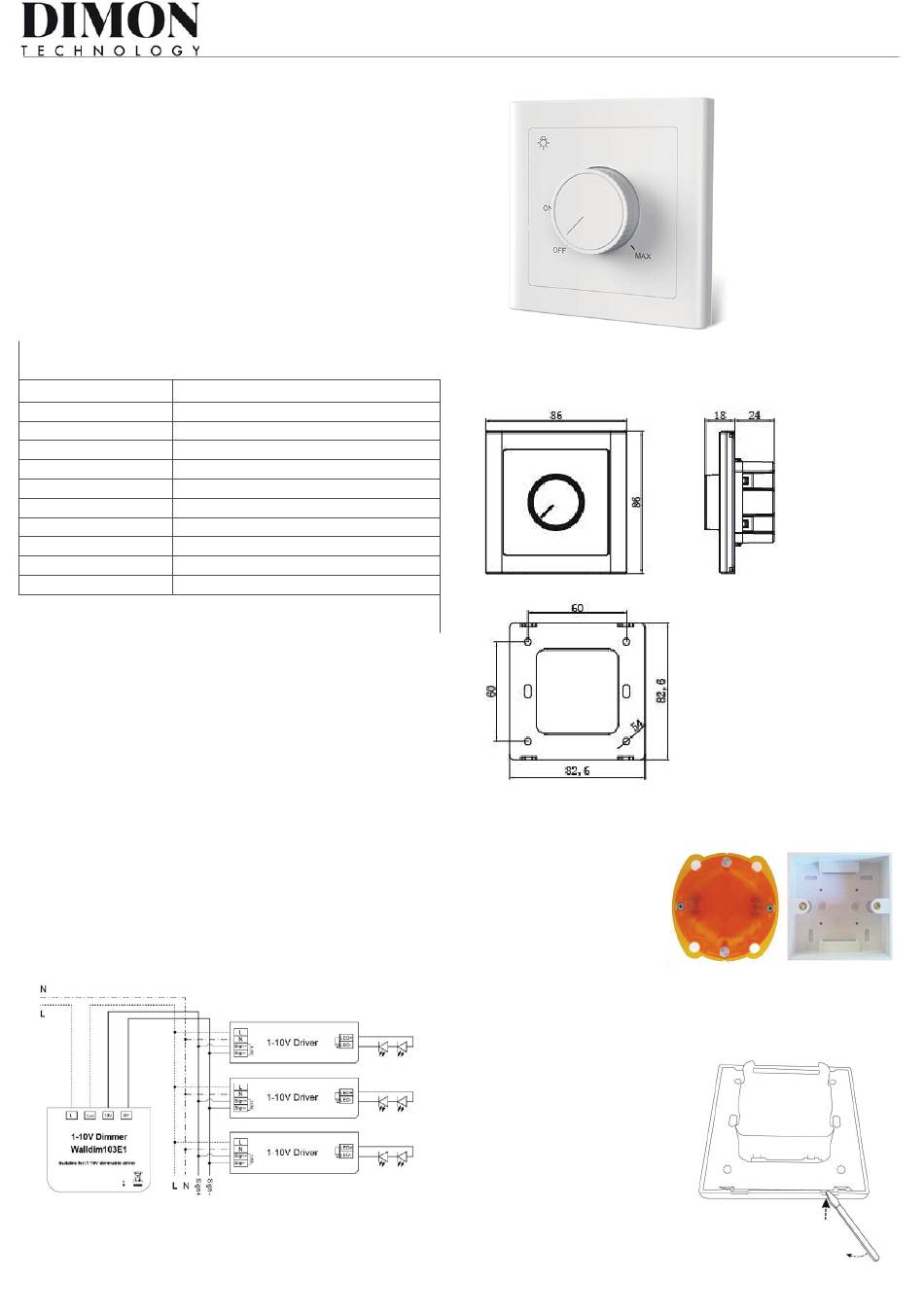

Walldim103E1

Product Features

·Suitable for 1-10V LED dimming driver with passive signal support
·Installation in the European and domestic electrical box
·Can switch off the signal and power supply at the same time
·ABS material, high flame retardant
·Fashion, and easy to use
·Used in the study, bedroom, restaurant, bars and other places need dimming control

Technical Parameters

Model
Output
Control output load capacity
Switching output load capacity
Type
Panel color
Panel size
Packing size
G.W.
Working temp.
Relative humidity

Function Description

(1.Turn the knob clockwise , after hear the 'click' sound,the knob signal is turned on
,continue to adjust the knob ,the
brightness of light varies from minimum to maximum. Turn the knob by counter-
clockwise, the brightness of light
varies from maximum to minimum ,continue to adjust the knob,after hear the 'click'
sound, the knob signal is closed.

Wiring Diagram

User's manual: 2020-9
Walldim103E1
Variable resistance signal
Max. 20 mA
Max. 6 A resistive load
Passive dimmer
Ivory-white
86*86*42mm(W*H*D)
104*104*52mm(W*H*D)
140g
-10~55℃
20-90% RH
Dimension(mm)

Installation Guide

1. Mount an electrical box inside the wall
2. To separate the panel and the back
cover of the controller with a screwdriver
along the gap of the back cover.
1/1
Walldim103E1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Walldim103E1 and is the answer not in the manual?

Questions and answers

Summary of Contents for DIMON TECHNOLOGY Walldim103E1

  • Page 1 Walldim103E1 Walldim103E1 Product Features ·Suitable for 1-10V LED dimming driver with passive signal support ·Installation in the European and domestic electrical box ·Can switch off the signal and power supply at the same time ·ABS material, high flame retardant ·Fashion, and easy to use ·Used in the study, bedroom, restaurant, bars and other places need dimming control...
  • Page 2 Walldim103E1 3. Connect the wires according to the 4. To put the back cover on the electrical box and fix it with the screw. “Wiring Diagram” 5.To buckle the glass panel to the bottom box. Caution 1. Connect the load wire at first, then connect the power wire; Please ensure short circuit can not occur between wires before you turn on the power.
