Read this manual carefully before installing, operating or servicing this equipment. It's the responsi-
bility of the employer to ensure this manual is read by the operator. Please preserve this manual.
This document is issued with Product Serial No
Operation and Maintenance Guide
1 VM SG Iron and Stainless Steel Construction, All variants
Descriptions
FOOT Model with Lube / Lube-Free, SG Iron / SS & NPT / BSPT
Variants
HUB Model with Lube / Lube-Free, SG Iron / SS & NPT / BSPT
Variants
NEMA Model with Lube / Lube-Free, SG Iron / SS & NPT / BSPT
Variants
1 V M
<<Serial No>>
Advertisement
Table of Contents
Related Manuals for Teryair 1VMSNPT
Summary of Contents for Teryair 1VMSNPT

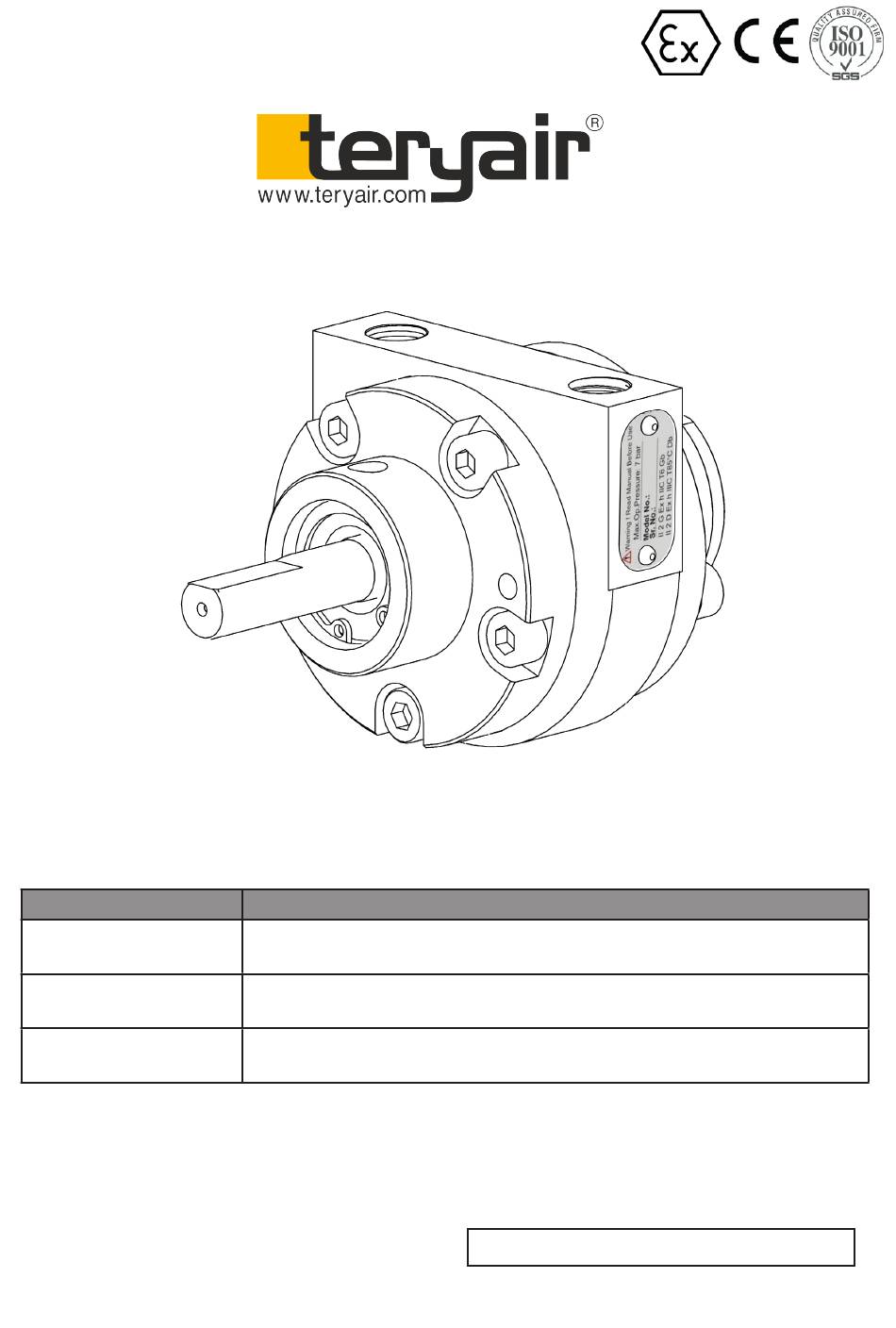

- Page 1 Operation and Maintenance Guide 1 V M 1 VM SG Iron and Stainless Steel Construction, All variants Models Descriptions FOOT Model with Lube / Lube-Free, SG Iron / SS & NPT / BSPT 1VMSXXX Variants HUB Model with Lube / Lube-Free, SG Iron / SS & NPT / BSPT 1VMTXXX Variants NEMA Model with Lube / Lube-Free, SG Iron / SS &...
-
Page 2: Table Of Contents
Operation and Maintenance Guide 1 VM Air Motor Series Page 2 Table of Contents Nomenclature Technical Data Safety Instructions Installation Instructions Operating instructions Suggested Lubricants Troubleshooting Dis assembly and Re-assembly Exploded View for 1 VM Air Motor Bill of Materials for 1VM Series (SG Iron) Bill of Materials for 1VM Series (SS) Dimensional Data Repair Kits for 1VM Eu Declaration Of Conformity Warranty Certificate FF-MM-377-REV - 04... -
Page 3: Nomenclature
Operation and Maintenance Guide 1 VM Air Motor Series Page 3 Nomenclature Material of Lubricated or Threading on Inlet Size Motor Type Mounting Construc- Lube-Free and Outlet tion L - Face Type VM - Vane Type S- Foot Type A- Lubricated R- NPT PM - Piston Type L - SG Iron... -
Page 4: Safety Instructions
Do Not temp. Class T6 (85°C). dis-assemble in explosive atmosphere. Caution i. EN / ISO 80079-36 : 2016 : Explosive Use only genuine Teryair or Teryair approved atmospheres—Part 36 :Non-electrical accessories. equipment for explosive atmospheres— Basic metod and requirements... -
Page 5: Installation Instructions
Operation and Maintenance Guide 1 VM Air Motor Series Page 5 Safety wear mandatory while operating Vane should not exceed 80º C. Do not continue motor to operate the motor if the measured surface temperature exceeds temperature listed on the Air stream from product may contain solid o motor. -
Page 6: Operating Instructions
Lube-free. Hoses • Daily before operation check the hoses, especially the high pressure hoses for damage or leaks • Use genuine Teryair spares and if possible mention the serial number of the Vane motor when ordering spares. FF-MM-377-REV - 04... -
Page 7: Suggested Lubricants
Operation and Maintenance Guide 1 VM Air Motor Series Page 7 Suggested Lubricants Brand Above 27 Deg C ( From 5 Deg C to 27 Deg C Below 5 Deg C Shell Toona R 72 Toona R 41 Toona R 27 Mobil Almo 529 Almo 527... -
Page 8: Dis Assembly And Re-Assembly
Operation and Maintenance Guide 1 VM Air Motor Series Page 8 Dis assembly and Re-assembly Disconnect air supply and vent all air lines. bearing using press/mallet precisely and Air stream from product may contain solid or ensure that rotor face is not above the liquid material that can result in eye or skin housing face. -
Page 9: Exploded View For 1 Vm Air Motor
Operation and Maintenance Guide 1 VM Air Motor Series Page 9 Exploded View for 1 VM Air Motor FOOT NEMA FF-MM-377-REV - 04... -
Page 10: Bill Of Materials For 1Vm Series (Sg Iron)
Operation and Maintenance Guide 1 VM Air Motor Series Page 10 Bill of Materials for 1VM Series (SG Iron) Part Illu. No. Description FOOT NEMA Number 1VMTAL 1VMTOL 1VMSAL 1VMSOL 1VMNAL 1VMNOL HOUSING-NPT 811 05 01 HOUSING -NPT (LUBE-FREE) 811 05 01LF HOUSING-BSPT 811 05 05 HOUSING -BSPT (LUBE-FREE) -
Page 11: Bill Of Materials For 1Vm Series (Ss)
Operation and Maintenance Guide 1 VM Air Motor Series Page 11 Bill of Materials for 1VM Series (SS) Part Illu. No. Description FOOT NEMA Number 1VMTAS 1VMTOS 1VMSAS 1VMSOS 1VMNAS 1VMNOS HOUSING-NPT 811 07 01 HOUSING -NPT (LUBE-FREE) 811 07 01LF HOUSING-BSPT 811 07 06 HOUSING -BSPT (LUBE-FREE) -
Page 12: Dimensional Data
Operation and Maintenance Guide 1 VM Air Motor Series Page 12 Dimensional Data Foot Mounting 1VM Hub Mounting 1VM FF-MM-377-REV - 04... -
Page 13: Repair Kits For 1Vm
Operation and Maintenance Guide 1 VM Air Motor Series Page 13 NEMA Flange Mounting 1VM Repair Kits for 1VM Repair KIT Ordering No Suitable for 8119701 Suitable for 1 VM all variants Note - Repair Kit includes Blades, Bearings, Shims, Ejection rings, Oil Seals and O rings FF-MM-377-REV - 04... -
Page 14: Eu Declaration Of Conformity
Notified body to whom Technical file has logged with: - Technicka Inspekcia (Ref: 1354). DECLARATION: - TERYAIR EQUIPMENT PVT. LTD., declare that under our sole responsibility for the supply of the product defined above, the said product complies with all the applicable Directives, Regulations and all essential Health and Safety requirements applying to it. -
Page 15: Warranty Certificate
Teryair products or components. Dealer/End User shall have no right or remedy and Teryair shall have no liability or obligation under the warranty, if: (i) a Product is altered, changed, modified or tampered with in any way, (ii) a Product is damaged after deposit with the transporter for shipment; (iii) a Product is not properly preserved, packaged, stored, processed or handled after receipt;... - Page 16 Operation and Maintenance Guide 1 VM Air Motor Series Page 16 This page is intentionally Left blank. FF-MM-377-REV - 04...
