Summary of Contents for Mamba MATRIX ROUTER 32x32

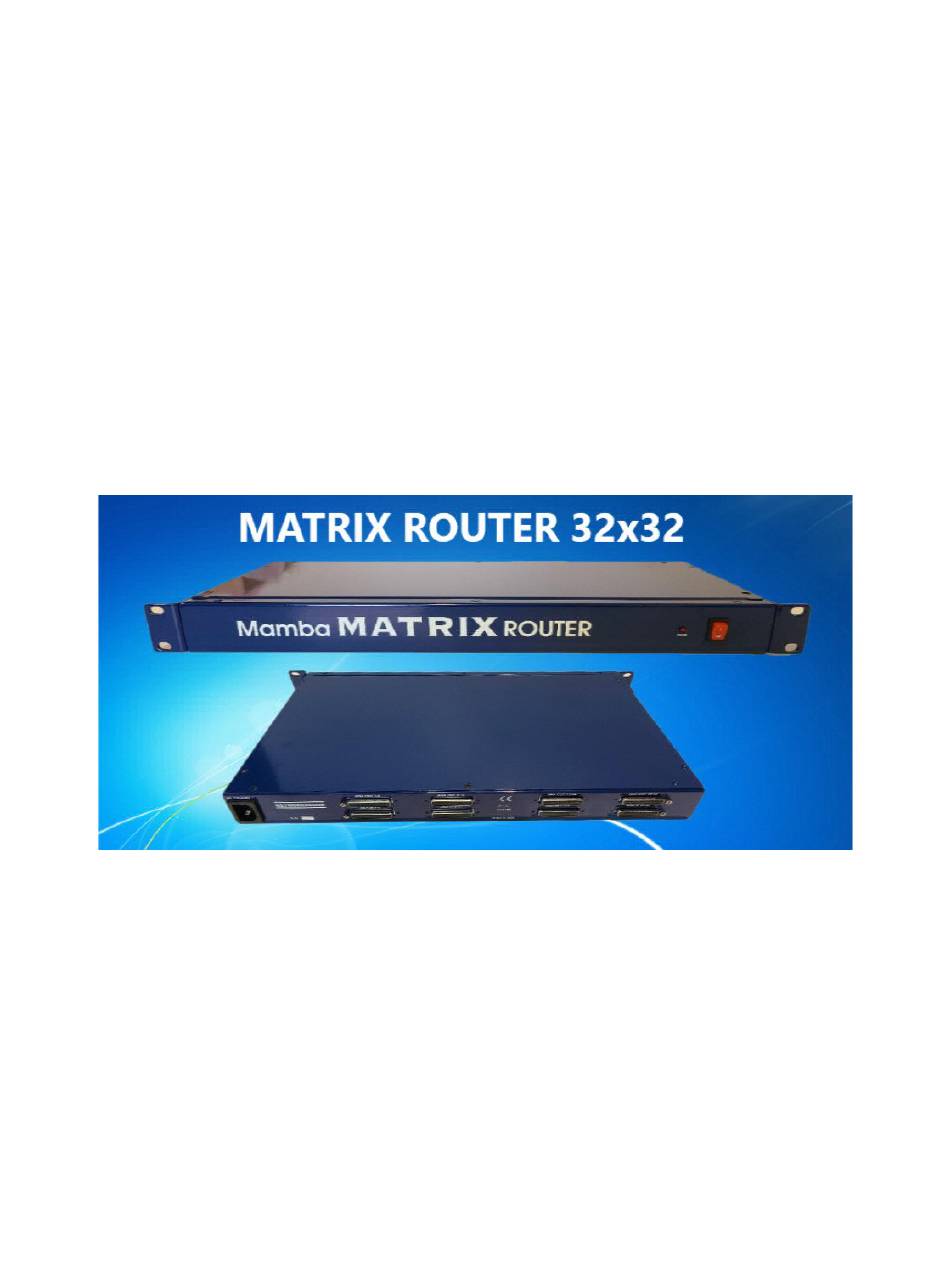

- Page 1 Mamba MATRIX Audio Router/Switcher Technical Specification Ver 1.0 Property of NetworkSound, Inc Sacramento CA USA All Rights Reserved @2022...
-
Page 2: Technical Specification
You can add your home wifi name / password on the Setup page to connect to your home wifi network (auto) In the client mode, just open a browser and type in Host name (same as hotspot name - e.g. Mamba Matrix.local on URL window) - Page 3 No need to download an App from Apple or Android store Connect using Wifi direct (select “Mamba Matrix” on your device) or Home wifi network Use standard browser on your device and type in 192.168.4.1 IP address on URL window...

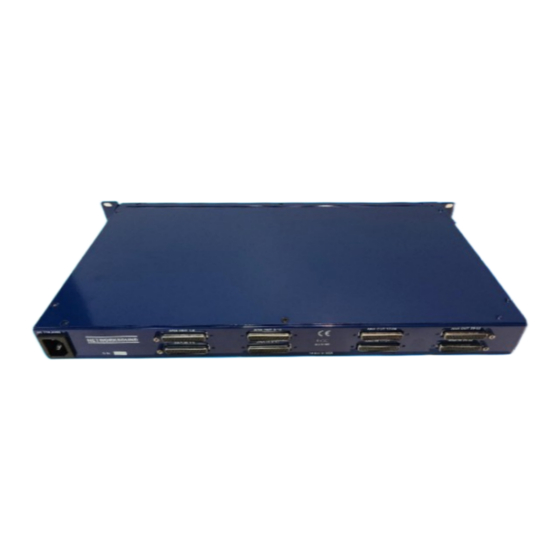

- Page 4 7.0 DB25 Tascam Analog Pin out Matrix Unit Front and Back [ 16x16 and 32x32]...
- Page 5 9.0 USB to Wifi Access of Matrix unit from PC...
- Page 6 10.0 THD+N graphs.
- Page 8 The Unit is configured default as 1-1 and 32-32 already. You can connect the DB cables for in and out and test audio. The input DBs 32 in are at bottom and Out on Top * YOUR PC IS CONNECTED TO BOTH Local WIFI and Mamba MATRIX WiFi- No ISSUES *...
- Page 9 [ Using WiFi Direct from a Phone or PAD ] 1. Make sure the unit is ON 2. On your PAD, select wifi option and look for Mamba-Matrix-32x32 3. Connect to it. Ignore if it says NO internet connection 4. Wait for wifi icon appear on the left top corner (Mean pad is connected to Matrix) 5.
