WARNING!
When working on main power connections of 230 V AC, the general and regional instal-
lation and safety regulations must be met. i.e. DIN VDE 0100
The device is to be installed and commissioned only by qualified electricians!
Important note on commissioning
During the transportation, the relay might have been exposed to severe shocks. As a re-
sult, the contact might move into operating position (K1-K2 closed).
At the beginning of the commissioning connect the TCS:BUS to the relay and to the
!
mains power to move the contact into its rest position.
Device overview
TCS:BUS
connection
jumper
terminals
TCS TürControlSysteme AG, TCS Hotline Germany: +49 (0)4194 98811-88
FAX: 04194 9881-29, E-Mail: hotline@tcsag.de, www.tcsag.de
location-independent installation
Safety instructions
relay con-
supply voltage:
nection
housing:
terminals
dimensions (in mm):
weight
Acceptable ambient temperature: -20 °C ... 50 °C
Input current (2-wire):
input current (3-wire):
Connecting diameter:
recommended length for separation:

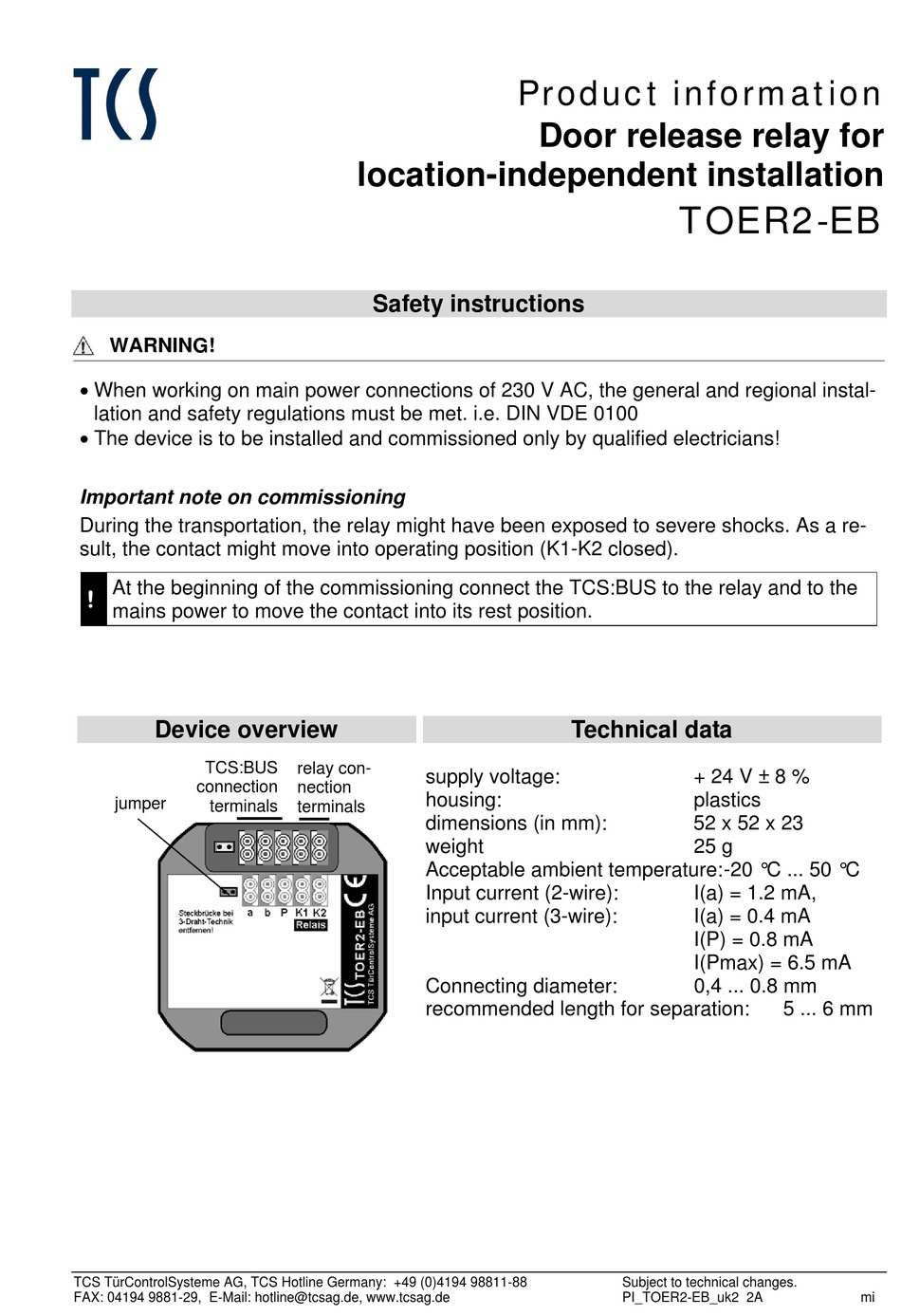

Product information
Door release relay for
TOER2-EB
Technical data
Subject to technical changes.
PI_TOER2-EB_uk2 2A
+ 24 V ± 8 %
plastics
52 x 52 x 23
25 g
I(a) = 1.2 mA,
I(a) = 0.4 mA
I(P) = 0.8 mA
I(Pmax) = 6.5 mA
0,4 ... 0.8 mm
5 ... 6 mm
mi
Advertisement
Table of Contents
Summary of Contents for TCS TOER2-EB
- Page 1 During the transportation, the relay might have been exposed to severe shocks. As a re- sult, the contact might move into operating position (K1-K2 closed). At the beginning of the commissioning connect the TCS:BUS to the relay and to the mains power to move the contact into its rest position.
- Page 2 11/2015 Field of application The TOER2-EB is a door release relay for specific door release, if several front-door stations and door opener are installed in one system. With the TOER2-EB the door, which called last, is opened. Can be used also for the evaluation of specific key functions of the indoor stations.
- Page 3 When using the device in 2-wire operating mode, max. 10 TOER2-EB can be connected. Programming The TOER2-EB can be programmed only with the Service Device TCSK by the following commands: Activation through door call, internal call to the parallel...
- Page 4 (between 1 and 255 s; in 1 s steps) Abbreviations: Ser.-No. = the serial number of the TOER2-EB ParSNr. = the serial number for the device, to which the relay, that is to be configured new, is to be allocated to.
