2GIG
Security & Automation System
GC2e Z-Wave Installation Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2GIG GC2e and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Nortek Control 2GIG GC2e

  • Page 1 ® 2GIG Security & Automation System GC2e Z-Wave Installation Guide...
  • Page 2: Table Of Contents

    Copyright © 2022 Nortek Security & Control LLC. All Rights Reserved. U.S. Patent D727,857. Australian Patent No. 357098. Additional Patents Pending. ® The 2GIG , GC3, GoControl, and Linear logos are trademarks of Nortek Security & Control LLC in the United States and/or other countries. Other Nortek Security &...
  • Page 3: Introduction

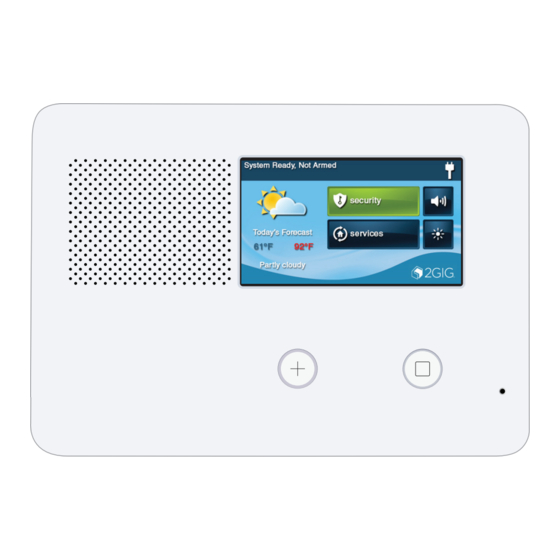

    Introduction The 2GIG GC2e Security Panel is also a Security Enabled Z-Wave Plus home automation controller. This product can be operated with other Z-Wave certified devices from other manufacturers. All non-battery operated nodes within the network will act as repeaters regardless of vendor to increase reliability of the network. It is compatible with both Z-Wave Plus with S2 Security and Legacy S0 Z-Wave automation devices.
  • Page 4: Adding Devices

    Adding Devices » From the Z-Wave Toolbox, press the add devices button. The panel will begin listening for new Z-Wave Device Follow the device manufacturing procedure for putting the device into add/remove mode. When the new Z-Wave device is discovered, the information will be displayed on the learn screen.
  • Page 5: Z-Wave Add Failures

    Z-Wave Add Failures Inclusion Failure If a Z-Wave device fails due to a security inclusion failure, the following screen will be displayed: » Press the Remove Failed Devices button. » Select OK. The panel will display the Remove Z-Wave Devices screen.
  • Page 6: Removing Devices

    To correct the failure: » Run “check network” from the “Services > Z-Wave > Devices >” screen. Note: If running check network does not correct the failure condition, remove and re-add the device to the panel. Removing Devices » From the Z-Wave Toolbox, press the remove devices button.
  • Page 7 Panel will show that it has entered Z-Wave shift mode. » Enter Add Controller Mode on the Primary Controller. Panel will display status of shift mode process. » Enter Add Controller Mode on the Primary Controller. Note: If the controller is S2, the screens that follow will display.
  • Page 8: Z-Wave Security Inclusion Failure

    Z-Wave Security Inclusion Failure If Z-Wave security inclusion fails when attempting to add the panel to another Z-Wave network, the following screens will be displayed: The Z-Wave button on the Services screen will display red. Pressing the red Z-Wave button (above) will display the following message.
  • Page 9: Z-Wave Network Check

    Z-Wave Network Check To perform a network check, enter the main Z-Wave Menu. » Press the check network button. Rediscover Z-Wave Network Enter the Z-Wave toolbox. » Press the advanced toolbox button. » Press the rediscover network button. The panel will go into network rediscovery mode and verify all routes and devices are functioning correctly.
  • Page 10: Renaming Z-Wave Devices

    Renaming Z-Wave Devices » From the “view all devices” screen tap the device you want to rename. » On the “basic device settings” screen, tap the rename button. » Enter new name for the device. Add Users to Z-Wave Lock Note: This section only applies if Installer Questions Q79 –...
  • Page 11: Basic Commands

    » Select a user. » Enter a lock code for the user, select ok, and then confirm the code and press ok again. You will see a confirmation that the lock code was changed. » Select ok. Lock codes will show next to users. »...
  • Page 12: Resetting The Z-Wave Network

    » Enter the value for the basic command (see device documentation for details. » Tap ok. The following screen shows the updated entry value (Figure 49). Resetting the Z-Wave Network To completely reset the Z-Wave controller, enter the advance Z-Wave toolbox. Note: If this controller is the primary controller for your network, resetting it will result in the nodes in your network being orphaned and it will be necessary...
  • Page 13: Additional Information

    Panel will display confirmation that controller has been reset. » Press ok to return to Z-Wave Toolbox. Additional Information Basic Commands » Basic Get commands to the GC2e panel will receive a response of Basic Report Value 0 » Basic Set commands to the GC2e panel are ignored Group Identifier »...
  • Page 14 [THIS PAGE LEFT INTENTIONALLY BLANK]...
  • Page 15 [THIS PAGE LEFT INTENTIONALLY BLANK]...
  • Page 16 A L A R M D E A L E R I N F O R M A T I O N Company Name: Your Account Number: Installation Date: 10023184-001 Rev-B Technical Support: 1-707-283-5900 • 1-800-472-5555 Contact: www.2gig.com • Dealers: 2gig.com/dealers ©2022 Nortek Security &...
