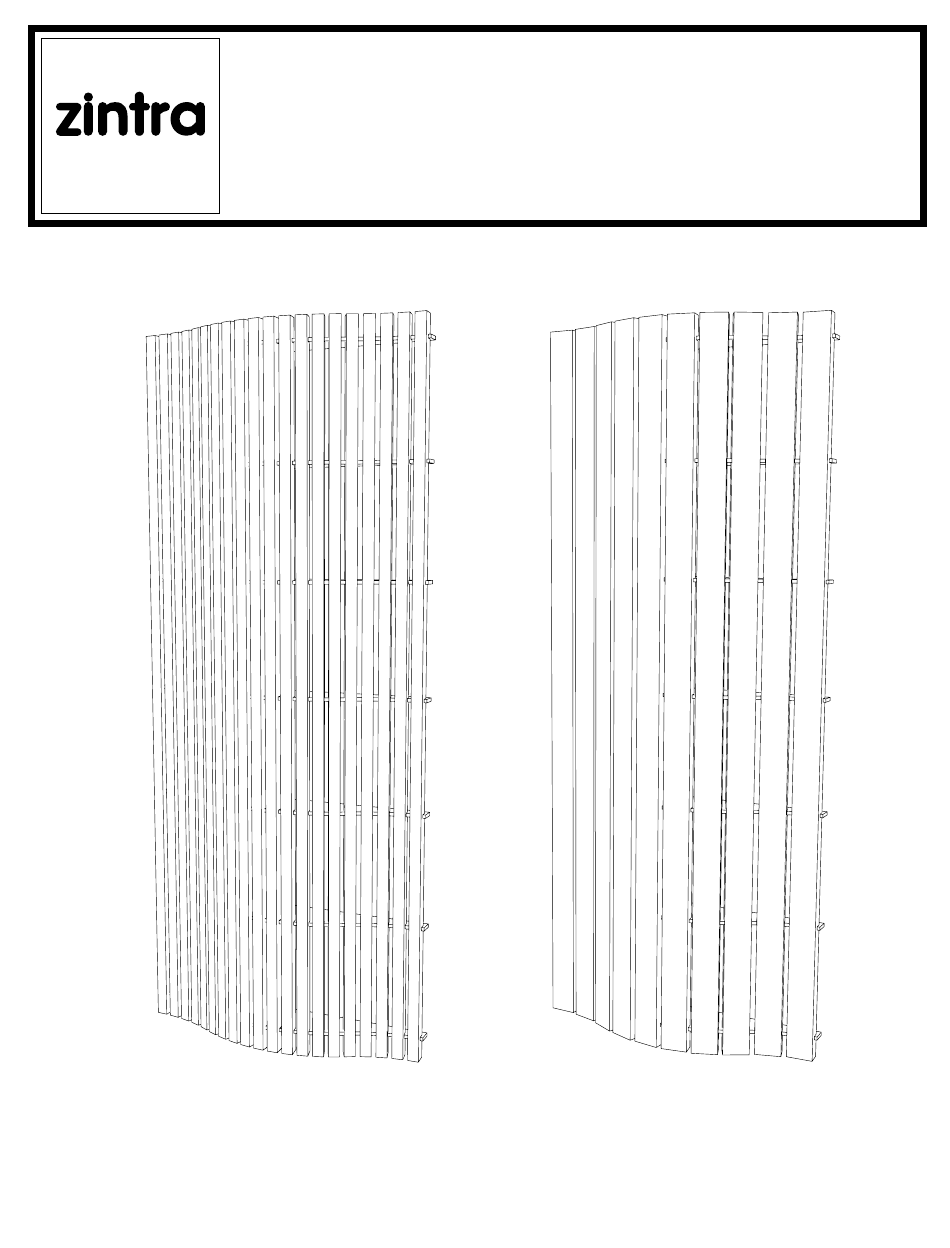

- Page 1 ZINTRA STICKS CURVED - NARROW & WIDE zintraacoustic.com PAGE 1...
- Page 2 ZINTRA STICKS CURVED - NARROW & WIDE zintraacoustic.com PARTS AND HARDWARE FOR A TYPICAL ASSEMBLY ZINTRA STICKS CURVED RIB - (7) (10) WIDE OR (20) NARROW CROSSRUNNER- (3) RIB’S SUPPORT - (7) SELF DRILLING SCREW - (28) END CAP - (6)
- Page 3 ZINTRA STICKS CURVED - NARROW & WIDE zintraacoustic.com YOU WILL NEED FOR A TYPICAL ASSEMBLY SPIRIT LEVEL TYPE MEASURE CORDLESS SCREWDRIVER (PHILLIPS BIT) SUITABLE SCREWS FOR DIFFERENT SURFACES - (12) SCREWS ARE NOT INCLUDED - INSTALLER TO SUPPLY BASED ON FIXING SUBSTRATE...
- Page 4 ZINTRA STICKS CURVED - NARROW & WIDE zintraacoustic.com STEP 1 CURVED RIBS INTALL 1.1 BEGIN WITH FIRST CURVED RIB. 1.2 INSERT EACH OF THE CROSSRUNERS INTO THE CORRESPONDING PRE-CUT RECTANGULAR HOLES IN THE CURVED RIB. 1.3 WITH THE CURVED RIB ALIGNED PRESS CURVED RIB DOWN INTO NOTCH UNTIL FULLY SEATED.
- Page 5 ZINTRA STICKS INSTALL 4.1 FOLD ZINTRA STICK. 4.2 INSERT THE ZINTRA STICK INTO THE CORRESPONDING PRE-CUT RECTANGULAR HOLES IN THE CURVED RIB. 4.3 REPEAT STEPS 4.1-4.2 FOR EACH ZINTRA STICK UNTIL THE ENTIRE ASSEMBLY HAS BEEN COMPLETED. STEP 5 FINISHING INSTALL A.
