DA SERIES Summary of products DA digital amplifier is full-digital, with international standard 1.5U height and 19” width, novel multi-channel design (sensitivity select function, compressor select function;stereo, parallel mode and bridge mode select function etc) and status indicator of multi-channel can show the working condition in each channel.
Page 3

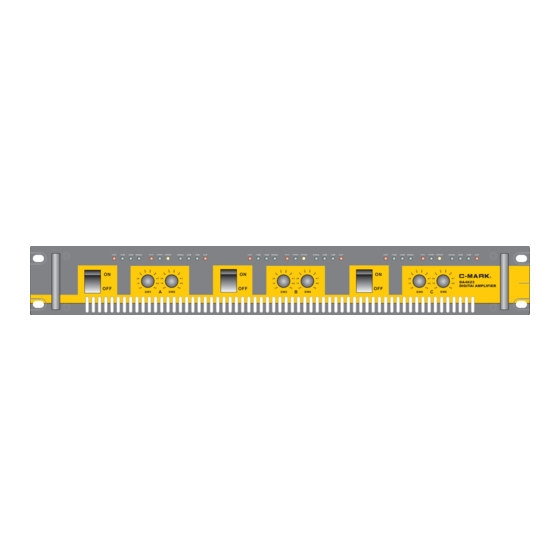

DA SERIES The front panel control Help DA4623 1) Power switch 3) Protection LED(PROTECT) 2) Gain After the panel Help 1) Group A mode switch 9) Group B mode switch 17) Group C mode switch 2) CH1 Amplifier output/ 10) CH3 Amplifier output/...
Page 4
DA SERIES Amp mode connection diagram 5.1-channel pre-amp level After-class digital amplifier DA4623 (Group A) (Group B) (Group C) Lord Speaker(4Ω600W) Lord Speaker(4Ω600W) Bridge(900W) Deputy Speaker(4Ω300W) Deputy Speaker(4Ω300W) Installation and manipulation Installation Venue Please install the amp in places that are with good air circulation. The amp can not be exposed to direct sunshine, or near to heat source or radiator.
DA SERIES Model power meter Output Power Impedance Model Group C Group A Group B 8Ω 2×300W 2×300W 2×300W Group A Group B Group C DA6600 2×600W 2×600W 2×600W 4Ω Group A Bridged 900W Group B Bridged 900W Group C Bridged 900W 8Ω...
Page 6
DA SERIES Output Power Impedance Model Group C Group A Group B 2×200W 2×100W 2×100W 8Ω Group A Group B Group C DA2442 2×400W 2×200W 2×200W 4Ω Group A Bridged 600W Group B Bridged 300W Group C Bridged 300W 8Ω...
Page 7
DA SERIES Model DA4600 DA4400 DA4300 DA4200 Output Power 4×300W 4×200W 4×150W 4×100W (8Ω/1KHZ) Output Power 4×600W 4×400W 4×300W 4×200W (4Ω/1KHZ) Output Bridged 2×900W 2×600W 2×500W 2×300W (8Ω/1KHZ) Input Sensitivity KΩ KΩ KΩ KΩ (Balanced) (Balanced) (Balanced) (Balanced) Input Impedance KΩ...
Page 8
DA SERIES Model DA4623 DA4422 Output Power 4×300W+2×150W 4×200W+2×100W (8Ω/1KHZ) Output Power 4×600W+2×300W 4×400W+2×200W (4Ω/1KHZ) Output Bridged 2×900W+500W 2×600W+300W (8Ω/1KHZ) Input Sensitivity 20KΩ 10KΩ 20KΩ 10KΩ Input Impedance (Balanced) (Unbalanced) (Balanced) (Unbalanced) Frequency Response 20-20 20-20 Ω Ω Distortion Degree 0.01%...
Generally speaking, the problems are usually caused by the wrong signal connection and bad cables or the damaged systems. If you can't solve this problem by yourself, please contact the technical department of C-MARK company directly.
