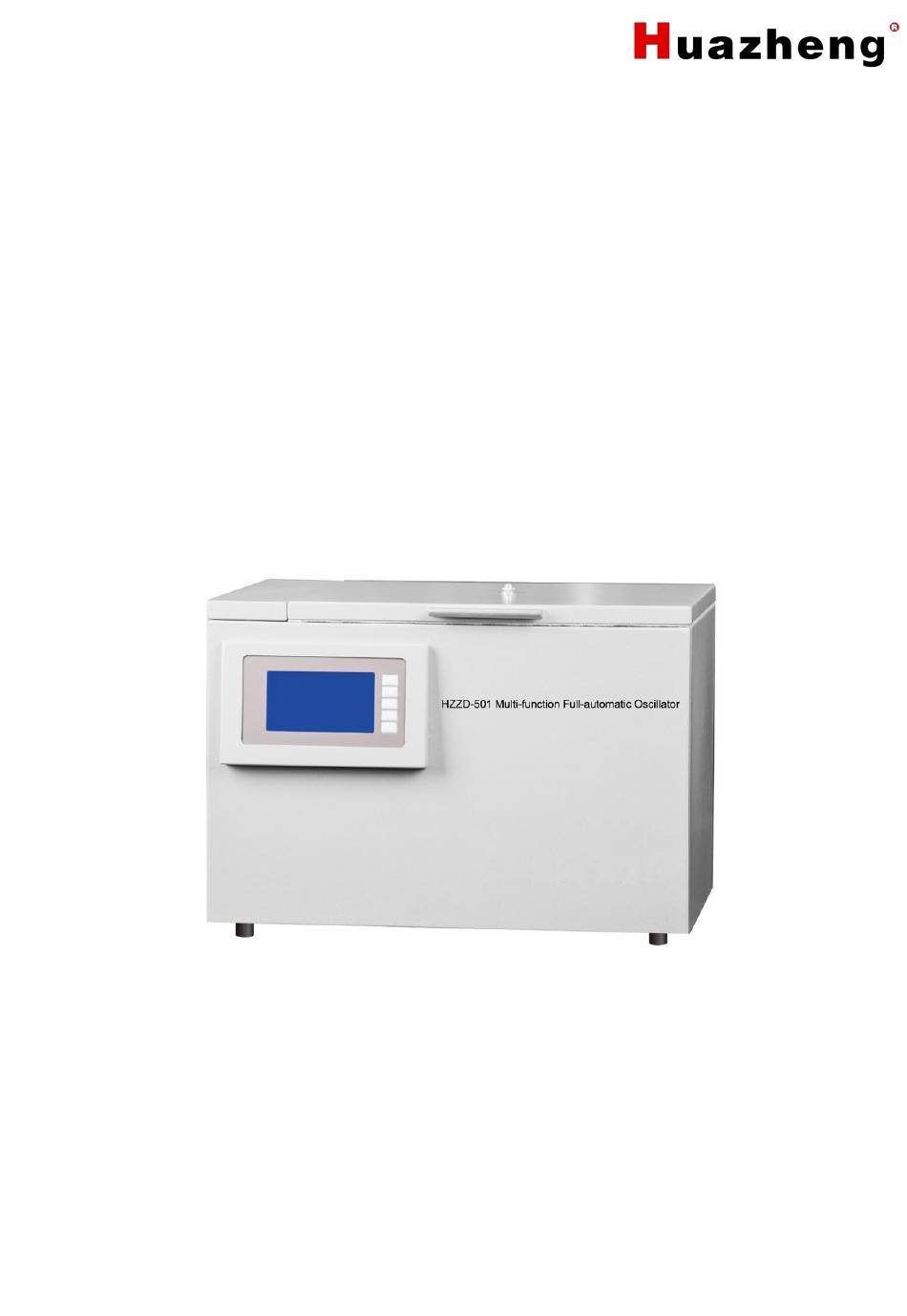

- Page 1 HZZD-501 Multi-function Automatic Oscillator Huazheng Electric Manufacturing (Baoding) Co., Ltd...
- Page 2 (0312) 6775656 to tell you to ser ve you at all times- Baoding Huazheng Elect ric Manufact uring Co. , Lt d. , our company will def initely make you satisf ied !
-
Page 3: Table Of Contents
Contents I. Overview .......................... 1 II.Technical specifications ....................1 III.Overview of the instrument ....................2 IV. Operation Instructions ....................3 V.Warm Tips ......................... 6 VI. Packing List ........................7... -
Page 4: Overview
I. Overview This instrument complies with the methods of GB/T 17623-1998 "Gas Chromatographic Determination of Dissolved Gas Component Content in Insulating Oil" and DL429.4-91 "Quantitative Determination of Water-soluble Acids"; used for samples such as transformer oil in the laboratory The constant temperature shock degassing. This instrument uses a 5-inch color LCD screen, which displays rich contents and is easy to use. -
Page 5: Iii.overview Of The Instrument
Weight: 35Kg 2.2 Run mode： Mode 1 ：Degas Temperature: 50℃； Shaking time : 20min； still time: 10min； Mode 2 :Mixing for Water-soluble acid Temperature: 75℃； Shaking Time: 5min； Still time: 0min； Mode 3 : User define： Temperature : 0-100℃； Shaking time: 0-99mins can be set as per customer’s needs. Still time: can customize among 0-99mins；... -
Page 6: Operation Instructions
IV. Operation Instructions 4.1 Turn on the power and enter the below interface 4.2 Degassing When press “Mode 1” key in main menu the instrument start degassing program and then display the follow Page Press the "start" key, and the instrument will automatically heat up, oscillate, and keep constant temperature until the end of the test. - Page 7 After the test is over, the buzzer of the instrument will emit a warning tone. When the test is in progress, press the "Stop" button, and the instrument will stop heating, oscillating, and constant temperature. Press the "Exit" key to exit the current interface and return to the main boot interface. 4.3 water-soluble acid interface;...
- Page 8 Press the "Start" key, and the instrument will automatically heat up and oscillate to the end of the test. When the test is in progress, press the "Stop" button, and the instrument will stop heating, oscillating, and constant temperature. Press the "Exit" key to exit the current interface and return to the main boot interface. 4.4 User Define When press “Mode 3”...
-
Page 9: V.warm Tips
The temperature, oscillation time and static time can be set arbitrarily according to the requirements of use; the test is in progress, press the "stop" button, the instrument will stop heating, oscillation, and constant temperature. Press the "Exit" key to exit the current interface and return to the main boot interface. -
Page 10: Packing List
VI. Packing List Quantity Item Stainless steel frame Power line Fuse pipe...
