Function:
The Auxiliary port allows the VP16 to control external devices or read external switches/buttons.
Pinout:
Pin
Description
1
PWM Channel 1 Output
2
PWM Channel 2 Output
3
Switch/Button Input
4
Signal Ground
PWM Profile:
Voltage: 5V
Update Speed: <10ms
Frequency Range: 150Hz – 1Hz
Frequency = 1/Periodic Time or f = 1/T Hz
Periodic Time = 1/Frequency or T= 1/f sec
Copyright ©2019 Volo Performance Inc.

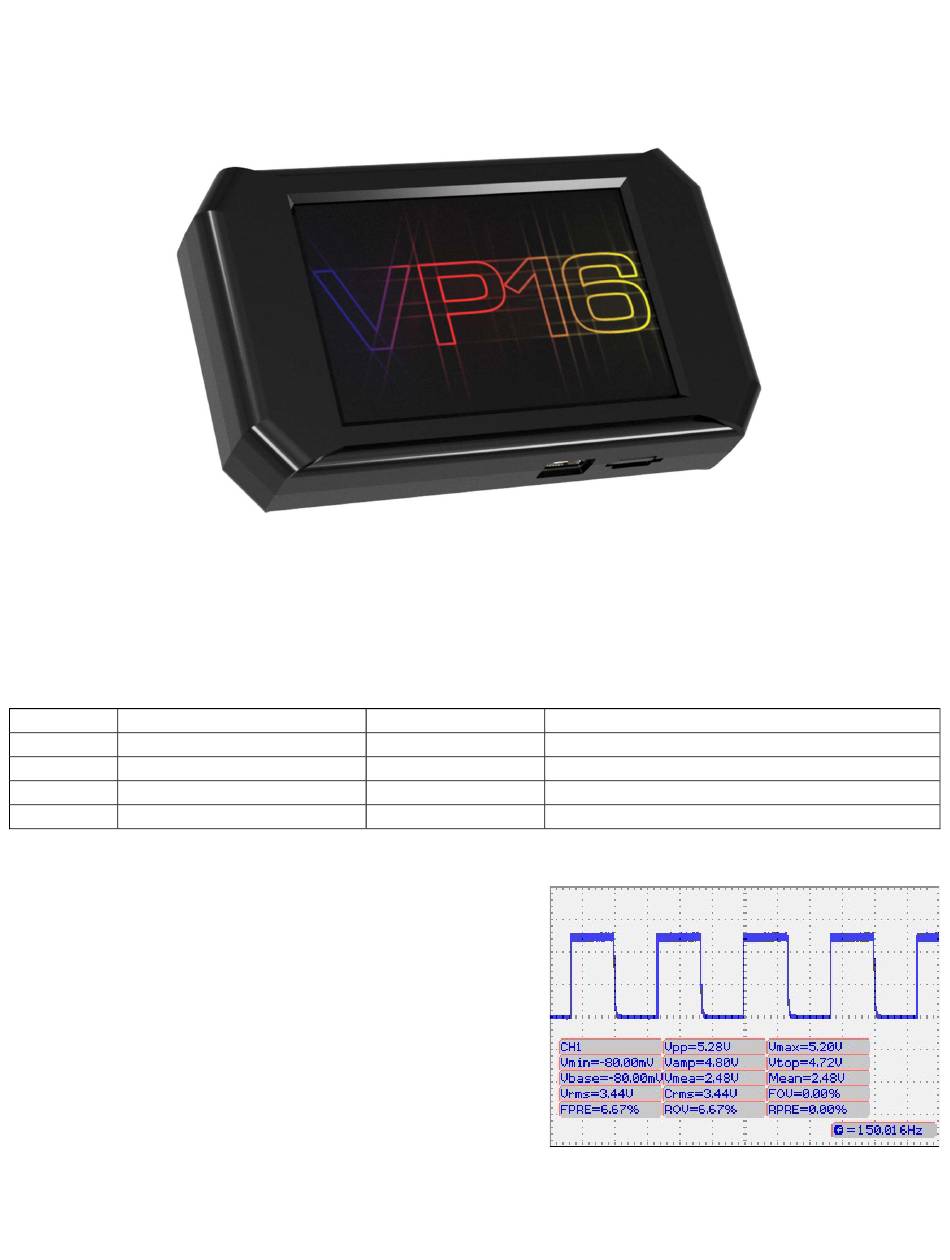

VP16 Auxiliary Port Manual
High
5V 100mA max
5V 100mA max
Signal Ground
Low
Signal Ground
Signal Ground
Float / No Connection
Advertisement
Table of Contents
Related Manuals for VOLO VP16
Summary of Contents for VOLO VP16
- Page 1 VP16 Auxiliary Port Manual Function: The Auxiliary port allows the VP16 to control external devices or read external switches/buttons. Pinout: Description High PWM Channel 1 Output 5V 100mA max Signal Ground PWM Channel 2 Output 5V 100mA max Signal Ground...
- Page 2 Creating a Simple Map: You must create a Map to tell the VP16 exactly when to turn the controller on or off. For this example, we are creating a simple Map that will: Switch on the controller when the engine exceeds 3,000 RPM.
- Page 3 6. Click Save As… and name the map “onOver3k.map” NOTE: Name cannot exceed 8 characters. 7. Return the Micro SD Card to your VP16. 8. Start the vehicle and select PWM from the VP16’s menu. 9. Under Channel 1, use the arrows to select the file. 10. Check to enable the map.
- Page 4 11. Verify map is loaded by revving engine over 3,000 RPM. The controller will switch on at 100% power. NOTE: The VP16 will automatically save your PWM map settings and reload them on restart. Creating a Complex Map: For this example, we are creating a Map that will: Switch on the controller slowly with RPM, but only if the vehicle is warm.
- Page 5 10%. The controller will now output only 10% of its power when Coolant Temperature and RPM are within this range. 7. Select the next group of cells under 2200 RPM and click twice to set the output to 20% Copyright ©2019 Volo Performance Inc.
- Page 6 11. Click Save As… and create a file name 12. Return the Micro SD Card to your VP16. 13. Start the vehicle and select PWM from the VP16’s menu. 14. Under Channel 1, use the arrows to select the file you made and then click Enabled.
- Page 7 Frequency Changing Coming soon. Copyright ©2019 Volo Performance Inc.
