Summary of Contents for Dexin DX3504

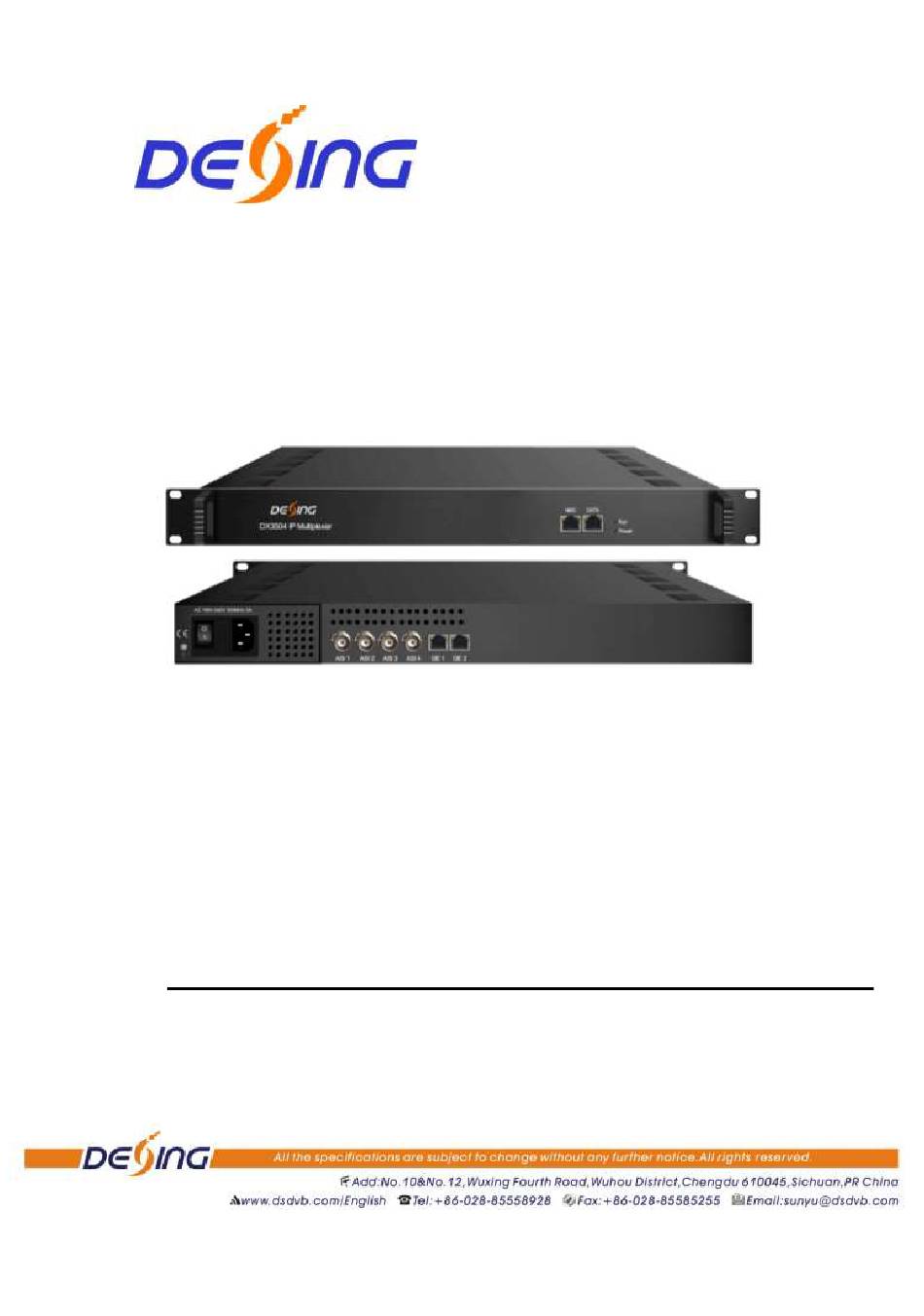

- Page 1 DX3504 IP Multiplexer User’s Manual Dexin Digital Technology Corp. Ltd...
-
Page 2: Table Of Contents
DX3504 IP Multiplexer User’s Manual DIRECTORY Chapter 1 Product Outline ................1 1.1 Outline ......................... 1 1.2 Features ....................... 1 1.3 Principle Chart ...................... 1 1.4 Technical Specifications ..................2 1.5 Appearance and description ..................3 Chapter 2 Installation Guide ................4 2.1 Acquisition Check .................... -
Page 3: Chapter 1 Product Outline
IP ports. It can multiplex up to 4 ASI and 513 IP input to 5 MPTS, and the amount of ASI output should based on ASI input (ASI port can be used as input or output). DX3504 IP multiplexer has the functions of supporting auto- generation of PSI/SI information, PID re-mapping, service filtering and PCR adjusting. -
Page 4: Principle Chart
DX3504 IP Multiplexer User’s Manual 1.3 Principle Chart 1.4 Technical Specifications 4 bi-direction ASI ports: max 4 ASI input/output, BNC 75Ω 3 bi-direction Data ports (RJ45): 513 IP input over UDP/RTP (256×2 IP in thruGE1 and GE2, 1 IP in... -
Page 5: Appearance And Description
DX3504 IP Multiplexer User’s Manual 1.5 Appearance and description Front Panel Illustration: Rear Panel Illustration NMS port for network management connection Data port for IP input and output Run and Power Indicators 4 ASI input/output Interfaces (Bi-direction interface) GE1, GE2 (IP stream input and output interface) -
Page 6: Chapter 2 Installation Guide
DX3504 IP Multiplexer User’s Manual Chapter 2 Installation Guide 2.1 Acquisition Check When user opens the package of the device, it is necessary to check items according to packing list. Normally it should include the following items: DX3504 IP Multiplexer ... - Page 7 DX3504 IP Multiplexer User’s Manual Item Requirement When user installs machine frame array in one machine hall, the distance between 2 rows of machine frames should be Machine Hall Space 1.2~1.5m and the distance against wall should be no less than 0.8m.
-
Page 8: Wire's Connection
When the device adopts united way, the grounding resistance should be smaller than 1Ω. Caution: Before connecting power cord to DX3504 IP Multiplexer, user should set the power switch to “OFF”. 2.4 Signal Cable Connection The signal connections include the connection of input signal cable and the connection of output signal cable. - Page 9 DX3504 IP Multiplexer User’s Manual 2.4.1 DX3504 IP Multiplexer Cable Illustration: IP Output Cable Illustration: ASI Input /Output Cable Illustration:...
-
Page 10: Chapter 3 Web-Based Nms Management
DX3504 IP Multiplexer User’s Manual Chapter 3 Web-based NMS Management Users can only control and set the configuration with the web Brower in the PC (Personal Computer). Connect the PC and the device with net cable, and use ping command to confirm they are on the same network segment. - Page 11 DX3504 IP Multiplexer User’s Manual System information User can click any item here to enter the corresponding interface to check Figure-2 3.2.2 Parameters Parameters →Interface Clicking “Interface”, it displays the interface where users can configure the input parameters. (Figure-3) Users can choose ASI or IP as the input source, and select ASI direction and set IP input address.
- Page 12 DX3504 IP Multiplexer User’s Manual IP input over UDP/RTP Figure-4 Parameters →Batch Clicking “Batch”, users can batch process IP input parameters and program mux parameters.(Figure-5) Parse program: parse all the program at rang of setting. The range is 1-517 (513 IP & 4 ASI).
- Page 13 DX3504 IP Multiplexer User’s Manual Figure-5 Mux: multiplex program to out at rang of setting. Select the output channel (Channel A-E) and set the range. If you set the range as 1 to 32, select “to Channel A” and then click “Apply”, it will output all the multiplexed programs (IP 1-32) to output channel A.
- Page 14 DX3504 IP Multiplexer User’s Manual Click this button to effect the configurations at last. Figure-7 Parameters →Mux Click “Mux”, it displays the interface where users can configure the 5 output channels parameters separately. (Figure-8) Output Area Input Area Operation Area Figure-8 Configure ‘Input Area’...
- Page 15 DX3504 IP Multiplexer User’s Manual To refresh the output program information Select one input program first and click this button to transfer the selected program to the right box to output. Similarly, user can cancel the multiplexed programs from the right box.
- Page 16 DX3504 IP Multiplexer User’s Manual Click ‘IP Stream’, it will display the interface as Figure-11 where to set IP out parameters. Set the IP input address of the 3 data ports UTP/RTP Select MPTS 1-4 output thru GE 1 or GE2 and also support output thru GE1&GE2...
- Page 17 DX3504 IP Multiplexer User’s Manual Click “Password”, it will display the screen as Figure-13 where to set the login account and password for the web NMS. Figure-13 System →Save/Restore Click “Save/Restore”, it will display the screen as Figure-14 where to save or restore your configurations.
- Page 18 DX3504 IP Multiplexer User’s Manual Figure-15 System →Firmware Click “Firmware”, it will display the screen as Figure-16 where to update firmware for the device. Figure-16...
-
Page 19: Chapter 4 Troubleshooting
DEXIN’s ISO9001 quality assurance system has been approved by CQC organization. For guarantee the products’ quality, reliability and stability. All DEXIN products have been passed the testing and inspection before ship out factory. The testing and inspection scheme already covers all the Optical, Electronic and Mechanical criteria which have been published by DEXIN.
