- Page 1 TOP F OUR ST RO KE ENG INE S ROTO 35 FS OPERATING INSTRUCTIONS OPERATING INSTRUCTIONS...
-
Page 2: Table Of Contents
11. Warranty card ..........18 12. Contact / technical support Please check the updates of the operating instructions on the website www.rotomotor.cz so that your engine always has the best care. VERSION 2.6/ENG... -
Page 3: Introduction
Operating instructions ROTO 35 FS ROTOmotor Ltd., Czech Republic - Europe ROTOmotor Ltd., Czech Republic - Europe Thank yOu FOR chOOSing OuR pROducT FOuR-STROke engine pROduced in The czech Republic. Introduction You have purchased a new four-stroke single cylinder petrol engine that requires the first few important steps to successfully start your RC plane model . -
Page 4: Package Contents

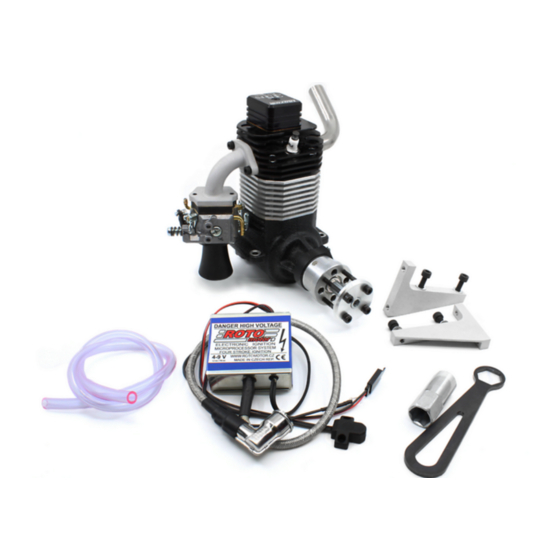

Standard package contents: ROTO 35 FS ....... . . 1 x 2. -
Page 5: Mounting
Operating instructions ROTO 35 FS ROTOmotor Ltd., Czech Republic - Europe ROTOmotor Ltd., Czech Republic - Europe Mounting After unpacking the engine must be completed according to the following instructions: Mounting of the carburetor We screw the complete intake, including the carbu- rettor, onto the engine using two M4 screws. -
Page 6: Waste Output
Operating instructions ROTO 35 FS ROTOmotor Ltd., Czech Republic - Europe ROTOmotor Ltd., Czech Republic - Europe Waste output After completing the installation of the carburetor, we can proceed to connect the waste output. It is necessary to drain a very small amount of unburned oil from the engine, which is used to lubricate the crankcase. -
Page 7: Exhaust Pipes
Operating instructions ROTO 35 FS ROTOmotor Ltd., Czech Republic - Europe ROTOmotor Ltd., Czech Republic - Europe Exhaust pipes The third part that needs to be mounted is the exhaust pipe The exhaust pipes are made so that they can be rotated around the axis. Therefore, set the exhaust pipes to the desired position by turning and then secure by tightening the nut. -
Page 8: The Engine Mount
Operating instructions ROTO 35 FS ROTOmotor Ltd., Czech Republic - Europe ROTOmotor Ltd., Czech Republic - Europe The engine mount For mounting the engine inside the model airplane,we recommend using 5mm high strength steel bolts, large flat washers and lock nuts. - Page 9 Operating instructions ROTO 35 FS ROTOmotor Ltd., Czech Republic - Europe ROTOmotor Ltd., Czech Republic - Europe Direction of rotation of the propeller / Engine Check the tightening of the propeller often, especially at beginning, when the propeller is new! Loose screws will cause the screws cuts to, exposing you to the risk of injury as well as damage to your model.
-
Page 10: Ignition
Operating instructions ROTO 35 FS ROTOmotor Ltd., Czech Republic - Europe ROTOmotor Ltd., Czech Republic - Europe Ignition Ignition installation Ignition installation is an integral part of installing an engine in an aircraft. Place the ignition in a suitable place where there is no risk of excessive heat from the cylinder heads or the exhaust system. -
Page 11: Engine Lubrication
Failure to follow the recommended oil types will void your warranty. ! DANGER OF ENGINE DAMAGE! Metric system Imperial system Fuel Fuel 2.56 5.12 7.68 10.24 12.8 15.36 Information about our network of dealers at info@rotomotor.cz ROTOmotor manufacturer of top four-stroke engines Page:11... -
Page 12: Settings
If you have no experience with this type of engine adjustment: Pack the engine and send it for adjustment to your specialist garage, where the engine will be adjusted for you. Ask by email at the manufacturer at techinfo@rotomotor.cz ROTOmotor manufacturer of top four-stroke engines Page:12... - Page 13 If you have no experience with this type of engine adjustment: Pack the engine and send it for adjustment to your specialist garage, where the engine will be adjusted for you. Ask the manufacturer by email at techinfo@rotomotor.cz ROTOmotor manufacturer of top four-stroke engines Page:13...
-
Page 14: Carburetor Settings
Operating instructions ROTO 35 FS ROTOmotor Ltd., Czech Republic - Europe ROTOmotor Ltd., Czech Republic - Europe Carburetor settings The carburetor is factory adjusted and should NOT need an adjustment before a first flight. Should you wish to adjust the carburetor after the Run-in period and fine tune it to the prop of your choice, please use the following procedure. -
Page 15: Starting The Engine
Operating instructions ROTO 35 FS ROTOmotor Ltd., Czech Republic - Europe ROTOmotor Ltd., Czech Republic - Europe Starting the engine Remember to check the correct function of the on-board system before each start by testing the range of the transmitter. -
Page 16: Spare Parts
Operating instructions ROTO 35 FS ROTOmotor Ltd., Czech Republic - Europe ROTOmotor Ltd., Czech Republic - Europe Spare parts 03-0019N ..........Tappet rod 03-0041 . -
Page 17: Accessories
Operating instructions ROTO 35 FS ROTOmotor Ltd., Czech Republic - Europe ROTOmotor Ltd., Czech Republic - Europe N0011 ..........Spark plug CM6 N0017 . -
Page 18: Warranty Card
Operating instructions ROTO 35 FS ROTOmotor Ltd., Czech Republic - Europe ROTOmotor Ltd., Czech Republic - Europe Warranty card Name of a product: Type: Serial number: Date of purchase: Dealer’s name, address: Stamp: ROTOmotor manufacturer of top four-stroke engines Page:18... - Page 19 Warranty repairs are performed only by the manufacturer ROTOmotor accepts no liability for injuries, damage to health or property, when using the en- gine in violation of the operating instructions manual, the use of common safety principles for the use of the combustion engine and its accessories.
