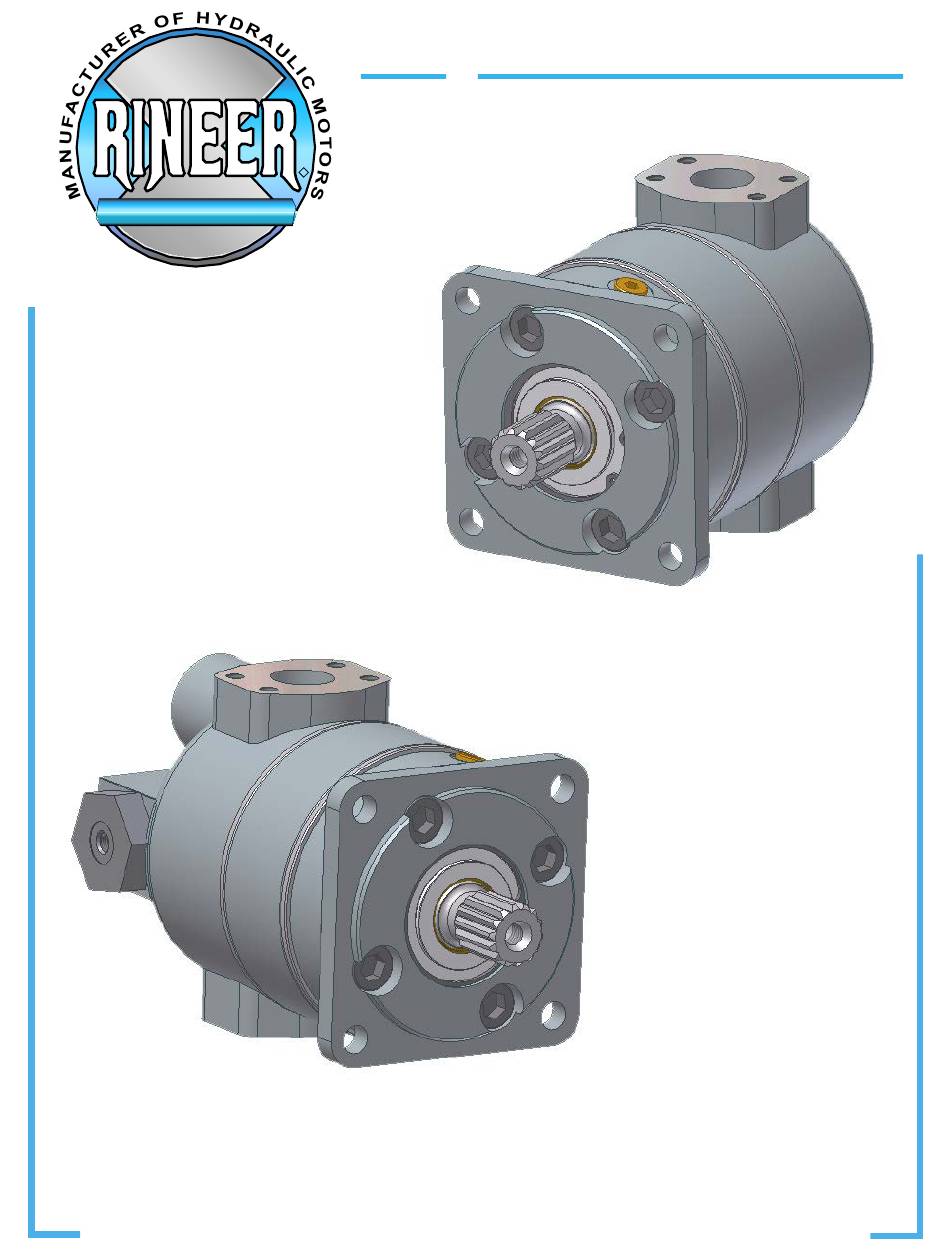

- Page 1 Repair Manual 15 Series HYDRAULICS, INC. HYDRAULICS, INC. Standard Motor Two Speed Motor 331 BREESPORT * SAN ANTONIO, TX 78216 * (210) 341-6333 FAX (210) 341-1231...
- Page 6 WARNING: RINEER RECOMMENDS FOLLOWING ALL STANDARD SHOP SAFETY PRACTICES SPECIFICALLY INCLUDING WEARING OF EYE PROTECTION. REMOVAL OF SHAFT SEAL 1) Two of the 3/8" bolt holes are provided with jack screw threads. 1) Remove snap ring 2) Insert a piece of 1/4"...
- Page 7 WARNING: RINEER RECOMMENDS FOLLOWING ALL STANDARD SHOP SAFETY PRACTICES SPECIFICALLY INCLUDING WEARING OF EYE PROTECTION. DISASSEMBLY OF FRONT DISASSEMBLY OF ROTOR/STATOR HOUSING AND SHAFT CARTRIDGE 1) Mark one side of the Lift up rotor/stator cartridge motor for proper assembly, and remove from the rear paying careful attention housing.
- Page 8 WARNING: RINEER RECOMMENDS FOLLOWING ALL STANDARD SHOP SAFETY PRACTICES SPECIFICALLY INCLUDING WEARING OF EYE PROTECTION. PLATES: Normal wear 1) Remove the rotor. results in marking of timing 2) Remove both the rotor plates which does not and stator vanes. impair motor performance.
- Page 9 WARNING: RINEER RECOMMENDS FOLLOWING ALL STANDARD SHOP SAFETY PRACTICES SPECIFICALLY INCLUDING WEARING OF EYE PROTECTION. ASSEMBLY OF ROTOR/STATOR ASSEMBLY OF WHEEL MOTOR CARTRIDGE FRONT HOUSING 1) Reverse the procedures in 1) Reverse the procedures steps 8 thru 3. in steps 17, 16, 15, and 14...
- Page 10 WARNING: RINEER RECOMMENDS FOLLOWING ALL STANDARD SHOP SAFETY PRACTICES SPECIFICALLY INCLUDING WEARING OF EYE PROTECTION. 1) Rotate shaft in both 1) Install dowel pins into directions to assure that the rotor/stator cartridge. shaft turns smoothly. 2) Pour a small amount of 2) Torque motor to 190 ft./lbs.
- Page 11 Information: Bolt Torque - Seal Kits: Main Bolts (5/8-11): 190 ft. lbs. Standard 15 series seal kit Seal Plate (3/8-16) #0150940 (Wheel Motor only): 45 ft. lbs. Standard 15 two speed seal kit Grease used for bolt threads #0150940 and o-ring retention:...
