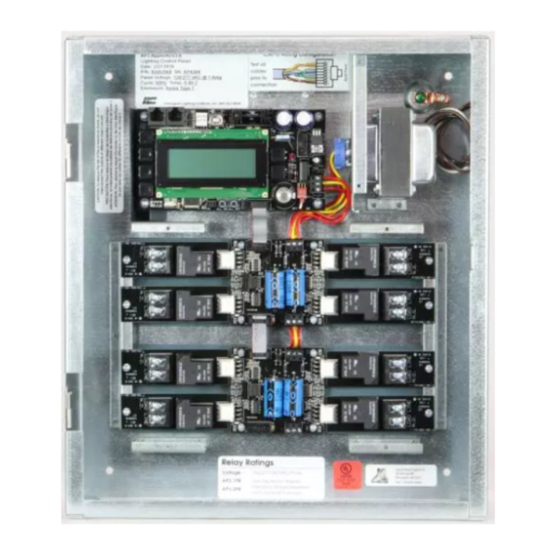

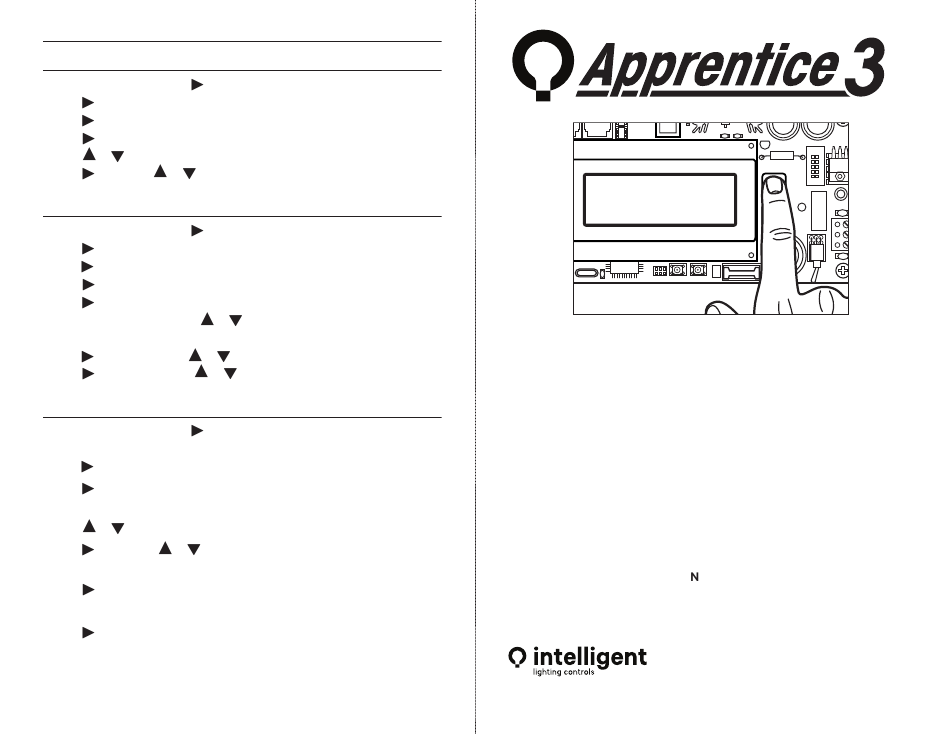

Intelligent Lighting Controls Apprentice 3 Quick Reference Manual

Programming a Switch

Select the Switch Input and Type

1. From the Home screen, press EDIT.
2. Press SWITCH INPUT.
3. Press LOCAL INPUTS.
4. Press SWITCH INPUT OPTIONS.
5. Press or to select the desired switch input number.
6. Press TYPE; then or until the desired switch type appears on the screen.

Map the Switch to a Relay

1. From the Home screen, press EDIT.
2. Press SWITCH INPUT.
3. Press to select LOCAL INPUTS.
4. Press INPUT/RELAY CONTROL.
5. Press INPUT/SINGLE RELAYS.
6. INPUT is displayed; then press or
until the controlling input you want appears.
7. Press RELAY; then press or
8. Press ACTION; then press or

Define a Relay Group

1. From the Home screen, press EDIT.
2. When the MAIN menu appears,
press RELAY OUTPUTS.
3. Press RELAY GROUPING
4. When the Relay Grouping screen appears,
press or to select the relay group number.
5. Press RELAY then or until the first relay to be part of the group
appears.
6. Press INCLUDE until YES appears in the entry field.
7. Repeat steps 5 and 6 to include additional relays.
8. Press EXIT 3 times to return to the Home screen.
Map a Switch to a Relay Group as you would a Single Relay by choosing
INPUT/RELAY GROUPS in the mapping example above.
until the relay to be controlled appears.
until the desired relay response appears.
ILC APPRENTICE 3
MON 08/07/17
04:19:44 PM
EDIT (C) 2017 ILC
A L L O N A L L O F F
Quick Reference
Guide
This Quick Reference Guide will aid you with some of the
common situations you will encounter in programming your
ILC Apprentice 3 lighting controller. If you have not already done
so, clear all memory and set up the controller before entering
any programming. For further information or to address specific
features, please reference the Apprentice 3 User Guide (available for
download from our web site) or contact a factory representative.
We hope you enjoy the flexibility, ease of use, and reliability the ILC
Apprentice 3 controller brings to your lighting control.
Turn power to the controller O via the toggle switch located to the
lower right of the processor board.
Version 3 9/19 ILC # PM-I-905
7 7 0 1 3 4 6 6 A
P O W E R
8VAC
C
8VAC
O F F O N
www.ilc-usa.com
5229 Edina Industrial Boulevard
Minneapolis. Minnesota 55439
Phone 952 829 1900
