- Page 1 Zebra Dazzle Sump Level Controller ™ ™ MANUAL INSTALLATION AND OPERATION SKIMMERS zebraskimmers.com If you have questions or require product support, please call 888.249.4855.
-
Page 2: Table Of Contents
Chapter 1. Introduction ........................1 Limited Warranty Information ............................. 1 Contacting Customer Support ............................ 1 Chapter 2. Dazzle Sump Controller Unit ....................2 Operating Specifications ............................... 2 Mounting the Level Sensor and Solenoid Valve ....................3 Checking the Sump Level Sensor ..........................4 LEDs when the Sensor is Working Correctly .................... -
Page 3: Chapter 1. Introduction
CHAPTER 1. INTRODUCTION Limited Warranty Information The Zebra Dazzle 1 Sump Controller unit is warranted for one year from date of purchase against manufacturing or material defects, except for disposable elements. Individual warranties may apply to third-party components, above and beyond this expressed warranty. This warranty will be void, in full or in part, for any use not in keeping with general safe operating procedures or any of those principles outlined in this manual. -
Page 4: Chapter 2. Dazzle Sump Controller Unit

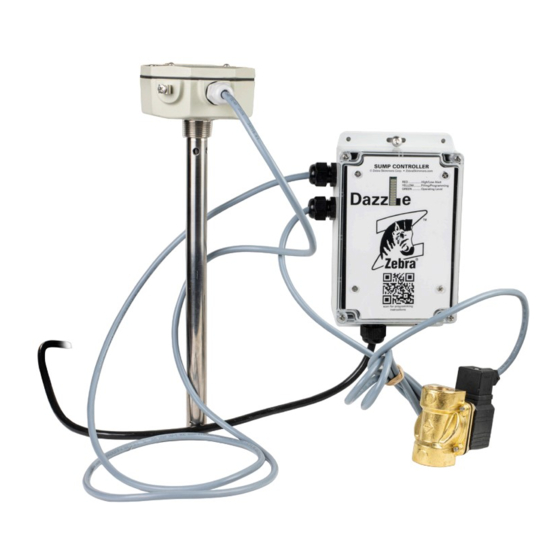

Zebra™ Dazzle™ Sump Level Controller CHAPTER 2. DAZZLE SUMP CONTROLLER UNIT The Dazzle sump level controller is a programmable system that continuously maintains sump levels at optimal field-defined set points (within centimeters) preventing overflows and putting an end to bucket brigades. It is available in sizes to fit all sumps. -
Page 5: Mounting The Level Sensor And Solenoid Valve
Zebra™ Dazzle™ Sump Level Controller Mounting the Level Sensor and Solenoid Valve Mount the Sump Controller unit so that the programming button (shown in Figure 1) is located at the bottom of the unit and the unit is level. Screws or bolts can be used to secure the enclosure through the mounting holes on the top and bottom flanges. -
Page 6: Checking The Sump Level Sensor
Zebra™ Dazzle™ Sump Level Controller Checking the Sump Level Sensor To verify that the Sump Level sensor (item #2 in Figure 2) is working properly, plug the power cord (item #6 in Figure 2) into a power outlet. The LEDs will let you know if the sensor is working properly. -
Page 7: Sump Level Sensor Wiring
Zebra™ Dazzle™ Sump Level Controller Sump Level Sensor Wiring When the LEDs on the Sump Controller unit flash red, check the Sump Level sensor’s wiring by performing the following steps and referring to Figure 6. 1. Remove the cover from the Sump Level sensor. -
Page 8: Sump Levels
Zebra™ Dazzle™ Sump Level Controller Sump Levels Setup the Sump Controller unit so it can identify two sump levels: High level and Low level. They are described below. • High level Level of fluid in the sump when all machines and attachments that can impact the sump level are TURNED OFF. -
Page 9: Leds Defined
Zebra™ Dazzle™ Sump Level Controller LEDs Defined While the Sump Controller unit is running, you might see the colors of the LEDs change. The list below defines the colors and the LED patterns. GREEN The sump controller is at Low level... -
Page 10: Programming The Sump Controller Unit
Zebra™ Dazzle™ Sump Level Controller Programming the Sump Controller Unit Perform the following steps to set the Sump Controller unit to Operating mode. 1. Press and hold the programming button until the unit beeps once. Release the button. The lower 8 LEDs are yellow. -
Page 11: Alarms
Zebra™ Dazzle™ Sump Level Controller NOTE: If the Sump Controller unit is programmed incorrectly, the LEDs flash red. Return to Step 1. Figure 11. Unit programmed incorrectly Alarms If an alarm sounds during normal operation, the Sump Controller unit requires immediate attention. -
Page 12: Contacting Customer Support
If you have difficulty assembling this product or have any questions regarding the installation or op- eration of the Sump Controller unit, please call the Dazzle hot line at 440-528-0681 or 888-249-4855. For the latest details about Zebra products, installation videos and FAQs, visit our website at www.zebraskimmers.com.
