Phoenix Sandia Assembly Instructions

Warning: Handle with care. The fire pit is comprised of machined metal parts, some edges may be sharp.

Package Includes: Base (3 Tripod Segments), Ash Hammock, Fire Bowl (3 Diamond Segments), Grate, Fire Ring (6 Segments)

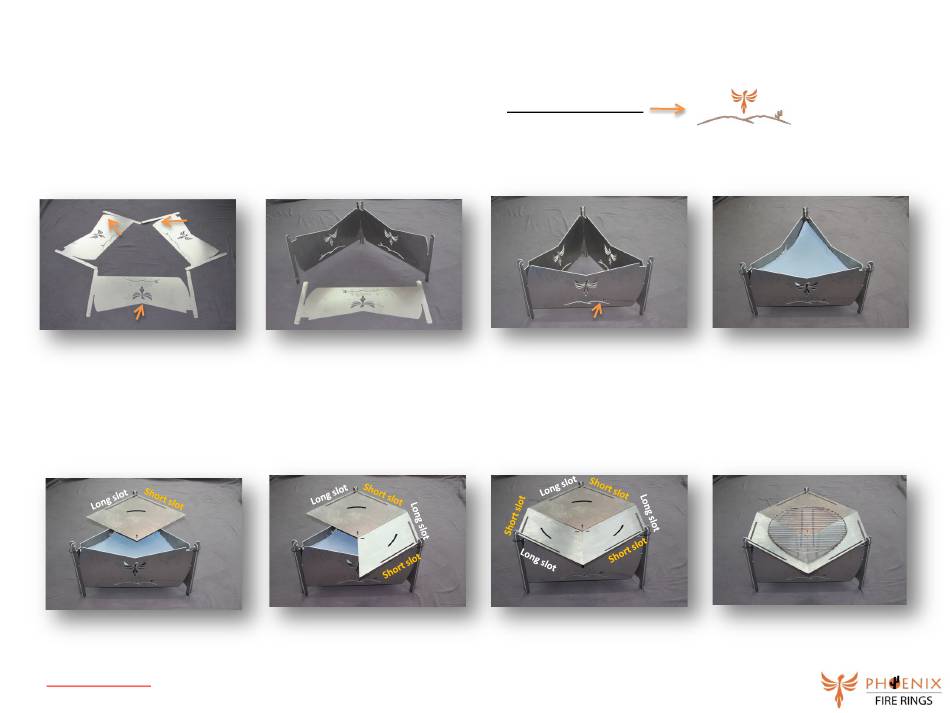

Step 1: Assemble the Base: Align segments with Phoenix Bird facing up and Cactus to bottom right

A. Layout Tripod sections aligning large slots to small slots.

B. Hold 2 segments upright with cactus to bottom right of Phoenix Bird from outside view (see Fig. C). Slide large slot down over small slot until firmly

connected at base.

C. Connect third segment using same directions as in "B" until tripod is connected firmly at base.

D. With Teflon side facing up, place each loop of the Ash Hammock over the corners of the Tripod.

Large slot

Small slot

Vertex

Step 2: Assemble the Fire Bowl: Align small hole to center and Long slot on left when placing each diamond on the Tripod

Slide the corner of one Fire Bowl diamond into the corner of the Tripod and align the edges with the Vertex (see Fig. A).

With the next Fire Bowl diamond facing the same direction (small hole in middle, long & short outer slots in same clockwise direction), slide the corner

of the second Fire Bowl diamond into the corner of the Tripod and align with the support vertex and the previously installed bowl diamond.

G. Repeat for third section of Fire Bowl.

H. Place the Wood/Charcoal grate on the Fire Bowl, aligning the outer edge with the curved slots in the fire bowl diamonds.

** It is very important the longer slots are all facing the same clockwise direction to ensure fit of Fire Ring in these slots.

** When disassembling the Fire Bowl after use, simply dump ashes from each segment of the Fire Bowl into Ash Hammock. Then pickup corners of the Ash

Hammock and dump into a garbage can. You can then wipe off the Teflon Ash Hammock with a damp cloth. Use water, if necessary, to ensure that all

embers have been extinguished.
