Ozark Trail W947.REC Assembly Instructions

ASSEMBLY INSTRUCTIONS

SAFETY WARNING

EVERYONE WHO USES THIS SHELTER SHOULD READ THIS AND BECOME
FAMILIAR WITH ALL SAFETY WARNINGS AND PRECAUTIONS FOR SAFE USE.
DANGER
CARBON MONOXIDE GAS WILL KILL YOU
Stoves, heaters, grills, lanterns, candles, and other fuel-burning devices
that burn propane, natural gas, charcoal, kerosene, coal, or other fuels
produce a toxic gas called carbon monoxide. Because carbon monoxide
gas is invisible, odorless, and colorless, a dangerous level of carbon
monoxide gas can accumulate in a shelter which cannot be detected
by sight, smell or taste. For these reasons:
•
DO NOT use matches, lighters, stoves, heaters, grills, lanterns, candles,
cooking equipment, or other fuel-burning devices inside or near a shelter.
•
DO NOT build res inside or near a shelter.
•
DO NOT leave camp res unattended.
Your failure to follow this warning will cause death, serious injury, or
permanent disability to you or others.
DANGER
PROTECT YOUR CHILDREN
•
DO NOT leave children unattended inside a shelter or in camp.
•
DO NOT allow children to assemble a shelter.
•
DO NOT allow children to enter or exit a shelter except through the door.
•
DO NOT allow children to remain in a closed-up tent on hot days.
Your failure to follow this warning will cause death, serious injury, or
permanent disability to your children.
Step 1
Spread out tent. Pull oor out evenly and tightly and stake to the
ground. Hammer stakes in at a 45 degree angle.
45 0
angle.
WARNING
FLAMMABILITY WARNING KEEP ALL FLAME AND HEAT SOURCES AWAY
FROM THIS SHELTER FABRIC. This shelter is made with ame resistant
fabric which meets CPAI-84 speci cation. IT IS NOT FIREPROOF. The fabric
will burn if left in continuous contact with any ame source. The application
of any foreign substance to the shelter fabric may render the ame-resistant
properties ine ective. Your failure to follow this warning will cause death,
serious injury, or permanent disability to you or others.
DO NOT...
1. Do not use other than recommended water repellent compounds
on your shelter.
2. Do not spray the shelter with insecticide.
3. Do not store shelter on concrete oor.
DO...
1. Always extinguish camp re before leaving area.
2. Exercise care when using electricity and lighting in and near shelter.
3. Make certain your shelter is properly ventilated in all weather conditions.
In extreme weather conditions, snow could obstruct air ow and cause
asphyxiation unless cleared frequently.
4. Anchor your shelter securely to provide additional security from
changing climatic conditions.
Step 2
Extend the poles and lay the two longer poles across the tent forming an X.
A
B
A
A
For additional set up help, please refer to our Assembly Video on Walmart.com.

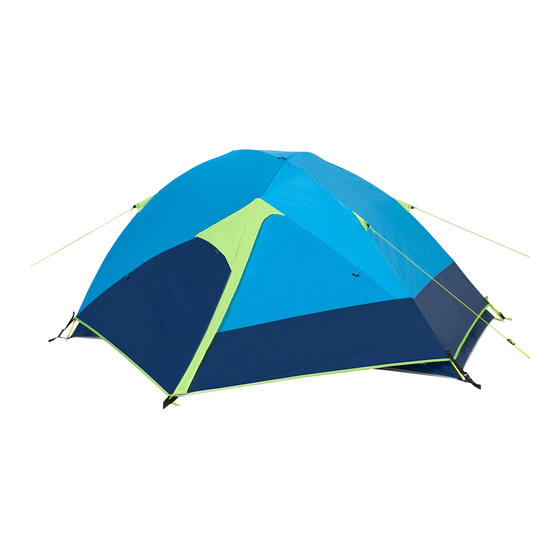

MODEL W947.REC, 2P Hiker Tent

Verify Package contents

NO. DESCRIPTION PART NO. QTY
Main Pole W947RM
A
B Ridge Pole W947RR
Complete Frame W947RST
Guy Rope A1001
Steel Stake PIN STAKE

REPLACEMENT PARTS

If you have questions or need to order a part, call 1-800-325-4121
or send an email to contactus@wenzelco.com. Have your model
number or part number ready when you call.
Step 3
Flex poles and insert into grommets.
2
Please do NOT
return product
1
to store. Call us
1
at1-800-325-4121
for assistance.
4
10
