INTRODUCTION

Thank you for choosing a Tecatlantis product.
This product and all of its components and accessories underwent multiple testing to ensure their quality and functionality.
Before installation, ensure that all of the components of this product are available and undamaged.
For more information, visit our website www.aquatlantis.com.

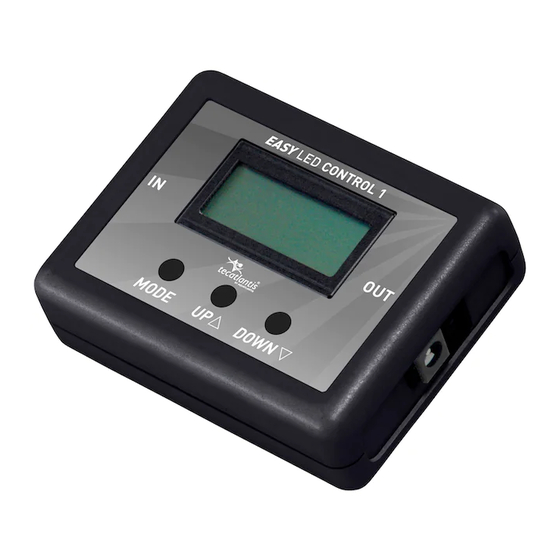

EASY LED CONTROL

Connect the OUTput of the power supply on the INput of the controller and the terminal of the EASY LED on the OUTput of the controller.
The LCD display of the controller shows the time. Perform the following steps to setup:

Pressing the "MODE" button, the display shows "SET TIME". Set the hour using the "UP" and "DOWN" keys. Press the "MODE" button again and set the minutes.
Always proceed this way on the following steps – pressing the "MODE" button after each operation.
The display shows "ON 1". Set the hour to turn on the program 1. Set the minutes.
The display shows "OFF 1". Set the hour to turn off the program 1. Set the minutes.
The display shows "ON 2". Set the hour to turn on the program 2. Set the minutes. If you do not want a second program, leave the clock to zeros (00:00).
The display shows "OFF 2". Set the hour to turn off the program 2. Set the minutes. If you do not want a second program, leave the clock to zeros (00:00).
"SET END" indicates that the programming has been completed.

At the scheduled time, the light tube switches on gradually, reaching its maximum intensity after an hour. In the same way that it will gradually reduce the intensity before it gets completely turned off, after an hour.

In case of interruption of the power supply and the battery being properly operating, the controller configuration is safeguarded. Once the connection is restored, the light unit turns back on gradually.

The battery must be a lithium, rechargeable and LIR2032 3.6V.
Use only rechargeable lithium batteries.
When the controller is running, it will charge the battery. Using a non-rechargeable battery, can lead serious problems, such as fluid leaks, fire or explosion hazard.
Disconnect the controller from the outlet if is not being used. If not, the controller continues operating, which means that the tension in the circuit is higher than in normal operation. In the long run, this extra tension may damage the components.

Warranty

Aquatlantis guarantees the filter within the limits of the present clause and of the current legal regulation. This warranty is applied for 24 months from purchase only against any manufacturing faults. No compensation for any damage or loss will be granted. Any damage that occurs due to a misuse of the product or any of its parts invalidates the warranty. The returning cost of the faulty product is to be borne by the purchaser. In case of claiming your rights under the warranty, take the faulty product to the shop along with this certificate duly completed and the purchase receipt.
