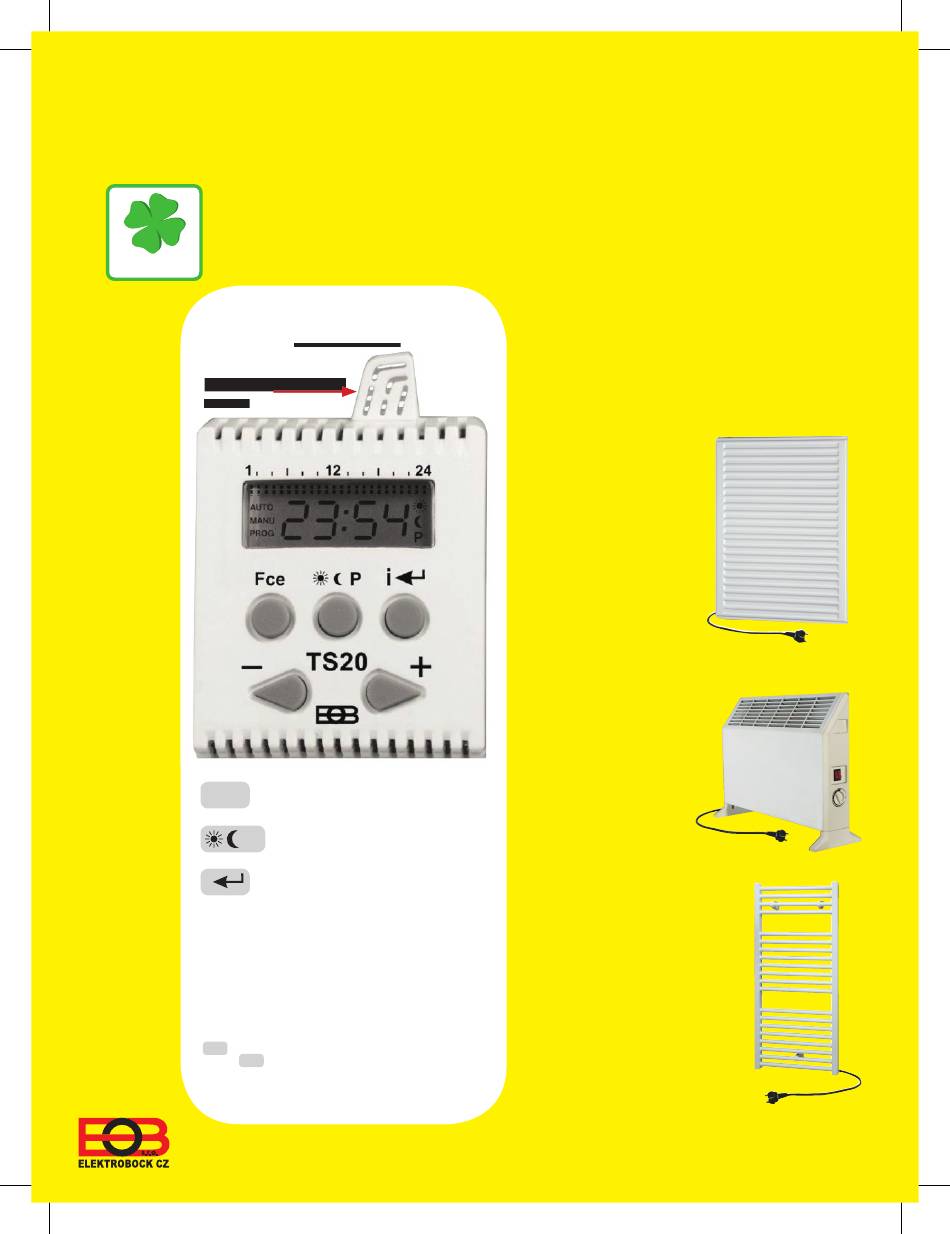

THERMOSWITCH
ECO
Design
DESCRIPTION OF
CONTROLS
CONTROLS
build-in temperature
build-in temperature
sensor
sensor
Fce
= selection of functions
= selection of temperatures
P
i
= confi rmation (ENTER),
information on required
temperature (PO:t),
present time/temperature
(CL:O/tE:P), sum of
operating hours (SU:MA),
and day (dE:n)
-
= setting of
/
+
temperature,time,
functions
Temperature regulation of connected appliance
SOCKET
TS20
Utilization examples:
electric
heating
plates
direct
heating
bodies
electric
tubular
radiators
Advertisement
Table of Contents
Summary of Contents for EOB TS20
- Page 1 THERMOSWITCH SOCKET TS20 Design DESCRIPTION OF CONTROLS CONTROLS Utilization examples: build-in temperature build-in temperature sensor sensor electric heating plates direct heating = selection of functions bodies = selection of temperatures = confi rmation (ENTER), information on required temperature (PO:t), present time/temperature...
- Page 2 The activation of the buttons you can make by pressing the button. If the TS20 is not in 230V-socket the showed temperature is 2 °C lower than real actual temperature. 1. FUNCTIONS OF TS20...
- Page 3 2. PROCEED DURING PROGRAMMING Before the programming itself, it is necessary to set present day, time and parameters (constants), namely in following way. Setting of current day and time - “ CLO “ function Press the button, by pressing select CLO (CLOCK) function and confirm by .
- Page 4 ACTIVATEd time. • The TS20 find out the thermal paramters of the room and the heating will be switch-on ahead of time accordingly. • for activating of this function select with...
- Page 5 • Use the same procedure for the setting of further time intervals (max. 6). Leave the programming regime by pressing button. • Select AUTO function, TS20 starts to work according to the program set. Status indication of TS20: AUTO (or MANU) is shown = output is switched on...
- Page 6 Short-term change of temperature in AUTO mode: By simple pressing of buttons in AUTO mode, it is possible to make a shortterm change of required temperature. TS20 will maintain this temperature up to next temperature change as defined in the program.
- Page 7 Antifreeze protection If the room temperature drops under 3 °C, TS20 switch on automatic the connected device. As soon as the temperature rise over 3 °C the TS20 comes back to the preset mode. “ OFF “ function: Press the...

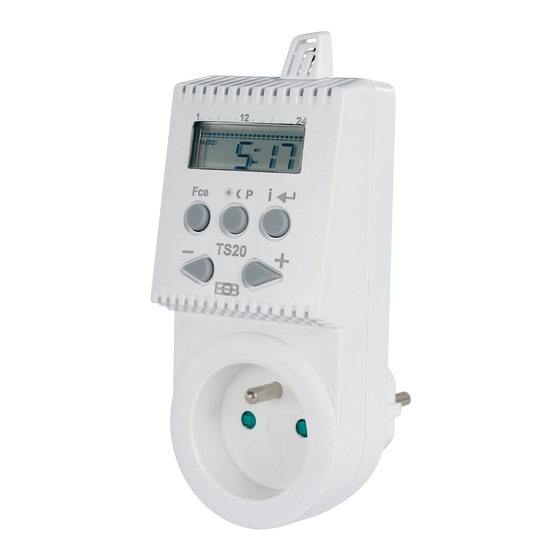

- Page 8 THERMO-SWITCH SOCKET TS20 TS20 is a digitally switched socket for automatic regulation of electrical heating systems (direct heating bodies, towel driers, fi res) in family houses, fl ats,offi ces. Up to six time intervals with three temperature levels can be set for each day.
