Summary of Contents for AVID HIFI DIVA II SP

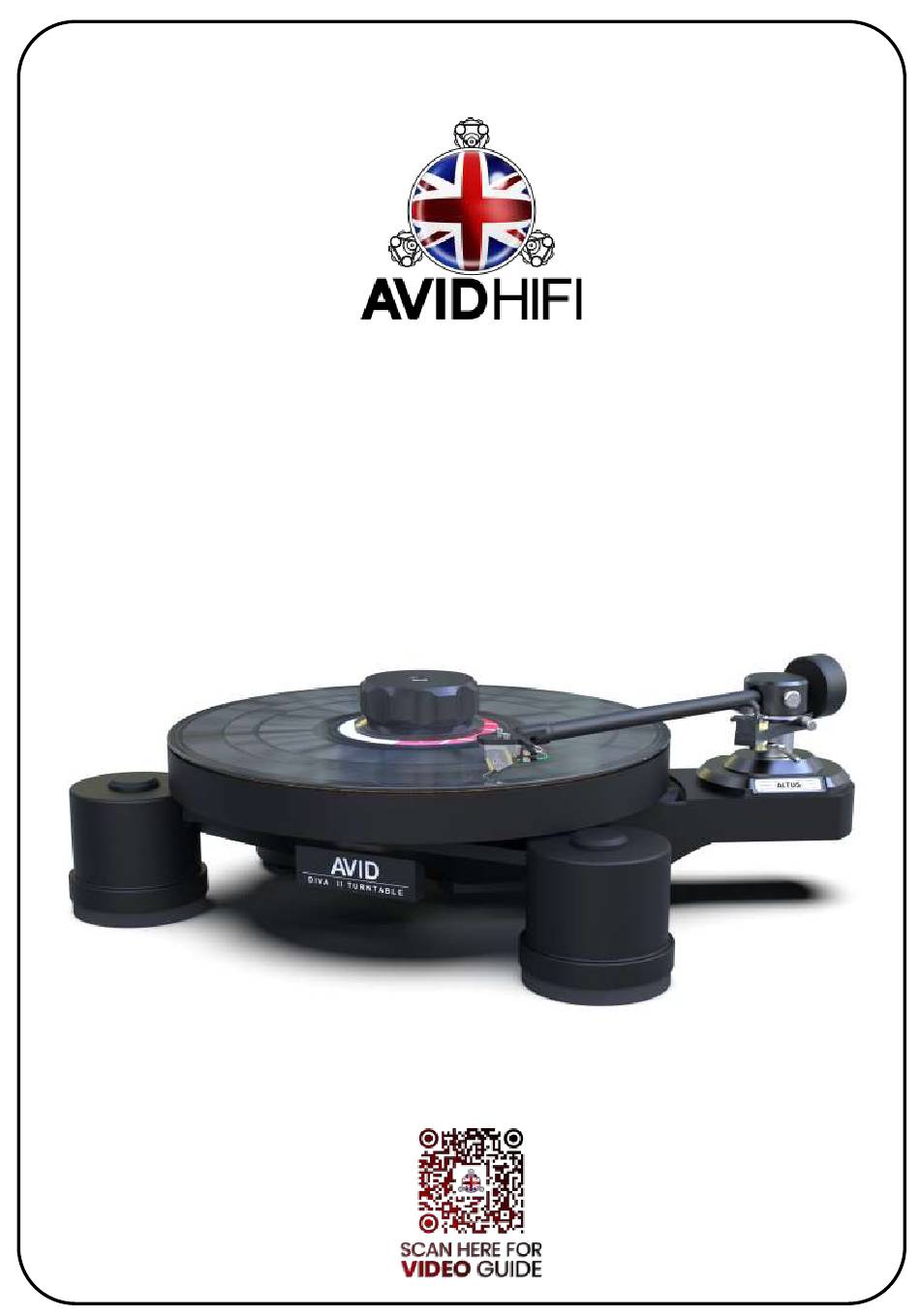

- Page 1 DIVA II SP USER MANUAL...
-
Page 3: Table Of Contents
Table of Contents Section Page Preface Introduction Warning Packaging Parts Checklist Set-up Instructions Power Supply Options Servicing Cleaning Specifications Warranty-Terms and Conditions WARNING YOU MUST ALWAYS REMOVE THE PLATTER AND BEARING AND USE THE TRANSIT PACKAGING WHEN YOU TRANSPORT YOUR TURNTABLE OR YOU MAY DAMAGE THE BEARING “... -
Page 4: Preface
Introduction The Diva II SP is an audio turntable manufactured to extreme limits of precision, design and detail. There are many unique and novel features in this product and its design allows you to install the pick-up arm and cartridge of your choice. -
Page 5: Set-Up Instructions
Set Up Instructions The supplied packaging is vital for protection and shipping. It should be retained as replacement packaging is costly. The packaging is layered with each part having a suitable compartment. Make sure it is fitted correctly to avoid damage. LAYER 1: Clamp, Bearing and Power Supply First, remove the Power Supply to prevent it inadvertently dropping and... - Page 6 CAREFULLY LOWER THE MAIN BEARING ONTO THE SPINDLE Take special care not to not drop or bang the onto the shaft, otherwise you will damage the sapphire, which is not covered by warranty. The bearing will lower quickly due to the air pressure release hole. NEVER ADD ADDITIONAL BEARING LUBRICATION When positioning the turntable for use, it is recommended to place it on a firm, even surface such as an audio equipment rack or wall...
- Page 7 Rotate the platter so the belts align with the grooves of the drive pulley. WATCH OUR BELT FITTING VIDEO Now, with your finger, hold the drive belts against the platter underside rim and pull out the fitting pin and simply let go of the drive belts DO NOT SWITCH THE TURNTABLE ON Now fit the clamp and manually rotate the platter SLOWLY by hand to align the drive belts correctly, otherwise the lower belt will fall off if you...
-
Page 8: Power Supply Options
Power Supply The Diva II SP Power Supply is purpose designed and individually calibrated to the powerful motor used. You should have no reason to open the power supply and tamper with anything within. Doing so invalidates any warranty, reduces sound quality and will possibly cause damage. -
Page 9: Specifications
AVID reserves the right to improve or change its products without notice at any time. EC DECLARATION OF CONFORMITY We the Manufacturer, AVID HIFI Limited Bicton Ind. Park, Kimbolton, Cambridgeshire. PE28 0LW (UK) TEL: +44 (0)1480 869900 / Email: info@avidhifi.co.uk / Web: www.avidhifi.com... - Page 10 UK Residents AVID HIFI Limited products are warranted against defects in materials and workmanship for a period of two years from the original date of purchase, or no later than three years from the date of shipment to an authorized AVID agent, which ever comes first, extending to five years subject to the product owner having submitted the Registration form www.avidhifi.com/register...
- Page 12 AVID HIFI Ltd Bicton Industrial Park, Kimbolton, Huntingdon, Cambridgeshire. PE28 0LW ENGLAND Tel: +44(0)1480 869 900 — Website: www.avidhifi.com - Email: info@avidhifi.co.uk Company Registered No: 05435528 — VAT Registration No: GB 694 9858 48 — Directors: C. Mas & S.J. Mas...
